Ford XR6 Turbo Barra Rebuild Kit with Spool H Beam Conrods and CP Bullet Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool Ford XR6 Turbo Rebuild Kit with CP Bullet Forged Pistons
These CP Bullet pistons are rated at up to 1000hp
Available in:
- Bore: +0.5mm, +0.25mm, and *STD
- Comp Ratio: 9.0:1

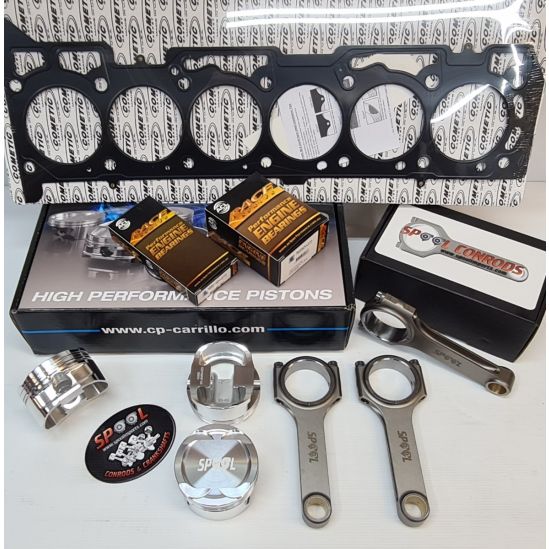

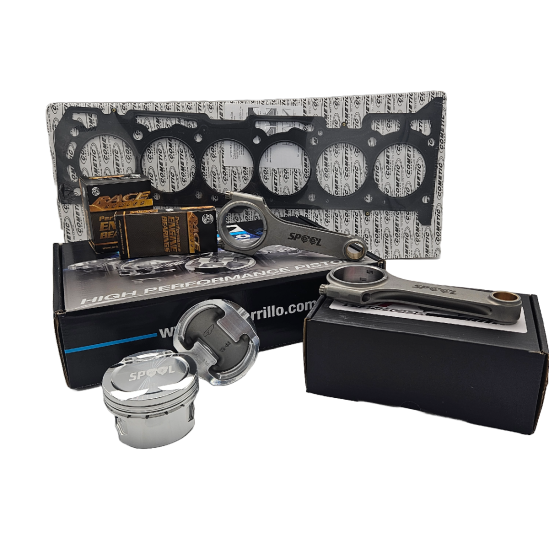

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- CP Bullet Forged Pistons with 4 x Valve Reliefs (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
These Spool CP Bullet Pistons feature:
- 2618 Forged Alloy
- Offset Gudgeon Pin
- 4 x Valve Pockets
- 0.200†51 pins STD
- Upgraded 0.200†and 0.250†9310 pins are available when adding to cart.
- Includes piston rings, pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Please Note:
*STD bore size pistons are not recommended in a used bore for any performance engine unless the bores have done minimal work with minimal wear and the correct piston to bore clearance can be adhered to.
All piston manufacturers have a specific piston to bore clearance that they recommend. If STD bore pistons are requested and there is a piston to bore clearance issue we will not exchange or refund, due to the reasons given above.
| Product Name | Ford XR6 Turbo Barra Rebuild Kit with Spool H Beam Conrods and CP Bullet Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the CP Bullet forged pistons in this kit?
For the CP Bullet forged pistons, the recommended bore clearance varies based on the specific application and piston size. It is crucial to follow the manufacturer's specifications for piston to bore clearance to ensure optimal performance and reliability. Typically, a clearance of 0.0025" to 0.0035" is common for performance applications.
Can I use STD bore size pistons in a worn engine block?
Using STD bore size pistons in a worn engine block is not recommended unless the bores have minimal wear and can maintain the correct piston to bore clearance. If there are clearance issues with STD pistons, Spool will not accept exchanges or refunds due to the potential for performance issues.
What is the maximum power rating for the CP Bullet pistons included in this kit?
The CP Bullet pistons are rated for up to 1000hp, but achieving this level of power reliably depends on proper machining, tuning, fuel quality, boost levels, and RPM. Ensure that all components in the engine are compatible and properly set up to reach desired performance levels.
What are the torque specifications for the ARP2000 bolts included with the conrods?
The ARP2000 bolts included with the Spool H Beam conrods should be torqued to approximately 55 ft-lb for 3/8" bolts using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate specifications.
Is line boring necessary after installing the main caps and girdles?
Yes, line boring is often necessary after installing main caps and girdles to ensure proper alignment and clearance. This step is critical for maintaining the integrity of the engine's rotating assembly and preventing premature wear or failure.
-
