PULSAR PSR3584 Gen 3 Ford XR6 Barra Turbo

PULSAR PSR3584 Gen 3 Ford XR6 Barra Turbo

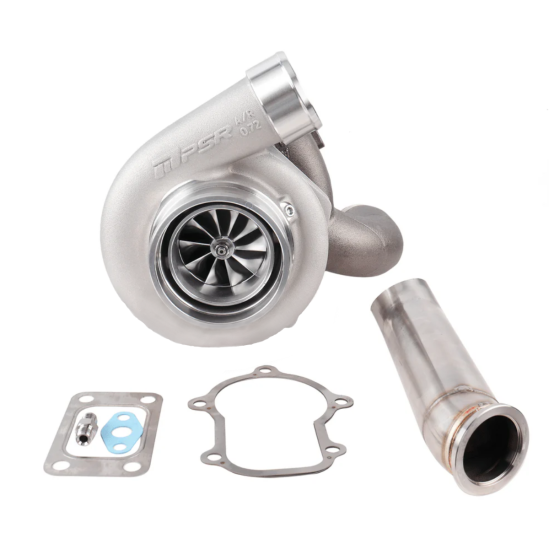

PSR3584 Gen3 Dual Ball Bearing Turbocharger External Wastegate Version for BA/BF Ford Falcon XR6

USD$1,030.91
SKU
PUL-G3-3584-TC-XR6-BA
+ -
Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

This turbocharger is designed for the BA/BF Ford Falcon XR6, offering several high-performance features:

  • Compressor Wheel: The new 10-blade billet compressor wheel provides increased airflow compared to the stock cast or Gen1 11-blade billet wheel.

  • Max Air Flow: Capable of supporting up to approximately 90 lb/min of airflow, making it suitable for engines producing up to 1000 FWHP.

  • Turbine Wheel: A larger turbine wheel is included, enhancing flow and supporting higher horsepower.

  • Ball Bearing System: The turbo utilizes a durable, rebuildable dual ceramic ball bearing system for improved reliability and reduced turbo lag.

  • Compressor Cover: Features a larger 0.72 A/R compressor cover with a 4-inch anti-surge inlet, improving airflow stability and preventing surge.

  • Billet Actuator: Comes with a billet actuator coated in black anodized finish for greater durability and precise wastegate control.

  • Gasket and Fittings: Includes a 3-layer stainless steel 5-bolt gasket for secure sealing, -6AN water ports, -4AN oil feed to the restrictor, and a standard T3 oil drain flange.

  • Compressor and Turbine Dimensions:

    • Compressor Wheel: 67.3mm (inducer) x 84.4mm (exducer), with an extended tip diameter of 87.3mm.
    • Turbine Wheel: 74mm (inducer) x 66mm (exducer) for better flow and higher horsepower potential.
  • Inlet and Outlet:

    • Compressor Inlet: 4-inch hose.
    • Compressor Outlet: 2.5-inch hose.
    • Turbine Inlet: T3 Open.
    • Turbine Outlet: 5-bolt pattern.
  • Turbine Housing: The turbine housing has a 1.06 A/R for improved flow characteristics.

  • Water and Oil Connections: Includes -6AN water ports, -4AN oil feed to the restrictor, and a standard T3 oil drain flange for compatibility.

  • Compatibility: Designed for all BA and BF Falcons, and comes as a complete turbo unit.

  • Wastegate Compatibility: This turbo is compatible with the PSR New Generation 45mm wastegate or the Turbosmart Gen V wastegate.

This turbo offers improved airflow, higher power potential, and excellent performance for BA/BF Ford Falcon XR6 owners looking for a complete and reliable upgrade.

More Information
Product Name PSR3584 Gen3 Dual Ball Bearing Turbocharger External Wastegate Version for BA/BF Ford Falcon XR6
Brands Pulsar
Engine Barra XR6
Make Ford
