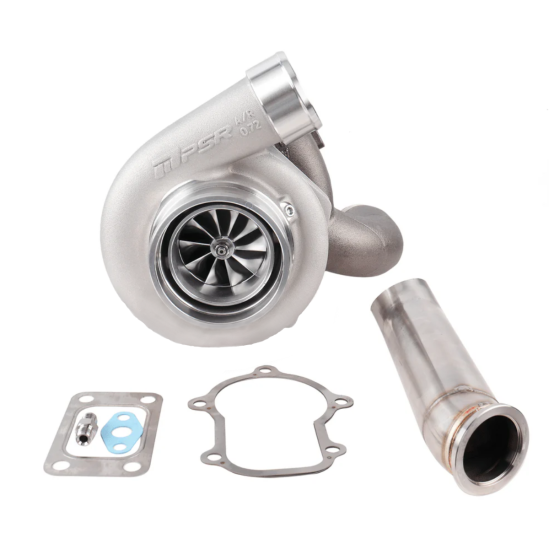

This turbocharger is specifically designed for the BA/BF Ford Falcon XR6, featuring several high-performance upgrades:
Compressor Wheel: The new 10-blade billet compressor wheel offers improved aerodynamics, delivering more airflow compared to the stock cast or Gen1 11-blade billet wheels.
Turbine Wheel: A new 9-blade aerodynamic turbine wheel is lighter, with lower inertia and enhanced flow capabilities, resulting in better overall performance.
Ball Bearing System: The turbo is equipped with a genuine dual ceramic ball bearing system that is rebuildable, offering improved durability and reduced turbo lag.
Compressor Cover: The larger 0.72 A/R compressor cover includes a 4-inch anti-surge inlet, preventing surge and optimizing airflow stability.
Billet Actuator: Features a billet actuator with a black anodized finish, ensuring precise wastegate control and long-lasting performance.
Gaskets and Fittings: Comes with a 3-layer stainless steel 5-bolt gasket for secure sealing, along with -6AN water ports, -4AN oil feed to the oil restrictor, and a standard T3 oil drain flange.
Compressor and Turbine Specifications:
Compressor Wheel: 67.3mm (inducer) x 84.4mm (exducer), with an extended tip diameter of 87.3mm.
Turbine Wheel: 68mm (inducer) x 62.3mm (exducer).
Inlet and Outlet:
Compressor Inlet: 4-inch hose.
Compressor Outlet: 2.5-inch hose.
Turbine Inlet: T3 Open.
Turbine Outlet: 5-bolt pattern.
Turbine Housing: The housing features a 33mm internal wastegate hole and a 1.06 A/R for improved flow and performance.
Water and Oil Connections: Includes -6AN water ports, -4AN oil feed to the restrictor, and a standard T3 oil drain flange for easy setup.
Compatibility: This turbo is compatible with all BA and BF Falcons and is supplied as a complete unit.
Wastegate Compatibility: The turbo works with the PSR New Generation 45mm wastegate or the Turbosmart Gen V wastegate.
This turbocharger is an ideal upgrade for BA and BF Ford Falcon XR6 owners looking to boost airflow, power, and overall performance.
More Information
Product Name
PSR3584R Gen 2 Dual Ball Bearing Turbocharger External Wastegate Version for BA/F Ford Falcon XR6
Brands
Pulsar
Engine
Barra XR6
Make
Ford
