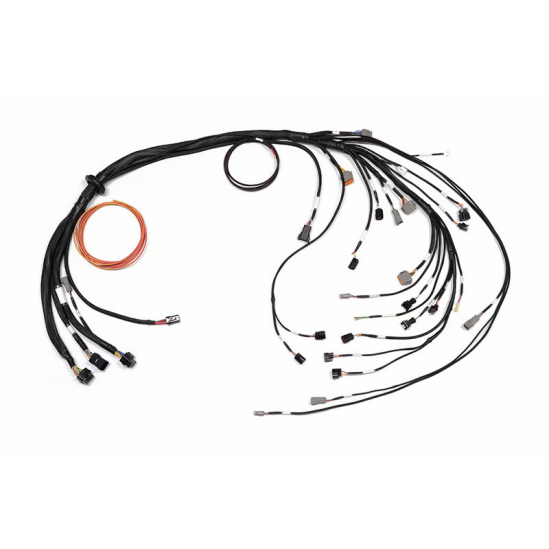

Haltech Nexus R3 Ford Barra Terminated Harness HT-186405
The Haltech Nexus R3 Terminated Engine Harness provides a professional, plug-and-play style wiring solution for installing a Nexus R3 VCU into Ford Barra BA, BF and FG applications. Designed to retain extensive OEM functionality while supporting popular aftermarket upgrades, the harness integrates factory electronic throttle, VCT, cam and crank sensors, alternator control, air conditioning and knock sensors while providing connections for wideband lambda, flex fuel, pressure sensors, boost control, thermofans, fuel pumps and Haltech CAN devices. Suitable for selected Barra 190, Barra 240T, Barra 245T and Barra 270T engines.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
- BA Series – Barra 240T (XR6 Turbo)
- BF Series – Barra 190 (NA Falcon and SY Territory) and Barra 245T (XR6 Turbo)
- FG Series – Barra 270T (XR6 Turbo)
- Crank sensor
- Intake and exhaust cam sensors
- Intake and exhaust VCT solenoid control
- BA, BF and FG electronic throttle and accelerator pedal (Drive-By-Wire)
- Dual intake runner system / Broadband throttle system
- BA, BF and FG ignition coils with appropriate sub-harness options
- BA, BF and FG 4-pin TMAP sensors
- Factory air-conditioning clutch and AC pressure switch
- 2-pin and 3-pin alternator control
- Factory knock sensors
- EV1, EV6 / USCAR or Sumitomo / Denso injector connectors
- Nissan R35 GT-R coil-on-plug ignition coils – requires the appropriate ignition bracket and aftermarket coil stalks
- Bosch LSU 4.9 wideband lambda sensor
- Flex fuel sensor
- MAP sensing using the Nexus R3 onboard 4 Bar MAP sensor
- Oil and fuel pressure sensors using Delphi 3-pin connections
- Thermofan control
- Fuel pump control
- Haltech boost control solenoid
- Haltech CAN devices including compatible dashes, keypads and IO16 expanders
- Spare inputs and outputs for additional vehicle functionality
- Main terminated engine harness
- Ford Falcon BA/BF accelerator pedal position (APP) adaptor harness
- Ford Falcon FG accelerator pedal position (APP) adaptor harness
- Ford Barra BA/BF throttle adaptor harness
- Ford Barra FG throttle adaptor harness
- Nexus 2-pin BA alternator adaptor
- Nexus 3-pin BF/FG alternator adaptor
- Cabin adaptor harness
- Opposing connectors and pins for boost control, TMAP, dual intake runner solenoid, spare inputs and outputs, and transmission breakout
| Product Name | Haltech Nexus R3 Ford Barra Terminated Harness HT-186405 |
|---|---|
| Brands | Haltech |
| Engine | Barra XR6 |
| Make | Ford |
