Ford XR6 Turbo Barra Rebuild Kit with Spool Drag Pro I Beam Conrods and CP Bullet Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool Ford XR6 Turbo Rebuild Kit with CP Bullet Forged Pistons and Drag Pro I Beams
These CP Bullet Pistons are rated at up to 1000hp
Available in:
- Bore: +0.5mm, +0.25mm, and *STD
- Comp Ratio: 9.0:1

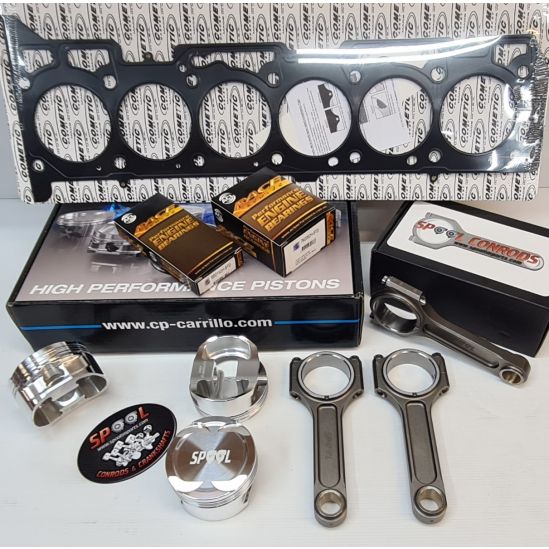

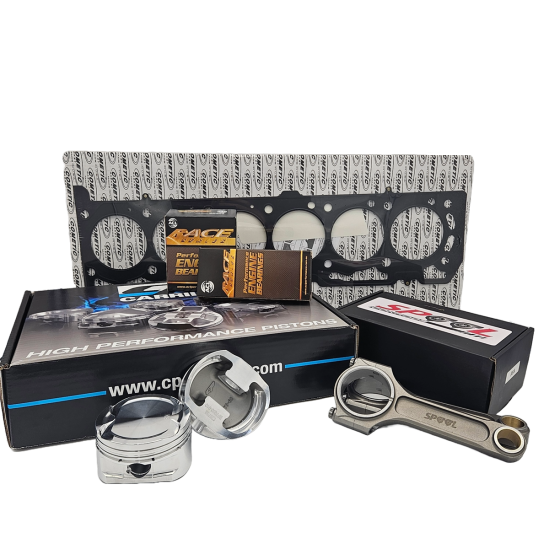

This Rebuild Kit includes the following quality parts:
- Spool Forged Drag Po I Beam Conrods with 7/16 ARP 2000 Fasteners
- CP Bullet Forged Pistons with 4 x Valve Reliefs (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
These Spool CP Bullet Pistons feature:
- 4 x Valve Pockets
- 2618 Forged Alloy
- Offset Gudgeon Pin
- 0.200” 51 pins STD
- Upgraded 0.200” and 0.250” 9310 pins are available when adding to cart.
- Includes piston rings, pins and pin locks.
Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit Conrod for all Ford XR6 Turbo engines.
With new features like:
- Upgraded ARP2000 7/16 bolts
- Increased strength to the beam
- Increased strength around the fasteners / bolts
- Increased strength around the gudgeon pin
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Please Note:
*STD bore size pistons are not recommended in a used bore for any performance engine unless the bores have done minimal work with minimal wear and the correct piston to bore clearance can be adhered to.
All piston manufacturers have a specific piston to bore clearance that they recommend. If STD bore pistons are requested and there is a piston to bore clearance issue we will not exchange or refund, due to the reasons given above.
| Product Name | Ford XR6 Turbo Barra Rebuild Kit with Spool Drag Pro I Beam Conrods and CP Bullet Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. For Australia, you need to select from ALL dropdowns (Country, State, Suburb, and Postcode) for the quote system to work. (There may be a small delay as it searches.) For international orders, you only need to select the Country to get a quote, but more details are required at checkout to complete the order.
If you have issues calculating freight, please get in touch. The most common reason for issues is that the postcode does not match the suburb, or the suburb is spelled differently from what the carriers have.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
