Raceworks Barra High-Mount Turbo Oil Feed Line & Filter Kit
The Raceworks RWM-037 oil feed kit is designed for high-mount turbo installations on Ford Barra engines. It replaces the factory turbo oil feed line and the original inline filter with a heat-resistant braided assembly and a serviceable 40-micron filter.
A stainless steel 90-degree hose end at the turbo side helps the line follow a suitable path around a high-mount manifold and turbocharger. Raceworks 200 Series PTFE (Teflon) braided hose provides excellent resistance to engine-bay heat and engine oil.
Why Upgrade the Factory Oil Feed?
The small OEM filter fitted inside the factory black oil-line fitting can become restricted over time. Reduced oil supply can damage the turbocharger. RWM-037 replaces this arrangement with an accessible 40-micron filter that can be cleaned or replaced as part of routine maintenance.
Kit Features
- Designed for Ford Barra high-mount turbo installations
- 200 Series PTFE braided oil hose
- Serviceable 40-micron inline oil filter
- Stainless steel 90-degree turbo-side hose end
- Replaces the factory turbo oil feed line and inline filter
- Improved routing and thermal resistance for high-mount applications
Important NA+T Fitment Note
When installing this kit on a naturally aspirated Barra engine converted to a high-mount turbo setup, an additional Raceworks 1/4-inch NPT turbo oil pressure kit is required to adapt the oil feed line to the block. This adapter kit is not included with RWM-037.
Specifications
| Brand | Raceworks |
|---|---|
| Part number | RWM-037 |
| Application | Ford Barra high-mount turbo installation |
| Hose | 200 Series PTFE braided hose |
| Filter | 40-micron, cleanable/replaceable |
| Turbo-side fitting | 90-degree stainless steel hose end |
| Product weight | Not stated by the supplier |
Installation note: Confirm the engine block connection and turbo oil inlet requirements before installation. Correct oil-line routing, cleanliness and turbocharger oil-feed requirements are critical.
| Product Name | Raceworks Ford Barra High-Mount Turbo Oil Feed Line & Filter Kit |
|---|---|
| Brands | Raceworks |
| Engine | 4.0L Inline 6, Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in the Raceworks RWM-037 kit?

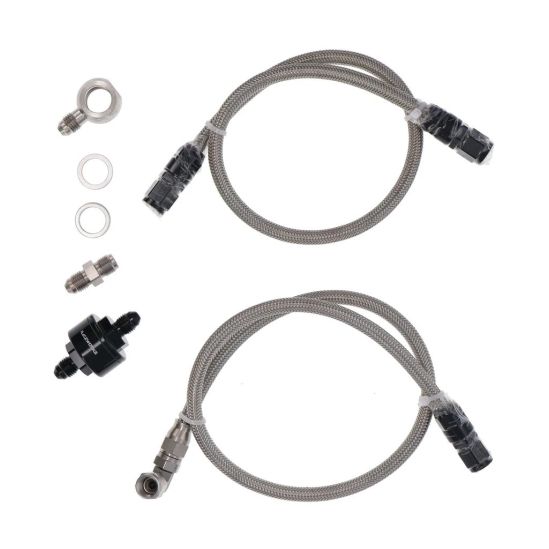

The kit includes a 200 Series PTFE (Teflon) braided turbo oil feed hose, a serviceable 40-micron inline oil filter and a stainless steel 90-degree hose end at the turbo side.
Why replace the factory Barra turbo oil feed line and filter?
The factory inline filter inside the original black fitting can become restricted over time. This kit replaces the original feed line and filter with a serviceable 40-micron filter to support reliable oil flow to the turbocharger.
Does RWM-037 suit a Barra NA+T high-mount conversion?
For an NA+T high-mount conversion, an additional Raceworks 1/4-inch NPT turbo oil pressure kit is required to adapt the oil feed line to the engine block. That adapter kit is not included with RWM-037.
Is this kit intended for a high-mount turbo?
Yes. The 90-degree stainless steel turbo-side hose end is designed to provide a suitable routing path and strong heat resistance in a high-mount turbo installation.
