ARP 2000 Ford XR6 Head Studs - M14mm x 1/2 inch diam (252-4301)
ARP 2000 Ford XR6 Barra Head Studs - 12mm (252-4302)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
NEW! - Just released
These head stud kits feature premium grade ARP 2000 material ( Not 8740 material as all previous kits ) that is rated at 220000 psi tensile strength.
These are a direct replacement for the OEM head bolts. No drilling and tapping of the cylinder block required.

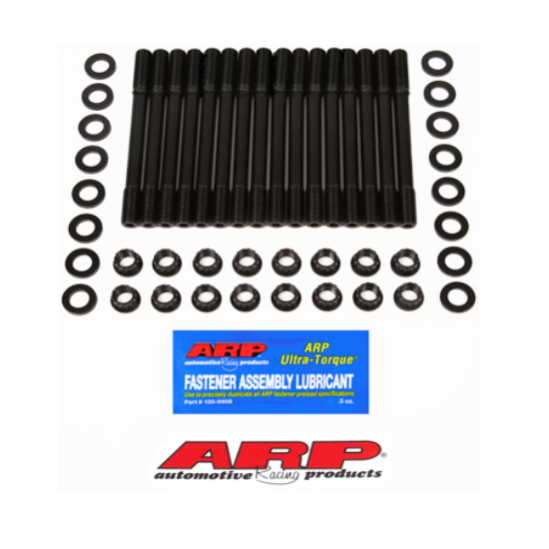

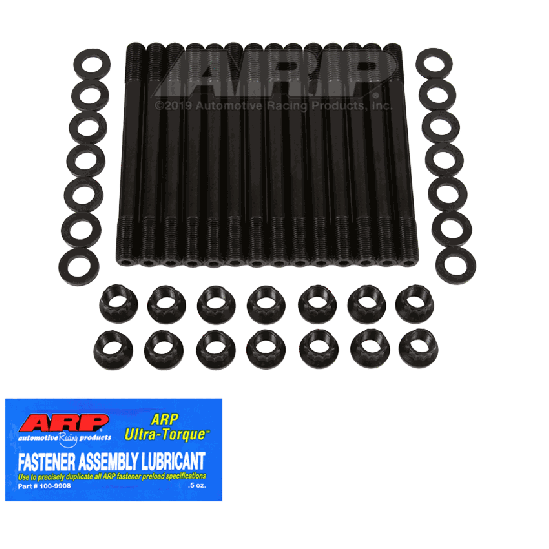

This kit includes a set of fourteen ARP2000® M12 head studs that replace the original head bolts, fourteen parallel ground washers, fourteen chrome moly steel 12 point nuts and a 1/2 oz. pack of ARP Ultra-Torque fastener assembly lubricant.
They are heat-treated prior to thread rolling and machining and are rated at a whopping 220000 psi.
The pro series kits are also available with 12-point nut, and all kits come complete with hardened parallel washers for an even load distribution and accurate torque readings.
8740 material has a 190,000 psi
| Product Name | ARP 2000 Ford XR6 Barra Head Studs - 12mm (252-4302) |
|---|---|
| Brands | ARP |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is the difference between ARP2000, L19 and CA625+?
ARP2000 suits most high-performance builds. L19 offers higher strength but is sensitive to handling and corrosion. CA625+ is used for extreme cylinder pressure or rpm.
Why is ARP lubricant important?
ARP torque values assume Ultra-Torque lubricant on threads and under the head. Without it, clamp load becomes unpredictable.
What is the tensile strength of the ARP 2000 head studs for the Barra XR6?
The ARP 2000 head studs for the Barra XR6 are rated at 220,000 psi tensile strength, which provides enhanced durability compared to the previous 8740 material head bolts.
Do I need to modify my engine block to install these head studs?
No, these ARP 2000 head studs are a direct replacement for the OEM head bolts, meaning no drilling or tapping of the cylinder block is required for installation.
What components are included in the ARP 2000 head stud kit for the Barra XR6?
The kit includes fourteen ARP2000 M12 head studs, fourteen parallel ground washers, fourteen chrome moly steel 12-point nuts, and a 1/2 oz. pack of ARP Ultra-Torque fastener assembly lubricant.
How should I torque the ARP 2000 head studs during installation?
Follow ARP's latest instructions for torque specifications. Proper torque is crucial for ensuring even load distribution and preventing head gasket failure.
Are these head studs compatible with aftermarket cylinder heads?
While these head studs are designed as a direct replacement for OEM head bolts, compatibility with aftermarket cylinder heads may vary. Always verify fitment based on the specific head design and manufacturer recommendations.
-
-
-
-
-
-
