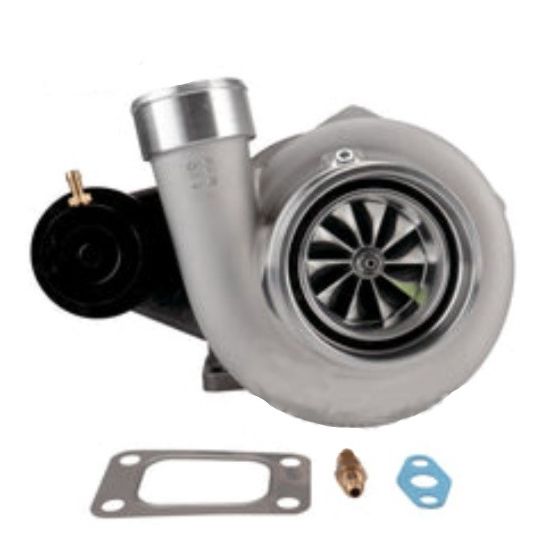

PSR3584 Gen3 Dual Ball Bearing Turbocharger External Wastegate Version for BA/BF Ford Falcon XR6
PULSAR PSR3584 Gen 3 Ford XR6 Barra Turbo
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Turbocharger Features:
- Dual Ceramic Ball Bearing System for improved turbo response and durability
- 10-Blade Gen2 Billet Compressor Wheel with extended tapered tip technology for optimal aerodynamic efficiency
- Inconel 713c 10-Blade Turbine Wheel designed for high horsepower applications
- Integrated Speed Sensor Port in the compressor cover for easy installation
- Max Air Flow Rate: Approximately 90 lb/min, rated for 1000 FWHP
- Stronger Turbine Wheel for improved flow capacity
Turbo Specifications:
- Compressor Wheel: 67*84mm
- Turbine Wheel: 74*66mm
- Compressor Inlet: 4.0†hose
- Compressor Outlet: 2.5†hose
- Turbine Inlet: T3, T4, or 2.5†V-Band
- Turbine Outlet: XR6-style 5-bolt
- Oil Feed: -4 AN, connects to oil restrictor
- Oil Drain: Standard T3 flange
- Water In/Outlet: M14*1.5
- Water Cooling: Highly recommended for enhanced durability
- Actuator: Billet actuator with black anodized coating
- Gasket: 3-layer stainless steel 5-bolt gasket included
Performance Overview:
- Based on the popular GTX3584RS series turbo, but with a larger 66mm turbine wheel
- The Gen 3 PSR3584 Turbo has been proven to produce up to 70rwkw more than previous Gen 2 models, thanks to the stronger turbine wheel designed for high-flow applications.
| Product Name | PULSAR PSR3584 Gen 3 Ford XR6 Barra Turbo |
|---|---|
| Brands | Pulsar |
| Engine | Barra XR6 |
| Make | Ford |
