Raceworks BA/BF Falcon MRA Conversion Kit Return Style (Aluminium Tank)
Raceworks FG Falcon MRA Conversion Kit Return System
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Raceworks FG Falcon MRA Conversion Kit Return System
The Raceworks FSA-514 FG Falcon MRA Conversion Kit is designed to allow the installation of a BA Falcon MRA (Module Reservoir Assembly) into an existing or new fuel tank, providing a reliable in-tank fuel pump solution for Ford Barra and high-performance EFI fuel system applications.
Suitable for retrofitting into custom fuel tanks, this return-style fuel system conversion kit provides a clean and practical method for upgrading fuel delivery without requiring a complete custom fuel tank assembly.

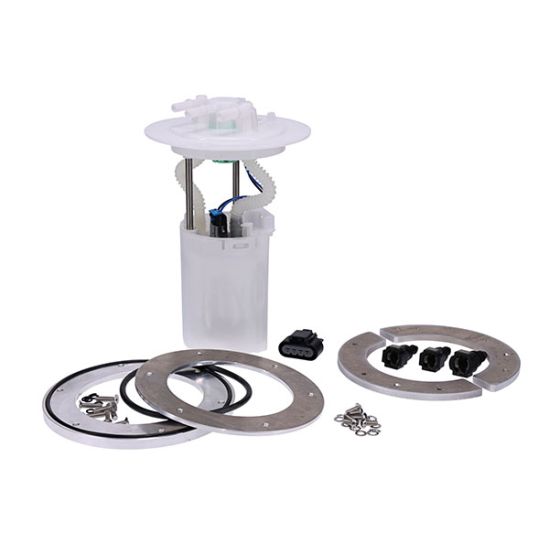

The Raceworks FSA-514 includes all required components for installation, including the aluminium top clamp ring, lower ring, internal half-moon retaining rings, countersunk screws, stainless cap screws, seals, fuel-safe seal, quick-connect fuel adapters and electrical connector.
The spring-loaded MRA assembly is designed to maintain contact with the bottom of the fuel tank, helping ensure consistent fuel supply during demanding driving conditions. With a fuel pump flow rate of 185LPH at 3 bar, the FSA-514 is ideal for street performance, motorsport and custom Barra fuel system upgrades.
Features
- Genuine Raceworks quality
- Includes BA Falcon MRA (Module Reservoir Assembly)
- Suitable for retrofitting into an old or new fuel tank
- Return-style fuel system
- Includes aluminium top clamp ring, lower ring and internal half-moon retaining rings
- Includes countersunk screws, stainless cap screws and seals for installation
- Includes fuel-safe sealing gasket
- Includes 3/8" and 5/16" quick-connect fuel adapters
- Includes electrical connector
- Suitable for fuel tanks between 180mm and 215mm high
- Spring-loaded design keeps the MRA assembly positioned securely against the bottom of the fuel tank
- Fuel pump flow rate: 185LPH @ 3 bar
- Fuel pump current draw: 8A
- Fuel level sender not included
Applications
- Ford FG Falcon Barra
- Ford Barra turbo fuel system upgrades
- EFI fuel tank conversions
- Performance fuel system installations
- Custom fuel tank applications
Specifications
- Brand: Raceworks
- Part Number: FSA-514
- Product Type: MRA Conversion Kit
- Fuel System Type: Return System
- Fuel Pump Flow: 185LPH @ 3 bar
- Current Draw: 8A
- Tank Height Compatibility: 180mm–215mm
- Fuel Level Sender: Not included
Note: Confirm fuel tank dimensions and installation requirements before purchasing.
| Product Name | Raceworks FG Falcon MRA Conversion Kit Return System |
|---|---|
| Brands | Raceworks |
| Engine | Barra XR6 |
| Make | Ford |
