Ford Barra 1300HP Engine kit

USD$2,148.22
Availability: In stock
SKU
BAR-1300-KIT

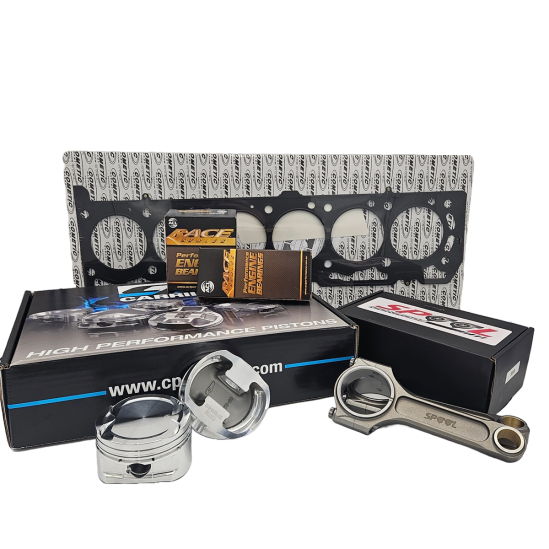

Spool Ford Barra XR6 Turbo 1300FWHP Rebuild Kit

This Rebuild Kit includes the following quality parts:

  • Spool Forged Drag Pro I-Beam Conrods
  • CP Bullet Or Ross Racing Forged Pistons with 4 x Valve Reliefs (Rings, Pins and Locks Included)
  • Athena Cut Ring Head gasket
  • ACL Race Series Main Bearings (360 thrust)
  • ACL Race Series Big End Bearings

CP Bullet Pistons feature:

  • 2618 Forged Alloy
  • Offset Gudgeon Pin
  • 4 x Valve Pockets
  • 9310 0.200” pins
  • Includes piston rings, pins and pin locks.

Ross Racing Pistons Feature:

  • Bore Size: +0.001" or +0.25mm
  • Pistons come with NPR Gas Nitrided top ring, three pcs. oil
  • 4 Valve Pockets
  • 0.225” wall Carbon steel
  • Forged 2618
  • Locks

Spool Connecting Rods Feature:

  • ARP 2000 fasteners
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

Please Note:

*STD bore size pistons are not recommended in a used bore for any performance engine unless the bores have done minimal work with minimal wear and the correct piston to bore clearance can be adhered to.

All piston manufacturers have a specific piston to bore clearance that they recommend. If STD bore pistons are requested and there is a piston to bore clearance issue we will not exchange or refund, due to the reasons given above.

More Information
Product NameFord Barra 1300HP Engine kit
EngineBarra XR6
MakeFord

We are an Australian based company which ships items nationally and international usually within 48 hours of receiving your order. All items shipped internationally are sent express air freight unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link and for Australia you need to select from ALL dropdowns i.e. Country, State, Suburb and Postcode for the quote system to work. (there is a small delay as it searches) For International you just need the Country to get a quote, more detail is required at Check out to complete order

Our shipping providers do not deliver to P.O. Boxes.

If you have issues calculating freight please get in touch, the most common reason is post code does not match suburb or you are entering a p.o box.

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure get in touch with sales@spoolimports.com.
