Spool GM LS V8 4. Stroker Kit with Full Billet, Full Counterweight Crankshaft

As there are so many part numbers we order these in on demand from CP. They will take UP to 2 weeks but generally less. If CP has them on back order we will email you and let you know otherwise we ship when they arrive.
AUD$6,586.36
SKU
SPL-LS-4-FULL-STK-KIT-
+ -
Add to Wish List Share

Copy Link

AfterPay, Zip, Klana

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Protect you newly assembled engine during start-up
Federal Mogul Sealed Power Engine Assemble Lube 4oz
Federal Mogul Sealed Power Engine Assemble Lube 4oz
Special Price AUD$13.64 Regular Price AUD$18.18
Out of stock

L98, L77 & GM LS Full Billet 4.000" Stroker Kit

This premium GM/Holden LS stroker rotating assembly uses a full-billet 4340 full-counterweight 4.000-inch crankshaft with Spool connecting rods and CP Bullet forged pistons. It is suited to high-end L98, L77 and other compatible LS performance builds where a billet crankshaft is preferred.

For a conventional 4.000-inch crankshaft rotating assembly aimed at common 408 LS combinations, see the GM LS 408 stroker kit.

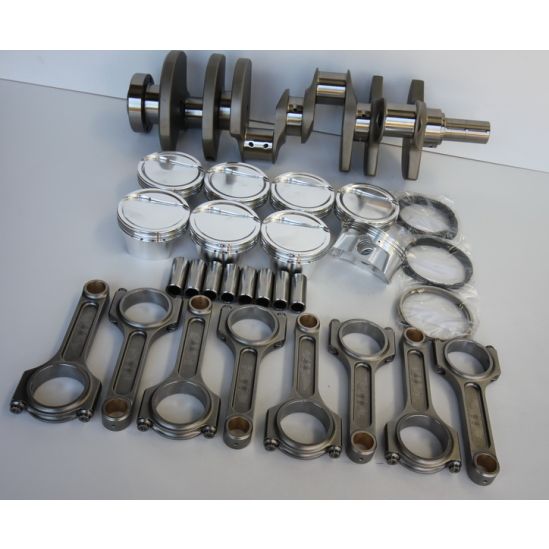

This kit includes the following quality parts:

  • Spool 4.000" Full Billet 4340 Full Counterweight Crankshaft - Crank Does Not Come With Reluctor Fitted
  • Spool 6.125" H Beam Connecting Rods with ARP2000 7/16 bolts - Upgradeable to Drag Pro or X300
  • CP Bullet LS Pistons- SELECT FROM LIST BELOW
  • Includes Pins, Rings and Locks

CP Bullet Series Pistons

Chevrolet LS 4.000" Stroke (15°Heads) with 6.125" Connecting Rods

CP part numberPiston specification (dimensions in inches)Source application details
BLS1002-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS1 Dish -18.2cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 68cc head
BLS1004-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS2 Dish -27.8cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 63cc head
BLS1005-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -12.7cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1006-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS2 Dish -27.5cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 64cc head
BLS1006-040Bore: 4.040 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.2:1Chevy LS2 Dish -27.5cc All std 15 deg/ L92 4.040 bore, 4.000 stroke, 6.125 rod 9.2 to 1 Comp with 64cc head
BLS1007-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.9:1Chevy 415ci LS3 STD 15deg / L92 4.065 Bore -11.2CC Dish
BLS1007-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.9:1Chevy 416ci LS3 All 15 degree / L92 4.070 Bore 1.110 CH -11.2cc Dish
BLS1007-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.2:1Chevy LS3 Dish -11.2cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 10.0 to 1 Comp with 70cc head
BLS1007-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.2:1Chevy LS3 Dish -11.2cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 10.2 to 1 Comp with 70cc head
BLS1007-030NABore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head N/A
BLS1007-080NABore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.5:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 64cc head N/A
BLS1008-125Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -17.4cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1009-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.0:1Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 11.0 to 1 Comp with 65cc head
BLS1010-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1010-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1111-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.105 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1113-125Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 11.3:1Chevy LS2 Flat top -3.8cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 11.3 to 1 Comp with 70cc head
BLS1113-130Bore: 4.130 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 11.3:1 / Larger head gasket required - confirm with SpoolChevy LS2 Flat top -3.8cc All std 15 deg/ L92 4.130 bore, 4.000 stroke, 6.125 rod 11.4 to 1 Comp with 70cc head
BLS1115-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 66cc head
BLS1115-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 9.1 to 1 Comp with 66cc head
BLS1115-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 66cc head
BLS1117-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.5:1Chevy LS2 Dish -8cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1117-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Ref C/R: 10.5:1 with 68cc headsChevy LS2 Dish -8cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1117-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1119-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.3:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 11.3 to 1 Comp with 68cc head
BLS1123-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 66cc head
BLS1123-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.6:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 11.6 to 1 Comp with 66cc head
BLS1125-060Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 9.5:1Chevy LS2 Dish -22.2cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 68cc head
BLS1126-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Ref C/R: 9.5:1 with 70cc headsChevy LS2 Dish -14.5cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1128-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.1:1Chevy LS3 Dish -25.1cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 9.1 to 1 Comp with 70cc head
BLS1130-065Bore: 4.130 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.105 / C/R: 10.5:1 / Larger head gasket required - confirm with SpoolChevy LS3 Dish -14.2cc All std 15 deg/ L92 4.130 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1005-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -12.7cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1146-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS -20cc Dish All 15 degree/L92 4.005 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head
BLS1002-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Dish -18.2cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 9.2 to 1 Comp with 68cc head
BLS1004-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -27.8cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 63cc head
BLS1009-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 11.2 to 1 Comp with 65cc head
BLS1010-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1020-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -8cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 68cc head 30psi 1500hp
BLS1021-030SDBore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.35 to 1 Comp with 64cc head
BLS1117-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -8cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1123-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 416ci LS All 15 degree/L92 Bore 4.075 CH 1.110 Stroke 4.000 Rod 6.125 11.6 CR Flat Head 66c
BLS1126-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -14.5cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1126-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -14.5cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1131-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS3 Dome +11.8cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 13.5 to 1 Comp with 68cc head
BLS1133-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy 409ci LS L92 4.030 bore 1.115 CH 4.000 stroke 6.125 rod 13:1 CR with 68cc head
BLS1133-045Bore: 4.045 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS2 Dome +10cc All std 15 deg/ L92 4.045 bore, 4.000 stroke, 6.125 rod 13.0 to 1 Comp with 68cc head
BLS1137-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 70cc head
BLS1137-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 70cc head
BLS1137-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 70cc head
BLS1142-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy All LS 15 degree/L92 4.005 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.5mm, 1.5mm, 3.0mm rings
BLS1142-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS All 15 degree/L92 4.010 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.5mm, 1.5mm, 3.0mm rings
BLS1142-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 11.1 to 1 Comp with 68cc head
BLS1142-065Bore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 415ci All LS 15 degree / L92 Bore 4.065 CH 1.110 Stroke 4.000 Rod 6.125 Flat Top 68cc Head
BLS1142-070Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 416ci All LS 15 degree / L92 Bore 4.070 CH 1.110 Stroke 4.000 Rod 6.125 Flat Top 68cc Head
BLS1142-075Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 417ci All LS 15 degree/L92 Bore 4.075 CH 1.110 Stroke 4.000 Rod 6.125 CR 11.3 FT Flat Top 68cc Head
BLS1143-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1143-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 68cc head
BLS1146-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS -20cc Dish All 15 degree/L92 4.010 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head
BLS1148-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci All LS 15 degree/L92 Bore 4.005 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLS1148-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci Al LS 15 degree/L92 Bore4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLS1148-075Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci All LS 15 degree/L92 Bore4.075 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLSR1007-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS L92/All 15 degree Heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, -11.2cc dish, 1.2mm, 1.2mm, 3.0mm rings
BLSR1115-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy All LS 15 degree/L92 heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1117-010(BLSR Race) / Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy 403ci LS L92/All 15 degree Bore 4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 10.5 Dish Head 68cc
BLSR1123-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS All 15 degree/L92 heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1142-010(BLSR Race) / Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS 404ci All 15 degree/L92 Bore 4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 11 Flat Top Head 68cc
BLS1018-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Dish: -8.1cc / Ref C/R: 10.0:1 with 68cc headsChevy LS1 Dish -8.1cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 10.0 to 1 Comp with 68cc head

Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact [email protected]

CP Bullet Pistons Feature:

  • Pistons manufactured from 2618 alloy for strength and durability
  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made

Note: Clearancing of a stock cylinder block to make space for the counterweights is required.

Piston selection: Match the measured block bore, stroke, 6.125-inch rod and actual cylinder-head geometry. Large-bore options require a suitable block and matching head-gasket bore. AFR/Brodix 12-degree options, where listed, require those specific heads. BLSR Race options use 1.2/1.2/3.0mm rings and carry the displayed upgrade charge; use the matching supplied ring set. Compression ratios are reference figures and depend on the complete engine combination.

More Information
Product Name Spool GM LS V8 4. Stroker Kit with Full Billet, Full Counterweight Crankshaft
Brands Spool
Engine LS
Make Chevrolet, GM, Holden, LS Chev

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

If you are outside of Australia, you are responsible for any duty or taxes charged by your government."

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

What is included in a typical Spool engine kit?

Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.

Do I still need machining with a full engine kit?

Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.

What are the machining requirements for the Spool GM LS V8 4.000" Stroker Kit?

The Spool GM LS V8 Stroker Kit requires clearancing of the stock cylinder block to accommodate the counterweights of the crankshaft. Additionally, the conrods may need big-end or small-end honing due to factory variations in journal and pin sizes. Ensure proper bore clearance and ring gaps are set by the engine builder for optimal performance.

What type of pistons are included in the Spool GM LS V8 Stroker Kit?

The kit includes CP Bullet LS pistons made from 2618 alloy, designed for strength and durability. They come with a contemporary ring set suitable for severe duty applications, including nitrous and turbo setups. You can select from various part numbers based on your specific compression ratio and head type.

What is the torque specification for the ARP2000 bolts included in the conrods?

The ARP2000 bolts in the Spool conrods should be torqued to approximately 75 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate specifications and procedures.

Is balancing required for the crankshaft in this stroker kit?

Yes, the Spool 4.000" Full Billet Crankshaft must be balanced with the full rotating assembly to ensure proper operation and reliability. This is crucial for high-performance applications to prevent vibrations and potential engine damage.

Can I upgrade the conrod bolts in this kit?

Yes, the conrods in the Spool GM LS V8 Stroker Kit come standard with ARP2000 7/16 bolts, and you have the option to upgrade to Drag Pro or X300 bolts for enhanced performance and strength, depending on your specific application needs.
