Holden / GM LS1,LS2 LS3 - 3.622' OEM Stroke Rebuild Kit with Spool Conrods and CP Bullet Forged Pistons

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Choose by engine family and finished bore
- 5.7L Gen III LS1 / LS6: nominal 3.898-inch bore; listed 3.905 (+.007) and 3.915 (+.017) options.
- 6.0L LS2 / L76 / L77 / Holden Gen-IV L98: nominal 4.000-inch bore. L98 here means the Holden Gen-IV 6.0L engine, not the older Chevrolet Gen-I L98.
- 6.2L LS3 / L92 / L99: nominal 4.065-inch bore.
These names group the bore families. They do not make every piston or other kit component interchangeable between engines, years or cylinder heads. Choose the exact bore, stroke, rod length, pin and head geometry for your build. Larger-bore options need individual block and gasket checks.
Holden / GM LS1, 2 and 3 - 3.622" OEM Stroke Rebuild Kit

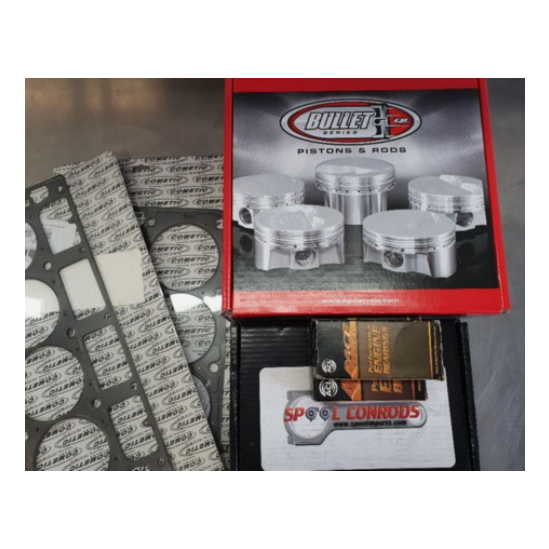

This rebuild Kit includes the following quality parts:
- CP Bullet Forged 2618 Pistons ( rings, Pins and Locks included ) – pick options from drop down
- Spool H Beam Con Rods with 7/16 ARP 2000 Bolts – or upgrade to Drag Pro I Beam Conrods with 7/16 ARP 2000 Bolts
- L19 Bolt upgrade option available in drop down
- Gudgeon pin upgrade option available in drop down
- ACL race Series B/E Bearings
- ACL race series main Bearings
- 2 x Cometic MLS Gaskets
Use the table below to find your required specifications and select from dropdown above.
| CP part number | Bore (in) | Stroke (in) | Rod (in) | Compression height (in) | Pin (in) | Rings (mm) | Head geometry / notes |
|---|---|---|---|---|---|---|---|
| BLS1001-007 | 3.905 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1011-005 | 4.005 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1011-030 | 4.030 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1012-005 | 4.005 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1012-010 | 4.010 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1012-125 | 4.125 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1112-007 | 3.905 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1114-005 | 4.070 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1114-010 | 4.075 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1114-STD | 4.065 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1116-005 | 4.005 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1118-030 | 4.030 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1118-040 | 4.040 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1121-005 | 4.070 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1121-STD | 4.065 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1122-015 | 4.080 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1127-015 | 4.080 | 3.622 | 6.125 | 1.295 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1135-030 | 4.030 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1135-065 | 4.065 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1135-070 | 4.070 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1135-075 | 4.075 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1136-005 | 4.070 | 3.622 | 6.125 | 1.314 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1138-005 | 4.005 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1140-005 | 4.005 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1140-125 | 4.125 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1150-005 | 4.005 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | AFR/Brodix 12-degree only |
| BLS1150-030 | 4.030 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | AFR/Brodix 12-degree only |
| BLS1152-005 | 4.070 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | AFR/Brodix 12-degree only |
| BLS1001-017 | 3.915 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1011-010 | 4.010 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1011-020 | 4.020 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1012-020 | 4.020 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1016-007 | 3.905 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1112-017 | 3.915 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1116-010 | 4.010 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1138-010 | 4.010 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1138-020 | 4.020 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1138-030 | 4.030 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1140-010 | 4.010 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1140-020 | 4.020 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLS1156-STD | 4.000 | 3.622 | 6.125 | 1.304 | .927 x 2.250 | 1.5 x 1.5 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLSR1121-005 | 4.070 | 3.622 | 6.125 | 1.305 | .927 x 2.250 | 1.2 x 1.2 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLSR1140-010 | 4.010 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.2 x 1.2 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLSR1114-005 | 4.070 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.2 x 1.2 x 3.0 | LS 15-degree; check complete head/valve combination |
| BLSR1135-070 | 4.070 | 3.622 | 6.125 | 1.300 | .927 x 2.250 | 1.2 x 1.2 x 3.0 | LS 15-degree; check complete head/valve combination |
Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact [email protected]
CP Bullet Features Include:
- Pistons manufactured from 2618 alloy for strength and durability
- Balanced to + or – 1 gram
- Dual forced pin oilers
- Contact reduction grooves
- Accumulator Grooves
- Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
- Forged side relief
- Chromoly wrist pins with wire locks
- FEA designed forging
- Tight tolerances
- USA made
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Note: Clearancing of the cylinder block is sometimes required.
Bullet and BLSR Race piston options
The listed ordinary Bullet pistons use a 1.5 / 1.5 / 3.0mm ring pack. The listed BLSR Race options use a matching 1.2 / 1.2 / 3.0mm ring pack. Rings, pins and locks are included with the selected piston set. BLSR upgrade prices are shown in the selector; no separate ring-pack surcharge is added. Use the rings and clearances specified for the actual piston, not an interchangeable generic ring pack.
Confirm the block and final bore with your engine builder before ordering. The finished bore, piston clearance, deck height, piston-to-valve clearance, crankshaft, reluctor and bearing arrangement must suit the complete build. Piston availability does not establish an approved overbore for every block. The selected head-gasket opening must be larger than the finished cylinder bore and must clear its chamfer and chamber outline.
4.130-inch cylinder-bore options: a 4.130-inch gasket opening provides no diametral clearance. Confirm a suitable larger-opening gasket with Spool Imports before ordering that combination. Do not use an equal-size or smaller gasket opening.
| Product Name | Holden / GM LS1,LS2 LS3 - 3.622' OEM Stroke Rebuild Kit with Spool Conrods and CP Bullet Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | LS |
| Make | Chevrolet, GM, Holden, LS Chev |
