Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit

Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 OEM Stroke Crank Kit

Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 4.000" Stroker Kit

As there are so many part numbers we order these in on demand from CP. They will take UP to 2 weeks but generally less. If CP has them on back order we will email you and let you know otherwise we ship when they arrive.
USD$2,701.36
SKU
SPL-LS-4-000-STK-KIT
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Spool Holden VE / GM LS 5.7 and 6.0 Litre V8 Stroker Kit

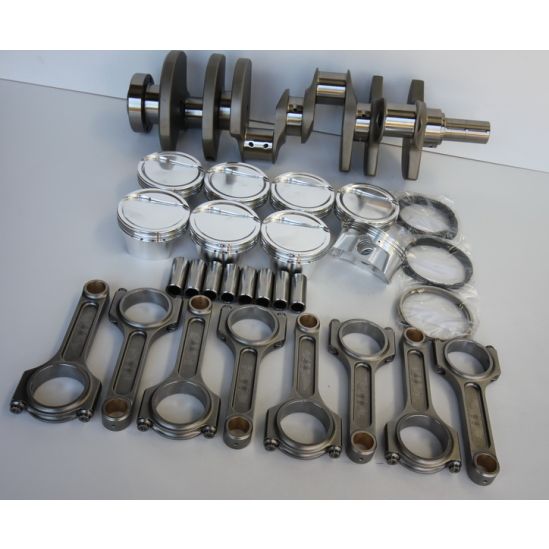

This kit includes the following quality parts:

  • Spool 4.000" Stroker Crankshaft - Crank Does Not Come With Reluctor
  • Spool 6.125" H Beam Connecting Rods with ARP2000 7/16 bolts
  • CP Bullet LS Pistons- SELECT FROM LIST BELOW
  • Includes Pins, Rings and Locks

CP Bullet Series Pistons

Chevrolet LS 4.000" Stroke (15°Heads) with 6.125" Connecting Rods

Part Number Bore Stroke Rod Comp Height Head Type Head CC Dome Height Dish / Dome C/R Pin Dia VR Depths Weight Type VR
BLS1002-007 3.905 4.000 6.125 1.110 Std 15 deg/ L92 68.0 -.135 -18.2cc 9.0:1 .927 x 2.250 .185 / .145 376 Dish 2 VR's
BLS1004-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 63.0 -.195 -27.8cc 9.0:1 .927 x 2.250 .200 / .155 406 Dish 2 VR's
BLS1005-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.080 -12.7cc 10.3:1 .927 x 2.250 .200 / SP 399 Dish 2 VR's
BLS1006-030 4.030 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.188 -27.5cc 9.0:1 .927 x 2.250 .200 / .155 413 Dish 2 VR's
BLS1006-040 4.040 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.188 -27.5cc 9.2:1 .927 x 2.250 .200 / .155 415 Dish 2 VR's
BLS1007-STD 4.065 4.000 6.125 1.110 Std 15 deg/ L92 70.0 -.070 -11.2cc 9.9:1 .927 x 2.250 .200 / SP 442 Dish 2 VR's
BLS1007-005 4.070 4.000 6.125 1.110 Std 15 deg/ L92 70.0 -.070 -11.2cc 9.9:1 .927 x 2.250 .200 / SP 443 Dish 2 VR's
BLS1007-010 4.075 4.000 6.125 1.110 Std 15 deg/ L92 70.0 -.070 11.2cc 10.2:1 .927 x 2.250 .200 / SP 444 Dish 2 VR's
BLS1007-015 4.080 4.000 6.125 1.110 Std 15 deg/ L92 70.0 -.070 -11.2cc 10.2:1 .927 x 2.250 .200 / SP 447 Dish 2 VR's
BLS1007-030 4.030 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.082 -13.4cc 10.3:1 .927 x 2.250 .200 / SP 406 Dish 2 VR's
BLS1007-080 4.080 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.082 -13.4cc 10.5:1 .927 x 2.250 .200 / SP 419 Dish 2 VR's
BLS1008-125 4.125 4.000 6.125 1.110 Std 15 deg/ L92 64.0 -.110 -17.4cc 10.3:1 .927 x 2.250 .210 / SP 431 Dish 2 VR's
BLS1009-007 3.905 4.000 6.125 1.110 Std 15 deg/ L92 65.0 F.T -2.7cc 11.0:1 .927 x 2.250 .175 / SP 378 FT 2 VR's
BLS1010-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 65.0 F.T -2.7cc 11.5:1 .927 x 2.250 .175 / SP 402 FT 2 VR's
BLS1111-030 4.030 4.000 6.125 1.105 Std 15 deg/ L92 65.0 F.T -2.7cc 11.5:1 .927 x 2.250 .175 / SP 408 FT 2 VR's
BLS1113-125 4.125 4.000 6.125 1.115 Std 15 deg/ L92 70.0 F.T 3.8cc 11.3:1 .927 x 2.250 .200 / SP 428 FT 2 VR's
BLS1113-130 4.130 4.000 6.125 1.115 Std 15 deg/ L92 70.0 F.T -3.8cc 11.3:1 .927 x 2.250 .200 / SP 428 FT 2 VR's
BLS1115-STD 4.065 4.000 6.125 1.110 Std 15 deg/ L92 66.0 .180 -27.4cc 9.0:1 .927 x 2.250 .200 / SP 421 Dish 2 VR's
BLS1115-005 4.070 4.000 6.125 1.110 Std 15 deg/ L92 66.0 .180 -27.4cc 9.0:1 .927 x 2.250 .200 / SP 423 Dish 2 VR's
BLS1115-010 4.075 4.000 6.125 1.110 Std 15 deg/ L92 66.0 .180 -27.4cc 9.0:1 .927 x 2.250 .200 / SP 425 Dish 2 VR's
BLS1117-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 68.0 0.040 -8cc 10.5:1 .927 x 2.250 .200 / SP 442 Dish 2 VR's
BLS1117-030 4.030 4.000 6.125 1.110 Std 15 deg/ L92 64.0 0.082 -13.4cc 10.3:1 .927 x 2.250 .200 / SP 438 Dish 2 VR's
BLS1119-015 4.080 4.000 6.125 1.110 Std 15 deg/ L92 68.0 F.T -2.7cc 11.3:1 .927 x 2.250 .175 / SP 421 Dish 2 VR's
BLS1123-005 4.070 4.000 6.125 1.110 Std 15 deg/ L92 66.0 F.T -2.7cc 11.6:1 .927 x 2.250 .175 / SP TBD FT 2 VR's
BLS1123-STD 4.065 4.000 6.125 1.110 Std 15 deg/ L92 66.0 F.T -2.7cc 11.5:1 .927 x 2.250 .175 / SP TBD FT 2 VR's
BLS1125-060 4.125 4.000 6.125 1.115 Std 15 deg/ L92 68.0 .144 -22.2cc 9.5:1 .927 x 2.250 .200 / .155 446 Dish 2 VR's
BLS1126-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 70.0 .0935 -14.5cc 9.5:1 .927 x 2.250 .200 / SP 406 Dish 2 VR's
BLS1128-015 4.080 4.000 6.125 1.110 Std 15 deg/ L92 70.0 -.172 -25.1cc 9.1:1 .927 x 2.250 .200 / SP 431 Dish 2 VR's
BLS1130-065 4.130 4.000 6.125 1.105 Std 15 deg/ L92 68.0 .095 -14.2cc 10.5:1 .927 x 2.250 .175 / SP 408 Dish 2 VR's
BLS1131-STD 4.065 4.000 6.125 1.110 Std 15 deg/ L92 68.0 .230 +11.8*cc 13.5:1 .927 x 2.250 .200 / SP 419 Dome 2 VR's
BLS1133-045 4.045 4.000 6.125 1.115 Std 15 deg/ L92 68.0 .175 +10cc 13.1:1 .927 x 2.250 .190 / SP 462 Dome 2 VR's
BLS1137-STD 4.065 4.000 6.125 1.115 Std 15 deg/ L92 70.0 *-.042 *-8.4cc 10.5:1 .927 x 2.250 .200 / SP 454 Dish 2 VR's
BLS1137-005 4.070 4.000 6.125 1.115 Std 15 deg/ L92 70.0 *-.045 *-8.6cc 10.5:1 .927 x 2.250 .200 / SP 454 Dish 2 VR's
BLS1137-010 4.075 4.000 6.125 1.115 Std 15 deg/ L92 70.0 *-.045 *-8.6cc 10.6:1 .927 x 2.250 .200 / SP 455 Dish 2 VR's
BLS1142-030 4.030 4.000 6.125 1.110 Std 15 deg/ L92 68.0 FT *-2.7cc 11.0:1 .927 x 2.250 .175 / SP 452 FT 2 VR's
BLS1143-007 3.905 4.000 6.125 1.110 Std 15 deg/ L92 68.0 FT *-2.7cc 10.5:1 .927 x 2.250 .175 / SP 416 FT 2 VR's
BLS1146-005 4.005 4.000 6.125 1.110 Std 15 deg/ L92 68.0 TBD -20cc 9.2:1 .927 x 2.250 .200 / SP 415 Dish 2 VR's
BLS1151-005 4.005 4.000 6.125 1.110 AFR LS3 12 * 68.0 F.T -3cc 11.1:1 .927 x 2.250 .200 / SP TBD FT 2 VR's
BLS1151-030 4.030 4.000 6.125 1.110 AFR LS3 12 * 68.0 F.T -3cc 11.1:1 .927 x 2.250 .200 / SP TBD FT 2 VR's
BLS1153-005 4.070 4.000 6.125 1.110 AFR LS3 12 * 68.0 F.T -3cc 11.3:1 .927 x 2.250 .200 / SP TBD FT 2 VR's

Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact sales@spoolimports.com

CP Bullet Pistons Feature:

  • Pistons manufactured from 2618 alloy for strength and durability
  • Balanced to + or – 1 gram
  • Dual forced pin oilers
  • Contact reduction grooves
  • Accumulator Grooves
  • Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
  • Forged side relief
  • Chromoly wrist pins with wire locks
  • FEA designed forging
  • Tight tolerances
  • USA made

Note: Clearancing of the cylinder block is sometimes required.

More Information
Product Name Spool Holden Commodore VE / GM LS 5.7 and 6.0 Litre V8 4.000" Stroker Kit
Brands Spool
Engine Chev LS (15° Heads), GM / LS, LS 5.7L and 6.0L V8
Make Chevrolet, GM, Holden, LS Chev
