Performance Springs Ford Barra XR6 BA/BF/FG/FGX PACALOY Beehive Valve Springs
PACALOY™ ovate beehive valve springs for Ford Barra BA/BF/FG/FGX engines. Direct drop-in replacement using factory retainers and locks.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

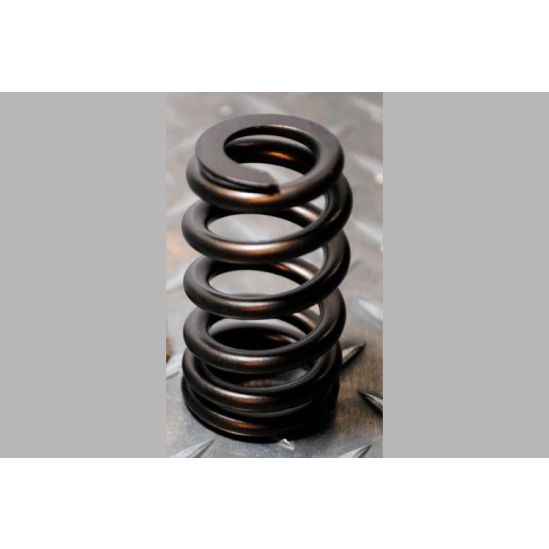

These PVS Single PACALOY™ Ovate Beehive Valve Springs are designed as a direct drop-in upgrade for Ford Barra BA and BF engines, offering improved valve control while retaining the factory valve spring retainers and locks.
Manufactured in the USA, these springs feature PACALOY™ ovate wire technology, which improves fatigue resistance and long-term durability under repeated high-load cycles. The beehive profile reduces mass at the retainer end of the spring, improving valvetrain stability and helping control valve motion at higher engine speeds.
Designed for straightforward installation, these valve springs install at a 95 lb seat pressure and deliver 235 lbs of open pressure at 0.500” lift, making them suitable for performance camshaft applications where improved control is required without moving to heavier dual-spring setups.
This spring-only package is ideal for Barra owners looking for a reliable, cost-effective valvetrain upgrade while continuing to use OEM retainers and locks.
Key Features
-
PACALOY™ ovate beehive valve spring design
-
Manufactured in the USA
-
Direct drop-in fitment for Barra BA/BF engines
-
Retains factory valve spring retainers and locks
-
Improved fatigue resistance and valvetrain stability
-
Single spring configuration for reduced mass
Spring Specifications
-
Seat Pressure: 95 lbs
-
Open Pressure @ 0.500” Lift: 235 lbs
Engine Compatibility
-
Ford Barra BA Engines - NA or Turbo
-
Ford Barra BF Engines - NA or Turbo
-
Ford Barra FG Engines - NA or Turbo
-
Ford Barra FGX Engines - NA or Turbo
| Product Name | Performance Springs Ford Barra XR6 BA/BF/FG/FGX PACALOY Beehive Valve Springs |
|---|---|
| Brands | Performance Springs |
| Engine | Barra XR6 |
| Make | Ford |
