Atomic Barra Complete Heavy-Duty Timing Chain Kit
The Complete Kit renews and upgrades the Ford Barra timing system with Atomic's heavy-duty chain, billet components and Street billet tensioner. It is the comprehensive configuration for BA through FG X Barra 4.0L rebuilds and performance engines where factory chains, guides and sprockets can become reliability limitations.

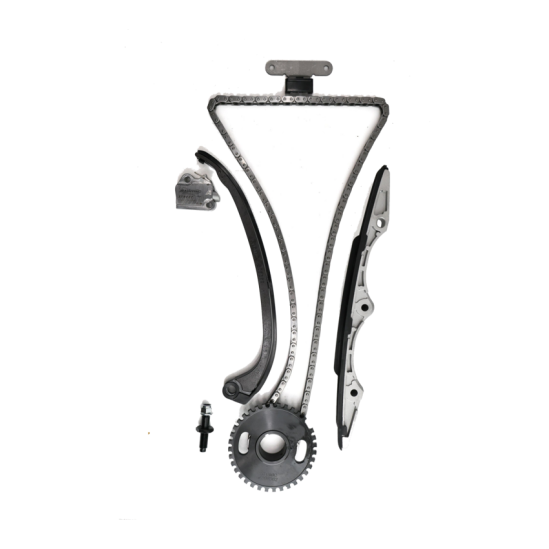

Complete Kit contents
- Atomic heavy-duty timing chain, approximately twice the strength of the factory chain
- Billet curved timing-chain guide with revised high-clearance geometry
- Billet chromoly pivot bolt with nyloc nut
- Case-hardened, heat-treated billet crank sprocket
- Atomic Street billet chain tensioner with integrated hydraulic damping
- Upper and straight timing-chain guides
- Required bolts, seals and gaskets
- Detailed installation instructions
Specifications
| Manufacturer part number | 306620-K-C |
|---|---|
| Configuration | Complete Kit (-C) |
| Application | Ford Barra DOHC 4.0L six-cylinder, BA/BF/FG/FG X |
| Chain | Heavy-duty, high-polish links; approximately double factory strength |
| Recommended head-gasket thickness | 1.0 mm |
| Manufacturer-recorded weight | 2.2 kg |
Critical installation information
Correct cam and crank timing is essential. Do not manually add tension to the guide. Use the factory timing-cover dowels and check guide-to-cover clearance before running the engine; Atomic recommends at least 2 mm. A cover fitted without dowels can contact and break the guide.
The kit is designed around a 1.0 mm head gasket. Thicker gaskets—particularly 1.8 mm—may over-tension the chain or prevent correct tensioner operation. Contact Atomic before installation if the engine uses a non-standard deck height or head-gasket thickness. Avoid high RPM while the oil is cold and allow the hydraulic tensioner to take up slack normally.
| Product Name | Atomic Ford Barra Complete Heavy-Duty Timing Chain Kit |
|---|---|
| Brands | Atomic |
| Engine | 4.0L Inline 6, Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in the 306620-K-C Complete Kit?
The Complete Kit includes the heavy-duty timing chain, billet curved guide, billet chromoly pivot bolt, billet crank sprocket, Atomic Street billet tensioner, upper and straight guides, bolts, seals and gaskets.
Which engines does this timing kit suit?
It is designed for Ford Barra DOHC 4.0L six-cylinder engines used in BA, BF, FG and FG X applications. Confirm your engine combination before ordering.
Can I use a thicker head gasket with this kit?
The kit is designed around a 1.0 mm head gasket. Atomic warns that thicker gaskets, especially 1.8 mm, can make installation difficult and may over-tension the chain or affect tensioner operation.
Is timing-cover clearance important?
Yes. Factory timing-cover dowels must be installed. Atomic recommends checking for at least 2 mm guide-to-cover clearance before running the engine because casting variation can cause contact and guide failure.
Should I manually add tension during installation?
No. Do not manually advance the tensioner or force tension onto the guide. Follow the included timing instructions and allow the hydraulic tensioner to operate as designed.
