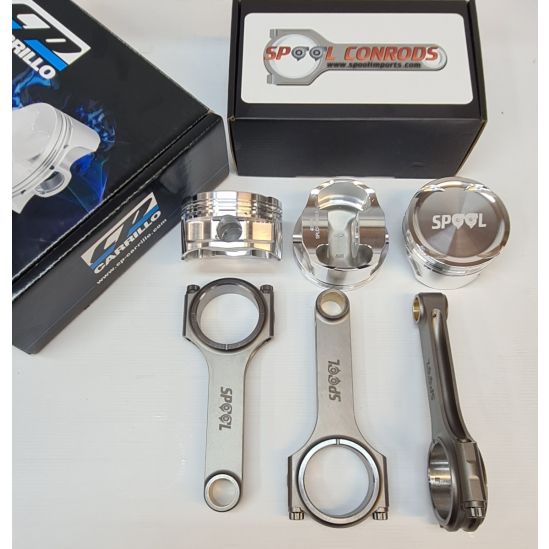

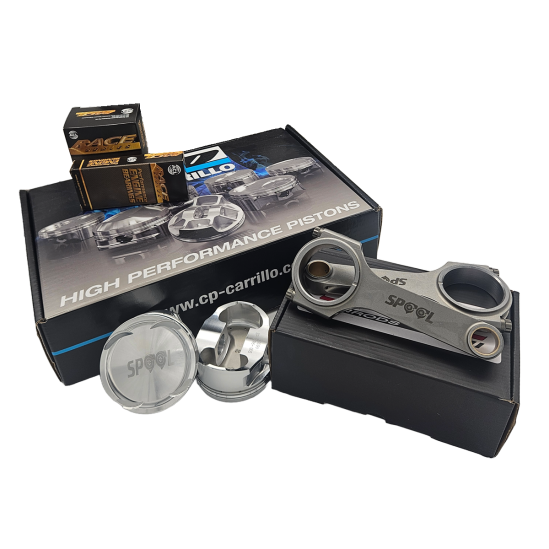

Ford XR6 Turbo Barra Spool H Beam Conrods and Heavy Duty CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Custom Heavy Duty CP Pistons
Designed specifically for big boost and high power applications.
These pistons are made to handle up to 1500 horsepower and over 1,500 horsepower with upgraded pins.
Available in:
- Comp Ratio: 9.0:1 | Bore: +0.005"
- Comp Ratio: 9.0:1 | Bore: +0.5mm
- Comp Ratio: 10.0:1 | Bore: +0.25mm
These Spool CP Custom Pistons feature:
- CP's heavy duty forging
- Thicker crown and skirt forging
- Reinforced pin boss
- 4 x Valve Pockets
- Offset gudgeon pin
- 0.200” 9310 pins STD
- Upgraded 0.250” 9310 or 300M pins are available when adding to cart.
- Includes piston rings, pins and pin locks.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Ford XR6 Turbo Barra Spool H Beam Conrods and Heavy Duty CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What is the maximum horsepower these conrods and pistons can handle?
The Spool H Beam conrods and CP forged pistons are designed for high power applications, with the pistons capable of handling up to 1500 horsepower and even more with upgraded pins. However, actual reliability will depend on proper machining, clearances, tuning, and the specific setup of your Barra engine.
What compression ratios are available for the CP pistons?
The CP pistons in this kit are available in three compression ratios: 9.0:1 with a bore of +0.005" or +0.5mm, and 10.0:1 with a bore of +0.25mm. Choose the ratio that best suits your performance goals and engine setup.
Do I need to modify my engine for these conrods and pistons?
While the Spool conrods and pistons are designed to fit the Barra XR6 engine, you may need to perform some machining, such as honing the big-end or small-end of the conrods and ensuring correct bore clearance and ring gaps for the pistons. Always consult with your engine builder for specific requirements.
What type of fasteners are included with the conrods?
The conrods come standard with ARP 2000 fasteners, which provide excellent strength for high-performance applications. If you require even greater strength, L19 fasteners are available as an upgrade.
What is the recommended break-in procedure for this engine kit?
For new engines using the Spool H Beam conrods and CP pistons, we recommend using Joe Gibbs Break in Oil to ensure proper lubrication during the critical initial period. Follow standard break-in procedures to maximise engine longevity and performance.
