Toyota 1UZ-FE Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons (non VVT-i)

USD$2,933.27
In stock
SKU
REB-1UZ-H-Ross
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

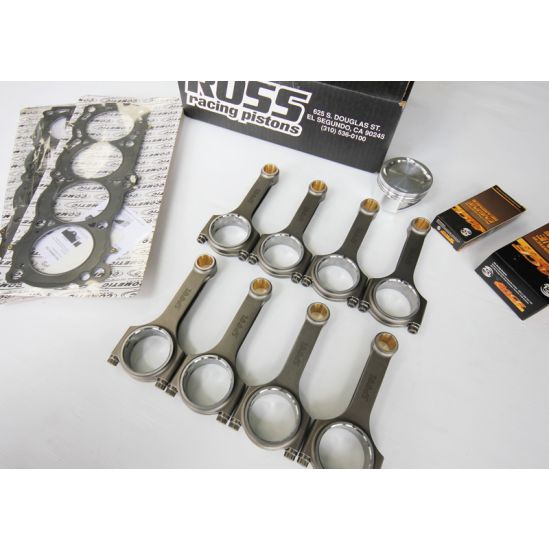

This Rebuild Kit includes the following quality parts:

  • Spool Forged H Beam Conrods with 7/16 ARP 2000 Fasteners
  • Ross Forged Pistons (Rings, Pins and Locks Included)
  • 2 x Cometic MLS Head Gasket
  • ACL Race Series Main Bearings
  • ACL Race Series Big End Bearings

Pistons are available in:

  • All Ross Racing Pistons are made in the USA
  • Compression Ratio: 9.0:1
  • Bore Sizes: + 0.5mm
  • Pistons come with rings, gudgeon pins and pin locks
  • Forged 2618

Spool Connecting Rods Feature:

  • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

Ross Racing Pistons:

All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.

Note: We recommend Joe Gibbs Break in Oil for all new engines.

More Information
Product Name Toyota 1UZ-FE Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons (non VVT-i)
Brands Spool
Engine 1UZ-FE
Make Toyota
