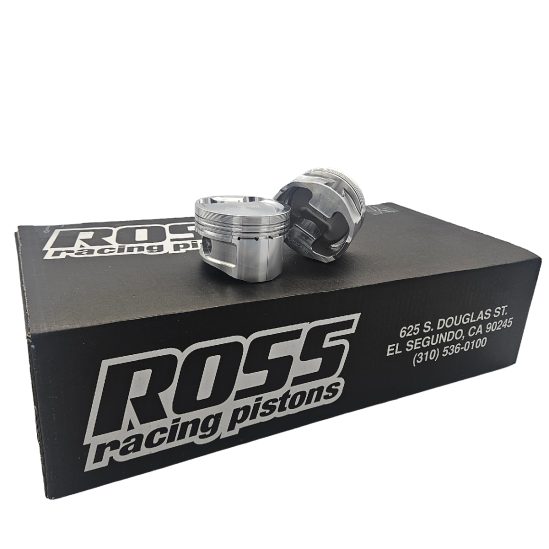

Spool Toyota 1UZ-FE V8 Ross Racing Forged Pistons (Non VVT-i)
Upgrade your Toyota 1UZ-FE V8 engine with the high-performance Ross Racing Forged Pistons, designed specifically for non VVT-i models. Crafted in the USA, these pistons are engineered to deliver exceptional durability and performance, making them an ideal choice for enthusiasts and professional racers alike. With a focus on precision and quality, these pistons ensure optimal engine efficiency and power output.
Key Features:
- Made in the USA for superior quality and reliability
- Available Compression Ratios: 9.0:1 or 10.5:1
- Bore Size Options: +0.5mm or +1.0mm for customized fit
- Includes rings, gudgeon pins, and pin locks for complete installation
- Constructed from Forged 2618 for enhanced strength and performance
Enhance your vehicle's performance with these expertly crafted pistons, ensuring your engine runs smoothly and efficiently under demanding conditions.
| Product Name | Spool Toyota 1UZ-FE V8 Ross Racing Forged Pistons (non VVT-i) |
|---|---|
| Brands | Ross Racing Pistons |
| Engine | 1UZ-FE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What compression ratios are available for the Spool Toyota 1UZ-FE Ross Racing forged pistons?
The Spool Toyota 1UZ-FE Ross Racing forged pistons are available in two compression ratios: 9.0:1 and 10.5:1. The choice of compression ratio will depend on your specific performance goals and tuning setup.
What bore size options do these pistons come in?
These pistons are offered in bore size options of +0.5mm and +1.0mm. This allows for a customised fit depending on your engine's requirements and any machining that may have been done.
What material are the Ross Racing forged pistons made from?
The Ross Racing forged pistons are constructed from Forged 2618 alloy. This material is known for its high strength and durability, making it suitable for high-performance applications.
Do these pistons come with installation hardware?
Yes, the Spool Toyota 1UZ-FE Ross Racing forged pistons include rings, gudgeon pins, and pin locks, providing a complete installation package for your engine build.
Are these pistons compatible with VVT-i models of the 1UZ-FE engine?
No, these pistons are specifically designed for non VVT-i models of the Toyota 1UZ-FE engine. If you have a VVT-i model, you will need to look for pistons specifically designed for that variant.
