Performance Springs Toyota 1UZ V8 Valve Spring Kit
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

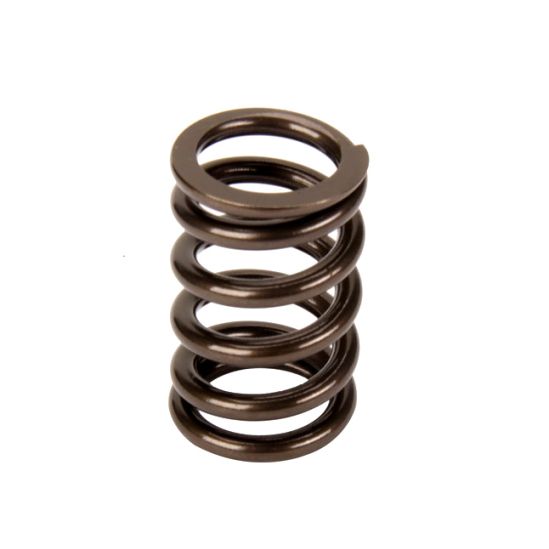

Valve Spring Set for Toyota 1UZ-FE Engines
This spring pack suits 1UZ cylinder heads requiring increased spring load to manage higher RPM or forced-induction operation. The rates and travel range match the early 1UZ valvetrain geometry.
Spring Characteristics
- O.D.: 1.010"
- I.D.: 0.735"
- Installed: 73 lbs at 1.310"
- Open: 140–145 lbs at 0.930"
- Coil Bind: 0.855"
| Product Name | Performance Springs Toyota 1UZ V8 Valve Spring Kit |
|---|---|
| Brands | Performance Springs |
| Engine | 1UZ-FE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the recommended application for the Toyota 1UZ V8 Valve Spring Kit?
This valve spring kit is designed for high-performance applications in Toyota 1UZ-FE V8 engines. It is suitable for both street and track use, providing improved engine response and reliability under high-stress conditions.
What are the specifications of the valve springs in this kit?
The valve springs have an outer diameter of 1.010 inches, an inner diameter of 0.735 inches, a seat pressure of 73 lbs at 1.310 inches, and an open pressure of 140-145 lbs at 0.930 inches. The coil bind height is 0.855 inches.
Do I need to modify my engine to install these valve springs?
While the valve springs are designed to fit the Toyota 1UZ-FE engine, it's essential to check for proper clearances and ensure that your engine's cylinder head is compatible. Some applications may require minor adjustments or machining.
Can I use these valve springs with aftermarket camshafts?
Yes, these valve springs are compatible with aftermarket camshafts designed for the 1UZ-FE engine. However, it's crucial to verify that the camshaft specifications do not exceed the spring's pressure limits to avoid coil bind or other issues.
What maintenance should I perform after installing the valve springs?
After installation, it's advisable to regularly check the valve spring pressures and inspect for any signs of wear or fatigue, especially if the engine is subjected to high RPMs or aggressive driving conditions. Regular maintenance will help ensure optimal performance and longevity.
