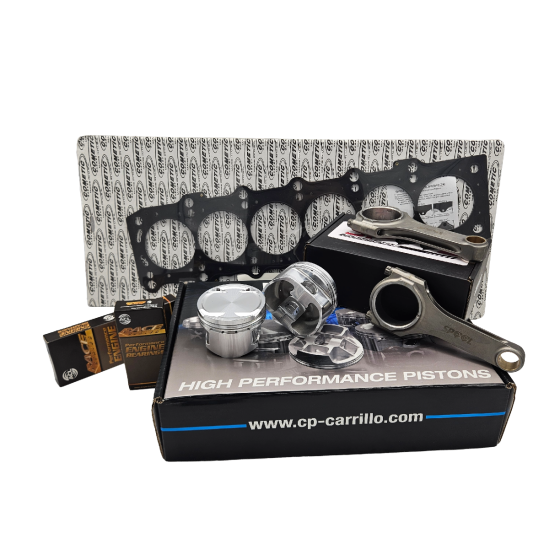

Toyota 2JZ-GTE Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

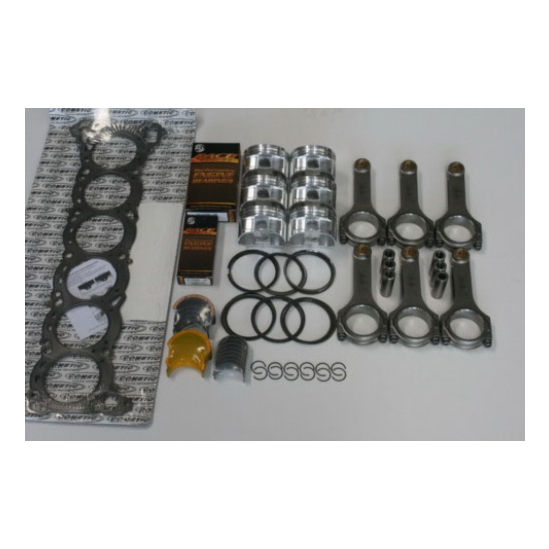

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- CP Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Pistons are available in:
- Compression Ratios: 8.5:1, 9.0:1, 9.5:1 and 10.0:1
- Bore Sizes: +0.5mm, +1.0mm and +1.5mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Toyota 2JZ-GTE Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 2JZ |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What compression ratios are available for the CP pistons in the 2JZ-GTE rebuild kit?
The CP pistons in the Toyota 2JZ-GTE rebuild kit are available in compression ratios of 8.5:1, 9.0:1, 9.5:1, and 10.0:1. Choose the ratio that best suits your performance goals and tuning setup.
What are the recommended bore sizes for the CP pistons in this kit?
The CP pistons included in the kit are available in bore sizes of +0.5mm, +1.0mm, and +1.5mm. Ensure that your engine block is machined to the appropriate size for a proper fit.
What type of fasteners are used in the Spool H Beam conrods?
The Spool H Beam conrods come standard with ARP 2000 fasteners. An upgrade to L19 fasteners is also available for those seeking additional strength for high-performance applications.
Do the conrods require any specific machining before installation?
Yes, the conrods may require big-end or small-end honing to ensure proper fitment due to factory journal and pin size variations. Always verify clearances according to your engine's specifications.
What type of bearings are included in the rebuild kit?
The rebuild kit includes ACL Race Series main bearings and big end bearings, available in standard or 0.25mm oversized options. Choose the size based on your engine's needs and any previous machine work done.
