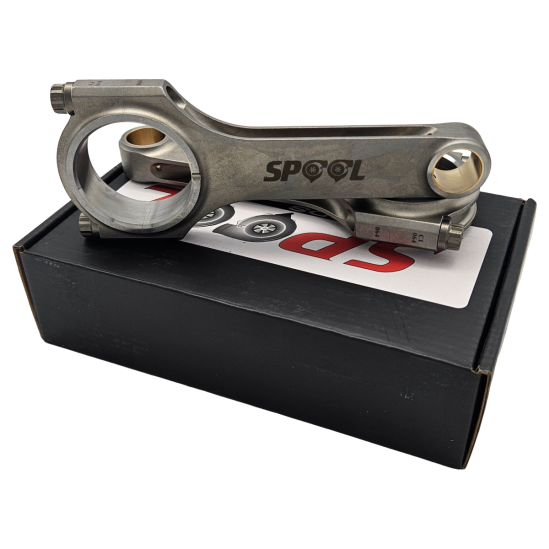

Spool Audi / VW 1.8L/2.0L EA888 H-Beam Conrods
** New Product **
Available from end of June 2026
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for Audi/VW 1.8L/2.0L engines with 22mm Pin, 144mm centre to centre and 21.89mm Big End Width including EA888
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
- Side oil squirters
No bearings are included but can be added
Specifications:
Small End Pin Size: 22mm
Small End Pin Width 21.89mm
Big End Bore: 50.617mm
Big End Width 21.89mm (Note: Big end width some engines are 24.89mm)
Centre to Centre 144mm
Weight: 610g (with bolts)
| Product Name | Spool Audi / VW 1.8L/2.0L EA888 H-Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | TSI |
| Make | VW |
