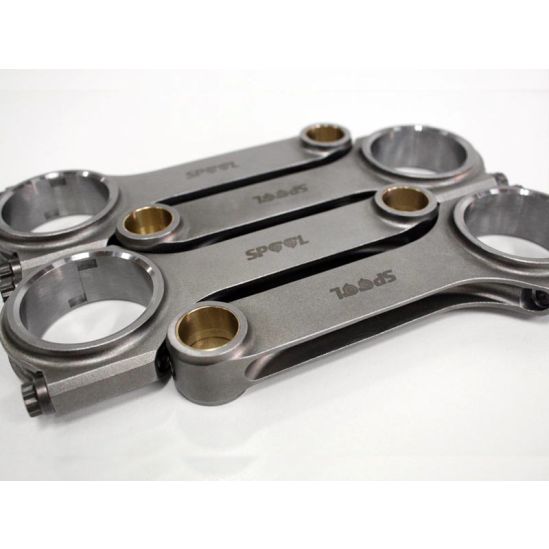

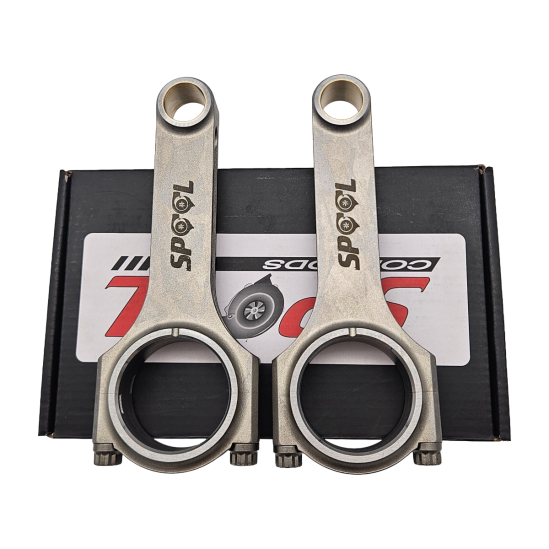

Spool Audi / VW 2.0L TFSI H Beam Conrods
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
All Spool Conrods come standard with ARP 2000 Fasteners.
These are a direct fit conrod for all Audi 2.0 TFSI EA888 engines.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
- Side oil squirters
No bearings are included but can be added (Note: ACL use the bearings for both TFSI an TSI so the bearings look narrow in TFSI conrods)
Specifications:
Small End Pin Size: 21mm
Small End Pin Width 21.89mm
Big End Bore: 50.617mm
Big End Width 24.89mm (Note: Big end width on TSI Conrods is 21.89mm)
Centre to Centre 144mm
Weight: 610g (with bolts)
| Product Name | Spool Audi / VW 2.0L TFSI H Beam Conrods |
|---|---|
| Brands | Spool |
| Engine | TFSI |
| Make | VW |
