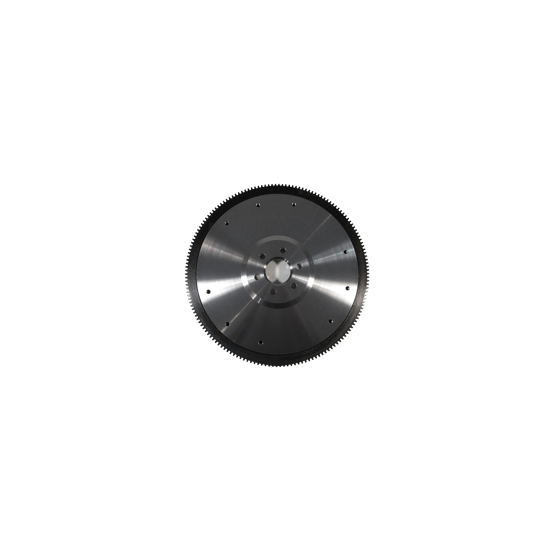

Yella Terra YT9913 FPV F6 Typhoon and Tornado Barra Flywheel
The Yella Terra YT9913 is an explosion-resistant billet steel flywheel designed specifically for Ford Performance Vehicles fitted with the turbocharged 4.0L DOHC Barra inline-six and factory AP Racing twin-plate clutch. It suits applicable FPV F6 Typhoon and Tornado models from October 2004 onward.
This is a standard-weight, neutral-balanced flywheel with a 160-tooth ring gear. Its billet steel construction provides a strong replacement for the original flywheel in compatible high-performance FPV applications while retaining the factory-style 240 mm AP Racing twin-plate clutch arrangement.
Key features
- Explosion-resistant billet steel construction
- Designed for FPV F6 Typhoon and Tornado Barra turbo models
- Drilled for the factory AP Racing twin-plate clutch
- Standard-weight design
- Neutral balance
- 160-tooth ring gear
- 301 mm outside diameter
- Six crank bolt holes
- Nine pressure-plate bolt holes
- 9.0 kg product weight
Specifications
| Part number | YT9913 |
|---|---|
| Product type | Flywheel |
| Construction | Billet steel |
| Classification | Standard weight |
| Balance | Neutral (engine balance status 0) |
| Product weight | 9.0 kg |
| Ring gear teeth | 160 |
| Outside diameter | 301 mm |
| Vehicle application | FPV F6 Typhoon and Tornado |
| Engine | 4.0L DOHC Barra turbo inline-six |
| Application date | October 2004 onward |
| Clutch pattern | Factory AP Racing twin plate |
| Clutch diameter | 240 mm |
| Crank spigot diameter | 1.75 inches |
| Crank bolt holes | 6 |
| Pressure-plate bolt holes | 9 |
| Manufacturer torque setting | 70 ft-lb |
Important fitment information
This flywheel is for applicable FPV models only and Yella Terra specifically states that it does not suit the XR6 Turbo. It is drilled for the AP Racing 240 mm twin-plate clutch fitted by FPV to the Typhoon and Tornado. Confirm the vehicle model, production date, clutch assembly, crank register and ring-gear specification before ordering. Installation and final fastener torque should be completed by a suitably qualified technician.
| Product Name | Yella Terra Ford FPV F6 Typhoon/Tornado Barra Flywheel 160T (YT9913) |
|---|---|
| Brands | Yella Terra |
| Engine | 4.0L Inline 6, Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Which vehicles does the Yella Terra YT9913 flywheel suit?
It is designed for applicable Ford Performance Vehicles including the FPV F6 Typhoon and Tornado with the 4.0L DOHC Barra turbo engine and factory AP Racing twin-plate clutch, from October 2004 onward.
Does the YT9913 flywheel suit an XR6 Turbo?
No. Yella Terra specifically states that YT9913 is for FPV Barra turbo models only and does not suit the XR6 Turbo.
Which clutch does the YT9913 use?
The flywheel is drilled for the factory 240 mm AP Racing twin-plate clutch fitted to compatible FPV Typhoon and Tornado models.
Is the YT9913 neutral balanced?
Yes. It is a standard-weight, neutral-balanced flywheel with engine balance status 0.
What are the main YT9913 specifications?
It weighs 9.0 kg and has a 160-tooth ring gear, 301 mm outside diameter, six crank bolt holes, nine pressure-plate bolt holes and a 1.75-inch crank spigot diameter.
