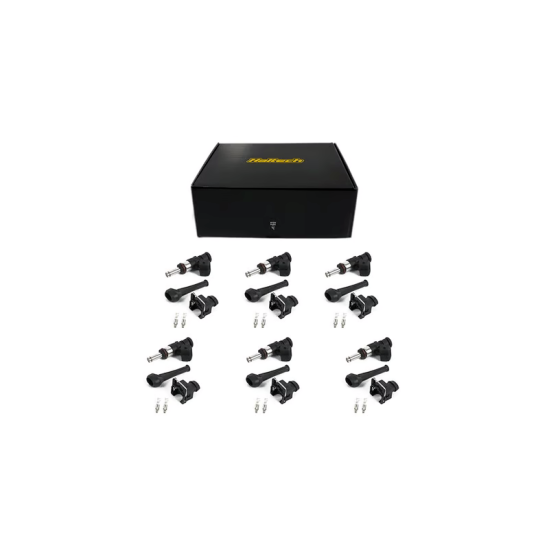

Haltech Bosch 980cc injectors - Flowmatched set of 6 (0280158040)
This flowmatched set of Bosch injectors consists of high-impedance, 980cc fuel injectors designed for high-performance engines. They deliver precise fuel flow, support E85, and feature a single-cone spray pattern for efficient combustion.
Supplied with connectors ,terminals and boots.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Bosch 1000cc (980cc-1150cc) Injector E85 0280158040 Fuel Injector Specifications
General Information
- Bosch Part Number: 0280158040
- Injector Type: EV14, high-impedance
- Application: Universal fit for custom and performance applications
- Fuel Compatibility: Compatible with all known fuels, including E85 and M100
Flow Rates
- At 3.0 bar (43.5 psi): 980 cc/min = 670 g/min = 89 lb/hr
- At 4.0 bar (58 psi): Approximately 1150 cc/min = 105 lb/hr
- Maximum Operating Pressure: Up to 8 bar (116 psi)
Electrical Characteristics
- Impedance: 12 ohms
- Voltage Range: 6 to 16.5 V
Physical Dimensions
- Body Length: Compact (EV14C) – 33.6 mm (O-ring to O-ring)
- Nozzle Tip: Extended (xT) – 24 mm
- Top & Bottom O-Rings: 14 mm Viton
- Body Diameter: 16 mm
Spray Pattern
- Type: Single cone
- Spray Angle: 30°
- Orientation: Neutral (0°)
Connector Type
- Style: Jetronic / EV1 (Minitimer)
Construction & Materials
- Internal Components: Stainless steel for corrosion resistance
- Fuel Compatibility: Suitable for gasoline, ethanol blends (E85), and methanol (with proper maintenance)
Performance Notes
- Dead Time (Latency) at 14V:
- 2 bar: 1.31 ms
- 3 bar: 1.46 ms
- 4 bar: 1.58 ms
- 5 bar: 1.75 ms
- Flow Matched:
| Product Name | Haltech Bosch 980cc injectors - Flowmatched set of 6 (0280158040) |
|---|---|
| Brands | BOSCH, Haltech |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I size injectors for my build?
Injector size depends on horsepower, fuel type and cylinder count. E85 needs larger injectors than pump fuel.
When is a surge tank needed?
High power, track use or drifting often require a surge tank to prevent fuel starvation.
What is the maximum operating pressure for the Bosch 980cc injectors?
The Bosch 980cc injectors can operate at a maximum pressure of up to 8 bar (116 psi). Ensure your fuel system is designed to handle this pressure for optimal performance.
What type of fuel is compatible with the Bosch 980cc injectors?
These injectors are compatible with all known fuels, including gasoline, ethanol blends such as E85, and methanol with proper maintenance. This versatility makes them suitable for various performance applications.
What is the dead time for these injectors at different pressures?
At 14V, the dead time for the Bosch 980cc injectors varies with pressure: 1.31 ms at 2 bar, 1.46 ms at 3 bar, 1.58 ms at 4 bar, and 1.75 ms at 5 bar. This information is crucial for tuning your engine's fuel delivery.
What is the spray pattern of the Bosch 980cc injectors?
The Bosch 980cc injectors feature a single cone spray pattern with a spray angle of 30°. This design promotes efficient fuel atomisation for improved combustion.
Are the Bosch 980cc injectors flow matched?
Yes, this set of Bosch 980cc injectors is flow matched, ensuring consistent fuel delivery across all six injectors. This is essential for maintaining balanced performance in high-performance applications.
-
-
-
-
