Raceworks 2.8L Twin Pump Fuel Surge Tank - No Pumps
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Raceworks 2.8L Twin Pump Fuel Surge Tank - ALY-083BK
The Raceworks ALY-083BK is a compact 2.8 litre fuel surge tank designed to help maintain a reliable fuel supply during hard acceleration, cornering and other conditions where fuel can move away from the factory tank pickup. It is a practical upgrade for high-demand EFI and forced-induction fuel systems, particularly where the original tank has limited baffling.
This universal black surge tank accepts up to two compatible in-tank fuel pumps. Fuel from the vehicle's lift pump and fuel pressure regulator return keeps the reservoir supplied, while the surge tank pump or pumps feed the engine. A sealed high-amperage multi-pin electrical bulkhead is incorporated into the assembly, and the internal wiring is suitable for petrol, ethanol and methanol.

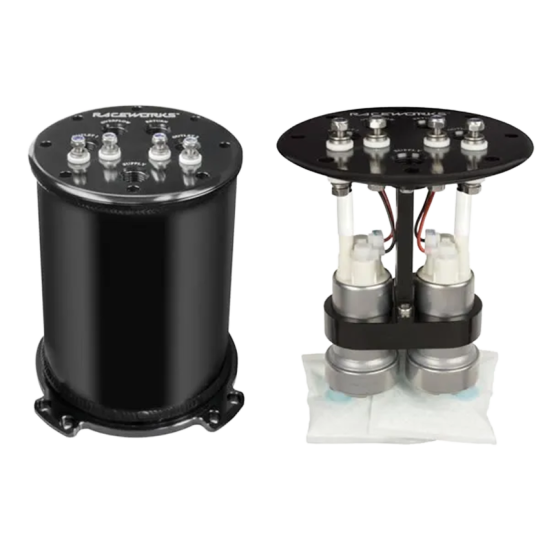

Important: This ALY-083BK version is supplied without fuel pumps. Pumps shown in the product image demonstrate the internal arrangement only and are not included.
Features
- 2.8 litre fuel capacity
- Universal fitment
- Supports one or two compatible fuel pumps
- Black finish
- Anodised aluminium pump mounting bracket
- Retains compatible pump filter socks
- Sealed multi-pin, high-amperage electrical bulkhead connector
- Internal wiring suitable for petrol, ethanol and methanol
- Allows a fuel-system upgrade without modifying the inside of the original fuel tank
Compatible Fuel Pumps
- Walbro 255: GSS341 and GSS342
- Walbro 460: F90000262, F90000267 E85 and F90000274 E85
- Raceworks: EFP-500, EFP-503, EFP-504, EFP-287, EFP-324 and EFP-452
- Raceworks EFP-057 and EFP-058 when used with an FSA-020 adapter purchased separately
- Raceworks EFP-420 and EFP-426; suitable connector plugs may be required separately
Specifications
| Part number | ALY-083BK |
|---|---|
| Capacity | 2.8 litres |
| Height | 225 mm |
| Width | 195 mm |
| Depth | 195 mm |
| Colour | Black |
| Fitment | Universal |
| Fuel pumps included | No |
Professional installation and fuel-system planning are recommended. Confirm pump, electrical, plumbing and mounting requirements before ordering.
| Product Name | Raceworks 2.8L Twin Pump Fuel Surge Tank - No Pumps |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
Are fuel pumps included with Raceworks ALY-083BK?
No. ALY-083BK is supplied as a surge tank prepared for compatible pumps, but the fuel pumps shown in the product image are for illustration only and are not included.
How many pumps can this surge tank hold?
The Raceworks ALY-083BK can be configured with one or two compatible fuel pumps.
Which fuel pumps fit the ALY-083BK surge tank?
Compatible pumps include Walbro GSS341, GSS342, F90000262, F90000267 and F90000274, plus Raceworks EFP-500, EFP-503, EFP-504, EFP-287, EFP-324 and EFP-452. Raceworks EFP-057 and EFP-058 require FSA-020 adapters; check connector requirements for EFP-420 and EFP-426.
Is this surge tank vehicle-specific?
No. It is a universal product and requires suitable mounting, fuel plumbing, wiring and system design for the vehicle.
What fuel types are the internal wiring suitable for?
The internal wiring is stated as compatible with petrol, ethanol and methanol fuels.
