Raceworks EFP-502 External 250LPH at 5 Bar High-Flow Fuel Pump
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

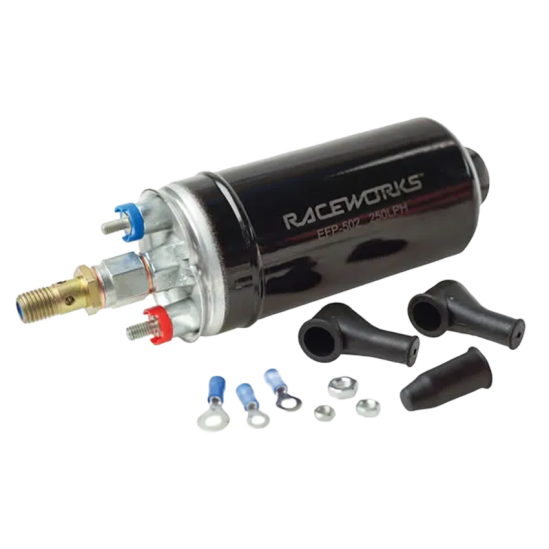

Raceworks EFP-502 External High-Flow Fuel Pump
The Raceworks EFP-502 is a high-flow external fuel pump developed for demanding performance street and track fuel systems. It is an 044-style pump designed to maintain strong fuel delivery as line pressure rises, making it suitable for high-boost, high-capacity and other high-demand engine combinations when correctly sized and installed.
Raceworks rates the EFP-502 at 310 LPH at 3 bar and 13.5 volts, while the product is identified as a 250 LPH at 5 bar pump. It is suitable for pump fuel and E85 applications and is designed to operate at fuel pressures up to 6 bar. The 60.5 mm body incorporates an external check valve.
Features
- External high-flow fuel pump
- 310 LPH at 3 bar and 13.5 volts
- 250 LPH at 5 bar
- Operates at up to 6 bar line pressure
- Suitable for pump fuel and E85
- 044-equivalent format
- 60.5 mm pump diameter
- External check valve
- Universal performance fuel-system application
Specifications
| Part number | EFP-502 |
|---|---|
| Pump type | External electric fuel pump |
| Flow at 3 bar | 310 LPH at 13.5 V |
| Flow at 5 bar | 250 LPH |
| Maximum stated line pressure | Up to 6 bar |
| Pump diameter | 60.5 mm |
| Fuel compatibility | Pump fuel and E85 |
| Check valve | External |
| Format | 044 equivalent |
| Fitment | Universal |
Installation Notes
Fuel-pump capacity must be matched to the engine's fuel demand, base pressure, boost pressure, fuel type and electrical supply. Use correctly sized wiring, relays, filtration and fuel lines, and confirm the pump's operating flow at the system's actual pressure. Raceworks offers a separate strainer kit where an in-tank installation is required.
This is a universal pump rather than a vehicle-specific direct-fit replacement. Professional fuel-system installation is recommended.
| Product Name | Raceworks EFP-502 External 250LPH at 5 Bar High-Flow Fuel Pump |
|---|---|
| Brands | Raceworks |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How much does the Raceworks EFP-502 flow?
Raceworks states 310 LPH at 3 bar and 13.5 volts. The product is also rated at 250 LPH at 5 bar, so available flow depends on operating pressure and voltage.
Is EFP-502 suitable for E85?
Yes. Raceworks lists the pump for both pump fuel and E85 applications. Ensure all other fuel-system components are also compatible with the chosen fuel.
Is this an external or in-tank fuel pump?
EFP-502 is sold as an external high-flow pump. Raceworks also offers a separate strainer kit where an in-tank installation is required.
Does the EFP-502 have a check valve?
Yes. The pump specification includes an external check valve.
Is EFP-502 a direct-fit replacement for a particular vehicle?
No. It is a universal 044-equivalent performance pump. Confirm mounting, fittings, filtration, wiring, current capacity and required fuel flow before ordering.
-
-
-
