Haltech Bosch 980cc flowmatched injectors set of 6

Haltech Bosch 980cc injectors - Flowmatched set of 6 (0280158040)

On Sale

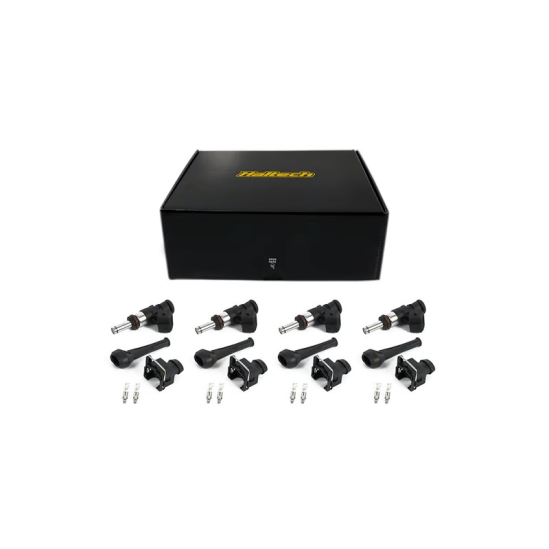

Haltech Bosch 980cc injectors - Flowmatched set of 4 (0280158040)

This flowmatched set of Bosch injectors consists of high-impedance, 980cc fuel injectors designed for high-performance engines. They deliver precise fuel flow, support E85, and feature a single-cone spray pattern for efficient combustion.

Supplied with connectors ,terminals and boots.

AUD$360.00
Haltech are out of stock - contact us for an estimated shipping date
SKU
HT-080102
+ -
Add to Wish List Share

Copy Link

AfterPay, Zip, Klana

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Find the right injectors — use our injector selector

Bosch 1000cc (980cc-1150cc) Injector E85 0280158040 Fuel Injector Specifications

 General Information

  • Bosch Part Number: 0280158040
  • Injector Type: EV14, high-impedance
  • Application: Universal fit for custom and performance applications
  • Fuel Compatibility: Compatible with all known fuels, including E85 and M100 ​

Flow Rates

  • At 3.0 bar (43.5 psi): 980 cc/min = 670 g/min = 89 lb/hr
  • At 4.0 bar (58 psi): Approximately 1150 cc/min = 105 lb/hr
  • Maximum Operating Pressure: Up to 8 bar (116 psi) ​

 Electrical Characteristics

  • Impedance: 12 ohms
  • Voltage Range: 6 to 16.5 V ​

 Physical Dimensions

  • Body Length: Compact (EV14C) – 33.6 mm (O-ring to O-ring)
  • Nozzle Tip: Extended (xT) – 24 mm
  • Top & Bottom O-Rings: 14 mm Viton
  • Body Diameter: 16 mm​

 Spray Pattern

  • Type: Single cone
  • Spray Angle: 30°
  • Orientation: Neutral (0°) ​

 Connector Type

  • Style: Jetronic / EV1 (Minitimer)​

 Construction & Materials

  • Internal Components: Stainless steel for corrosion resistance
  • Fuel Compatibility: Suitable for gasoline, ethanol blends (E85), and methanol (with proper maintenance) ​

 Performance Notes

  • Dead Time (Latency) at 14V:
    • 2 bar: 1.31 ms
    • 3 bar: 1.46 ms
    • 4 bar: 1.58 ms
    • 5 bar: 1.75 ms
  • Flow Matched:



More Information
Product Name Haltech Bosch 980cc injectors - Flowmatched set of 4 (0280158040)
Brands BOSCH, Haltech

Delivery & Freight

We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.

You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .

If you only see the Click and Collect shipping option, it means that your address was not validated correctly.

If you have issues calculating freight, please get in touch. We are happy to help.

If you are outside of Australia, you are responsible for any duty or taxes charged by your government."

Disclaimer:

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout.

If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).

How do I size injectors for my build?

Injector size depends on horsepower, fuel type and cylinder count. E85 needs larger injectors than pump fuel.

When is a surge tank needed?

High power, track use or drifting often require a surge tank to prevent fuel starvation.

What is the flow rate of the Haltech Bosch 980cc injectors?

The Haltech Bosch 980cc injectors flow 980 cc/min at 3.0 bar (43.5 psi) and approximately 1150 cc/min at 4.0 bar (58 psi). This makes them suitable for high-performance applications, especially when using E85.

What type of fuel can I use with these injectors?

These injectors are compatible with all known fuels, including gasoline, E85, and methanol, provided proper maintenance is observed. They are designed for high-performance applications and can handle the demands of various fuel types.

What is the dead time for these injectors at different pressures?

At 14V, the dead time for the injectors varies with pressure: 1.31 ms at 2 bar, 1.46 ms at 3 bar, 1.58 ms at 4 bar, and 1.75 ms at 5 bar. This latency is important for tuning and ensuring optimal fuel delivery.

Are these injectors flow matched?

Yes, this set of Haltech Bosch 980cc injectors is flow matched, ensuring consistent fuel delivery across all four injectors, which is crucial for maintaining engine performance and reliability.

What connector type do these injectors use?

The Haltech Bosch 980cc injectors use a Jetronic / EV1 (Minitimer) connector type, which is common in many performance applications, making them easy to integrate into custom setups.
