Spool Imports has brought professional injector testing and Dynamic Flow Matching in-house with an ASNU Classic GDI and ASNU Digital Flow Kit. It means our Bosch and Bosch Motorsport fuel injectors can be supplied as carefully selected, dynamically flow-matched sets, complete with test documentation.
For a performance engine, injectors should not simply share a part number or a nominal flow rating. They should deliver fuel consistently under pulsed operating conditions. That is where Dynamic Flow Matching earns its place in a properly engineered build.
What is Dynamic Flow Matching?
Dynamic Flow Matching is the process of testing injectors while they are repeatedly opening and closing at controlled pulse widths, duty cycles, engine-speed simulations and fuel pressures. The measured results are then used to select injectors that perform closely as a set.
This is different from relying only on a static flow test, where an injector is held fully open. Static flow is useful, but it does not tell the whole story. An injector in a running engine spends its life pulsing. Its response at shorter opening times and different operating points can be just as important as its maximum flow rate.
Two injectors may appear similar when held open, yet deliver different quantities of fuel when pulsed. Dynamic testing is designed to expose those differences before the injectors are fitted to the engine.
Why injector matching matters in a performance engine
Your ECU calculates fuel delivery and commands each injector accordingly, but it generally works on the assumption that injectors of the same specification behave consistently. If one injector delivers more or less fuel than the others at the same command, the cylinders can receive different mixtures.
That imbalance matters more as cylinder pressure, boost, RPM and power increase. An injector that flows low can contribute to a leaner cylinder, while an injector that flows high can produce a richer cylinder. Neither is ideal for clean combustion, predictable tuning or engine protection.
A properly flow-matched set gives the engine builder and tuner a stronger foundation:
- more consistent fuel delivery from cylinder to cylinder;
- greater confidence when tuning fuel tables;
- more stable idle and low-pulse-width operation where injector variation can be easier to see;
- more consistent combustion and engine response; and
- documented test results rather than an assumption that every injector is identical.
Flow matching does not replace correct injector sizing, quality fuel supply, sound wiring or professional tuning. It removes one important variable from the package.
Why the quality of the test equipment matters
Flow matching is only as useful as the test behind it. Results can be influenced by pressure control, fluid temperature, the selected pulse width and duty cycle, the way volume is measured and even how a technician reads a graduated tube.
Good equipment must do more than make the injectors click and fill a set of tubes. It should control the test conditions, drive the injectors consistently, measure the delivered fluid reliably and record enough information for the test to be understood and repeated.
This is especially important with modern performance injectors. Differences that look small as a percentage can still matter when an engine is operating near the limits of its fuel system. A premium matching service therefore needs a controlled process, quality equipment and clear documentation—not a quick visual comparison.

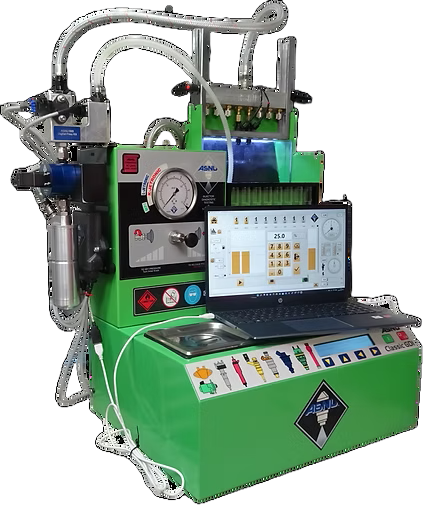

Why Spool chose the ASNU Classic GDI
The ASNU Classic GDI is a professional injector testing and diagnostic platform built to examine injector behaviour, not merely produce a single flow number. It supports manifold and gasoline direct injection applications and allows injectors to be assessed together under controlled operation.
The system enables Spool to inspect important characteristics including:
- static and dynamic injector operation;
- spray pattern, fuel distribution and atomisation;
- leak-down performance;
- individual injector behaviour within a set;
- electrical inductance; and
- operation across different pulse-width and RPM settings.
Those capabilities make the Classic GDI an excellent foundation. Spool went further by pairing it with the ASNU Digital Flow Kit.
Classic GDI plus Digital Flow Kit: the premium difference
On its own, the Classic GDI can dynamically operate injectors, display their spray patterns and compare the liquid collected in graduated flow tubes. With the Digital Flow Kit fitted, flow measurement and test control become more precise, repeatable and data-focused.
The Digital Flow Kit improves the process with:
- Digital flow measurement: flow is measured electronically, removing the need for the operator to judge liquid levels by eye.
- No residual-fluid reading error: the digital system avoids errors caused by fluid remaining in the graduated tubes between measurements.
- Automatic pressure control: the selected pressure is controlled as injector flow changes, helping maintain consistent test conditions.
- User-defined test settings: injector RPM, duty cycle and pulse width can be selected to test performance at meaningful operating points.
- Graphical set comparison: injector results can be compared against the set average or a specified target, making outliers easier to identify.
- Temperature visibility: test-fluid temperature is measured and displayed, providing valuable context because fluid temperature can affect flow.
- Recorded results: injector, vehicle and customer details can be saved, with test reports produced for documentation.
- Efficient multi-injector testing: the system can measure up to eight injectors, with ASNU stating that a typical eight-injector flow measurement takes around 30 seconds.
The result is not simply a faster version of the same test. It is a better-controlled, less operator-dependent process that gives Spool clearer data for selecting a genuinely well-matched injector set.
Documented results with your matched injector set
A premium component deserves a premium validation process. When Spool supplies a dynamically flow-matched set, documentation accompanies the injectors so the engine builder and tuner have a record of the test rather than a sticker and a vague claim.
That traceability is valuable whether you are building a responsive street car, a high-boost drag engine, a circuit car or a serious competition package. You know the injectors have been evaluated as a set before they reach your engine.
Bosch and Bosch Motorsport injectors, matched by Spool
Spool Imports offers a range of genuine Bosch and Bosch Motorsport fuel injectors for popular performance applications. Every injector set in this range can be supplied with Dynamic Flow Matching and documented results.
If you are unsure which injector size suits your engine, speak with the Spool team about your fuel type, target power, base pressure and intended use. Correct sizing comes first; Dynamic Flow Matching then helps ensure the selected injectors perform consistently as a set.
When the engine matters, do not leave cylinder-to-cylinder fuel delivery to chance. Choose Bosch or Bosch Motorsport injectors, dynamically flow matched in-house by Spool Imports.
Frequently asked questions
What are dynamically flow-matched fuel injectors?
They are injectors tested while pulsing under controlled conditions and selected so their measured fuel delivery is closely matched as a set. This better represents how injectors operate in a running engine than relying only on a fully open static-flow measurement.
Is Dynamic Flow Matching worth it for a performance engine?
Yes. Consistent injector delivery helps reduce one source of cylinder-to-cylinder fuel variation and gives the tuner a more reliable foundation. Its value increases as power, boost, RPM and engine investment rise.
Is static flow testing the same as dynamic flow testing?
No. A static test measures an injector held fully open. A dynamic test repeatedly opens and closes it using controlled pulse widths, duty cycles and simulated engine speeds. Both provide useful information, but dynamic testing reveals behaviour that a static test alone may not show.
Why is digital flow measurement better than reading flow tubes?
Digital measurement reduces operator judgement when reading liquid levels and avoids errors from residual test fluid in the tubes. Combined with automatic pressure control and recorded test settings, it supports a more repeatable and traceable matching process.
Does flow matching make an injector set safe for any power level?
No. The injectors must still be correctly sized for the engine, fuel, pressure and power target. The fuel pump, regulator, wiring, ECU calibration and overall fuel system must also be suitable. Flow matching confirms set consistency; it does not increase an injector's capacity.
Can Spool flow match Bosch and Bosch Motorsport injectors?
Yes. Spool's range of Bosch and Bosch Motorsport fuel injectors can be supplied dynamically flow matched, with documentation of the test results.
Can injectors be perfectly identical?
No two manufactured components should be assumed to be perfectly identical. The purpose of flow matching is to measure their behaviour and assemble a set whose results fall within a close, controlled range under the nominated test conditions.
Will I receive a test report?
Yes. Spool's Dynamic Flow Matching service includes documented results for the supplied matched injector set.
