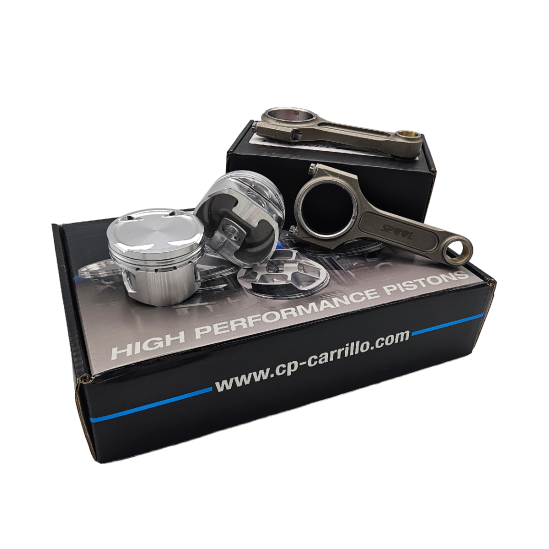

Spool Toyota 2JZ X300 Extreme I Beam Connecting Rods and CP Forged Pistons
These CP forged pistons are designed for extreme boost applications and are designed to achieve 9.0:1 compression ratio in the Toyota 2JZ engine.
Pistons are available in:
- Compression Ratio: 8.5:1, 9.0:1, 9.5:1 and10.0:1
- Bore Sizes: 86.5mm and 87mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Connecting Rods Feature:
- Application: Toyota 2JZ-GE and 2JZ-GTE Engines
- I-Beam design
- Premium 300M alloy steel construction
- Genuine 7/16" ARP 2000 fasteners included as standard
- ARP L19 fastener upgrade available
- Weight: 590g with bolts
- Side oil squirters
- Direct-fit design with no machining required
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Spool 2JZ X300 Extreme I Beams and CP Pistons |
|---|---|
| Brands | Spool |
| Engine | 2JZ |
| Make | Toyota |
