Toyota 1GR-FE Conrods and Arias Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Toyota 1GR-FE Conrod and Piston Deal
2003-present Toyota 4Runner, 2007-present Land Cruiser, 2005 to present Tacoma, 2005-2006 and 2010-present Tundra, 2007-present FJ Cruiser, and 2012-present Lexus GX 400
Arias Toyota 1GR-FE Piston
All Arias Pistons are now Manufactured by CP-Carrillo in their ultra-modern facility in California USA. ARIAS pistons have over forty-three years of forged piston innovation that has set the standard for piston performance. Founded in the workshop and on the racetrack by Nick Arias Jr. in 1969, ARIAS PISTONS blends its unique experience, state-of-the-art equipment, engineering excellence and dedicated team to produce pistons that have forged a reputation for power!
- Hi-tensile forged, not cast, billet material 2618
- CNC machined working surfaces
- Optimized crowns for efficient combustion
- Diamond-turned ellipsoidal skirt profile
- Performance street & track pistons feature lightweight, high strength construction
- Heavy duty pistons feature durable design for turbos, blowers & nitrous
| Part Number | A372501 | A372511 |
| Make | Toyota / Lexus | Toyota / Lexus |
| Engine | 1GR-FE | 1GR-FE |
| Bore Diameter | 94mm | 94.5mm |
| Bore Oversize | Standard | +0.5mm |
| Stroke | 95mm (Standard Stroke) | 95mm (Standard Stroke) |
| Compression Ratio | 10.0:1 | 10.0:1 |
| Pin Size | 0.866" / 22mm | 0.866" / 22mm |
| Included Ring Set | CPN-3701 | CPN-3721 |
| Included Pin Locks | 866x063 SWL | 866x063 SWL |
| Included Pin | 866-2250-18CP1C | 866-2250-18CP1C |
| Face Type | Dish | Dish |
| Dish cc | 17.15 cc | 17.15 cc |
| Compression Height | 1.280" / 32.5mm | 1.280" / 32.5mm |
| Brand | Arias Pistons | Arias Pistons |
| Skirt Type | Full Round | Full Round |
| Piston Material | 2618 | 2618 |
| Wrist Pin Wall Thickness | 0.180" | 0.180" |
| Wrist Pin Dimensions | .866" x 2.250" x .180" | .866" x 2.250" x .180" |
| Pin Material | 5100 Chrome Moly Steel | 5100 Chrome Moly Steel |

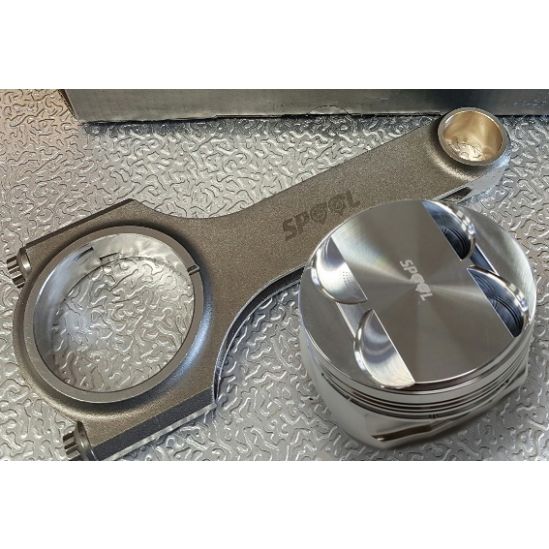

Spool H-Beam Conrods with ARP2000 Bolts
These are a direct fit conrod for all Toyota 1GR-FE - 4L V6 engines.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
Carrillo Super-A Conrod with WMC bolts
These conrods are made to order by Carrillo and take 16 weeks
|
Connecting Rod Beam Style
|
A-beam |
| Connecting Rod Length Center to Center (in.) | 6.300 in. |
| Wrist Pin Style | Floating |
| Pin End Bore Diameter | 22.000mm |
| Big End Bore Diameter (in.) | 2.3228 in. |
| Big End Width (in.) | 0.820 in. |
| Pin End Width (in.) | 0.820 in. |
| Connecting Rod Bolt Brand | WMC |
| Connecting Rod Bolt Diameter | 3/8 in. |
| Connecting Rod Bolt Material | H-11 tool steel |
| Product Name | Toyota 1GR-FE Conrods and Arias Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | 1GR-FE |
| Make | Toyota |
