Spool 2JZ-GTE 3.2 Litre Full Engine Kit (Extreme Power)

Spool 2JZ-GTE 3.2 Litre Full Engine Kit (Extreme Power)

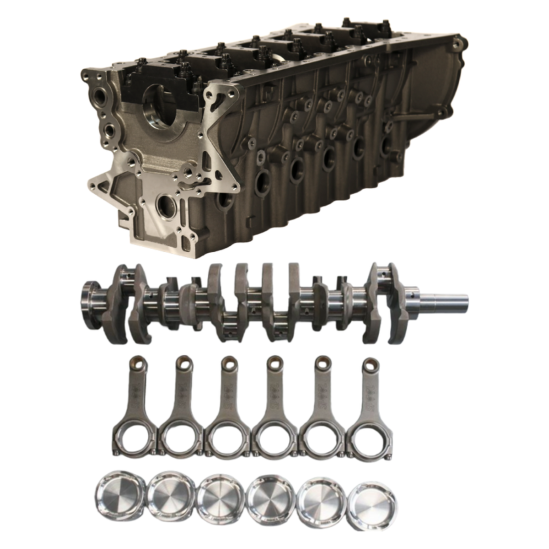

Kit Includes:

• DART Toyota 2JZ Iron Eagle Engine Block – 11mm Head Stud Machining
• Spool EB40B Billet 91mm Stroker Crankshaft
• Spool DragPro I-Beam Forged Connecting Rods with ARP-L19 Bolts
• ARP2000 bolts are available for lesser RPM requirments
• CP Custom Pistons (rings, pins and locks included)
• 300M Steel Gudgeon Pins, 0.250" Diameter supplied as standard
• Optional downgrade: 9310 0.250" or 0.200" pins for lesser power applications

CP Pistons can be ordered in a range of bore sizes and compression ratios to suit your application.

DART Iron Eagle Toyota 2JZ Engine Block

The ultimate foundation for extreme horsepower builds, the DART Iron Eagle block is designed from a clean-sheet approach to address the known limitations of the factory 2JZ block while maintaining compatibility with OEM components and accessories.

Manufactured from premium 220 BHN cast iron, the block features significantly thicker cylinder walls, deck surfaces and outer case walls to provide exceptional strength under extreme cylinder pressures and high boost. Combined with billet steel 4-bolt main caps on cylinders 1-6, the Iron Eagle block is engineered to support engine combinations exceeding 2,000 horsepower.

Supplied with 11mm blind head stud holes, this version provides improved head gasket sealing by eliminating water jacket intrusion through the head stud holes. Additional performance features include revised oil passages for improved oil flow, scalloped water jackets for enhanced cooling, screw-in freeze plugs and provisions for OEM accessories, making it the ideal choice for serious street, drag, drift and motorsport applications.

Block Specifications:

Material: 220 BHN Cast Iron Bore: 86.00mm (3.3858") Maximum Bore: 88.00mm (3.4645") Maximum Stroke: 94.00mm (Additional rod clearance may be required) Deck Height: 219.08mm (8.625") Deck Thickness: 19.05mm (0.750") Head Stud Size: 11mm Blind Head Stud Holes Main Caps: Billet Steel 4-Bolt Main Caps (#1-6) Weight: 162lb (73.5kg)

Block Features:

• Genuine DART Iron Eagle Toyota 2JZ engine block.
• Manufactured from high-strength 220 BHN cast iron.
• Precision machined with 11mm blind head stud holes.
• Billet steel 4-bolt main caps on cylinders #1-6 for maximum bottom-end strength.
• Designed to support 2,000HP+ engine combinations.
• Extra-thick siamese cylinder bores for increased rigidity.
• Reinforced deck surface for superior head gasket sealing.
• Extra-thick outer block walls for maximum strength.
• Revised oil passages for improved lubrication and stroke clearance.
• Scalloped water jackets for improved coolant flow.
• Machined for piston oil squirters.
• Screw-in freeze plugs for improved durability.
• Accepts OEM oil pan, oil filter mount, water pump, starter and rear main seal.
• Compatible with wet or dry sump oiling systems.
• Ideal for extreme street, drag racing, drift and circuit racing applications.

Performance Benefits

The increase in stroke to 91 mm raises engine capacity to approximately 3.2 litres, delivering substantial gains in usable performance:

• Up to 50% increase in torque (application dependent)

• Significantly improved low and mid-range power

• Earlier turbo spool and stronger throttle response

• Increased peak power potential

This makes the 3.2L EB40B stroker combination ideal for large-frame turbo builds where torque and drivability are just as important as top-end power.

Important Fitment Note

Note: Depending on the block casting and rod choice, minor conrod-to-block clearancing may be required during assembly.
