Spool Ford Barra / XR6 Turbo / 4.0L DOHC – 4.2L 103mm Stroker Kit
We carry a limited range of pistons for this kit in stock. If we don't have your exact requirements it will take 6-8 weeks to have pistons made.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool 4.0 Litre DOHC Barra / XR6 4.2L 103mm Stroker Kit
The 103mm Stroke Crankshaft increases cubic capacity to 4.2 Litres and comes with the Drag Pro I Beam Custom Conrods
These kits may require a custom pistons which will take 14-20 weeks once ordered

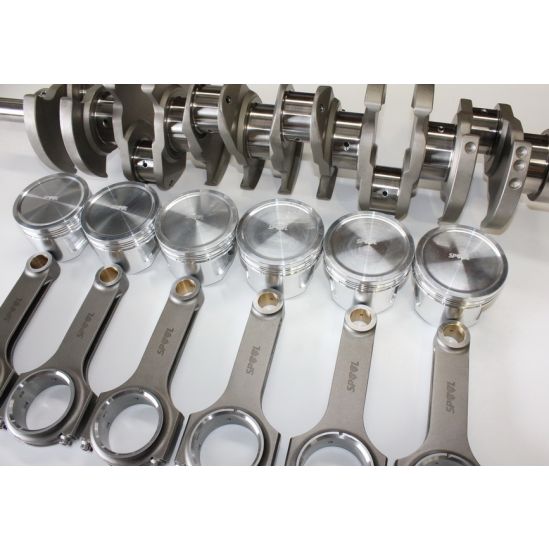

This Kit includes the following quality parts:
- Spool Billet 4340 Nitrided Full Counterweight Crankshaft - 103mm Stroke
- Spool Drag Pro I beam custom conrods 156mm c/c with ARP2000 7/16 bolts (ARP L19 Bolts available as an upgrade)
- Spool Custom CP Extreme Boost Forging 2618 Forged Pistons
- 9310 0.200" / 5mm Wall Thickness Gudgeon Pins standard (0.250" Pins available as an upgrade)
- We can arrange custom CP pistons to any bore size and comp ratio - custom piston surcharge applies
Note: Clearancing of the cylinder block is sometimes required.
| Product Name | Spool Ford Barra / XR6 Turbo / 4.0L DOHC – 4.2L 103mm Stroker Kit |
|---|---|
| Brands | Spool |
| Engine | Barra XR6 |
| Make | Ford |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. For Australia, you need to select from ALL dropdowns (Country, State, Suburb, and Postcode) for the quote system to work. (There may be a small delay as it searches.) For international orders, you only need to select the Country to get a quote, but more details are required at checkout to complete the order.
If you have issues calculating freight, please get in touch. The most common reason for issues is that the postcode does not match the suburb, or the suburb is spelled differently from what the carriers have.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing sales@spoolimports.com, messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
-
