Nissan RB25NEO Spool Drag Pro I Beam Conrods and CP Forged Pistons

USD$1,960.00
In stock
SKU
SPL-RB25NEO-DP-CP
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

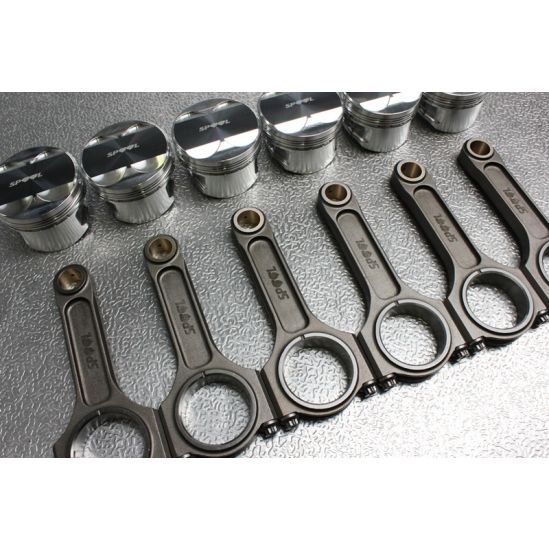

Spool RB25 NEO Drag Pro I Beam Forged Connecting Rods and CP Forged Pistons.

Pistons are available in:

  • Compression Ratio: 9.0:1
  • Bore Sizes: STD, +0.5mm and 1mm
  • Pistons come with rings, gudgeon pins and pin locks

Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit conrod for all Nissan RB25 NEO engines.

  • Upgraded ARP2000 7/16 bolts
  • Increased strength to the beam
  • Increased strength around the fasteners / bolts
  • Increased strength around the gudgeon pin

Spool Connecting Rods Feature:

  • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

CP Pistons standard features include:

  • 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
  • Deep valve reliefs accommodate high lift camshafts
  • Larger valve reliefs for +1mm valve sizes
  • Custom skirt cam and barrel design
  • Accumulator grooves
  • High strength aluminium forgings
  • High performance rings
  • Fully CNC machined and balanced to +/- 1 gram
  • Wrist pins included
  • Double pin oilers force fed from oil ring groove
  • Pick lock grooves for easy lock removal
  • Pin fitting included

Note: We recommend Joe Gibbs Break in Oil for all new engines.

More Information
Product Name Nissan RB25NEO Spool Drag Pro I Beam Conrods and CP Forged Pistons
Brands Spool
Engine RB25 NEO
Make Nissan
