Nissan RB25NEO Rebuild Kit with Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons

USD$2,113.68
In stock
SKU
REB-RB25-NEO-DP-Ross
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Nissan RB25NEO Rebuild Kit with and Spool Drag Pro I Beams /Ross Racing Forged Pistons

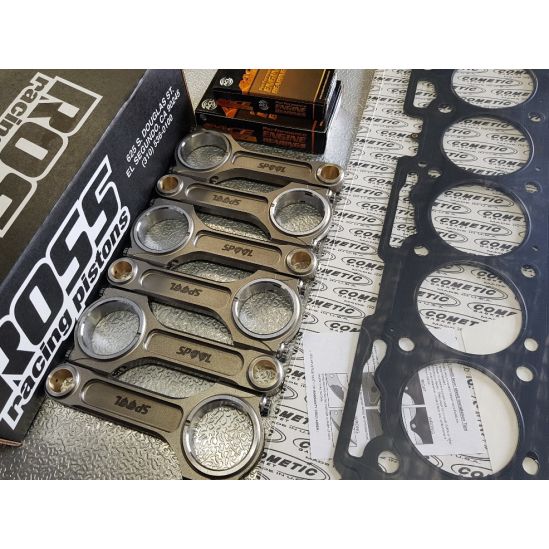

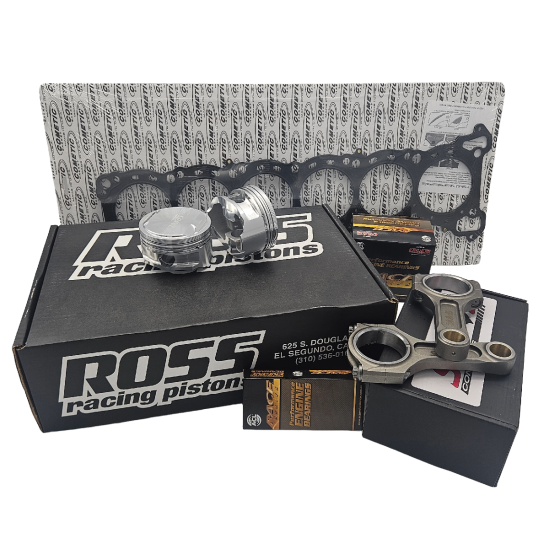

This Rebuild Kit includes the following quality parts:

  • Spool Drag Pro I Beam Connecting Rods (ARP 2000 7/16 Bolts)
  • Ross Forged Pistons (Rings, Pins and Locks Included)
  • Cometic MLS Head Gasket
  • ACL Race Series Main Bearings - STD or 0.25mm
  • ACL Race Series Big End Bearings - STD or 0.25mm

Ross Racing Pistons Feature:

These Pistons are custom made for Spool and rated at 900-1000hp by Ross Racing Pistons.
With upgrade pins Ross rate these pistons up to 250 bhp per cylinder.

  • Compression Ratio:9.0:1
  • Bore Sizes: +0.5mm and +1mm
  • Pistons come with rings
  • 0.225” wall Carbon steel
  • Forged 2618
  • Locks

All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.

This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.

Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit conrod for all Nissan RB25DET engines.

  • Upgraded ARP2000 7/16 bolts
  • Increased strength to the beam
  • Increased strength around the fasteners / bolts
  • Increased strength around the gudgeon pin

Spool Connecting Rods Feature:

  • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout. If you are unsure get in touch with sales@spoolimports.com

Note: We recommend Joe Gibbs Break in Oil for all new engines.

More Information
Product Name Nissan RB25NEO Rebuild Kit with Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons
Brands Spool
Engine RB25 NEO
Make Nissan
