Nissan SR20DET Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

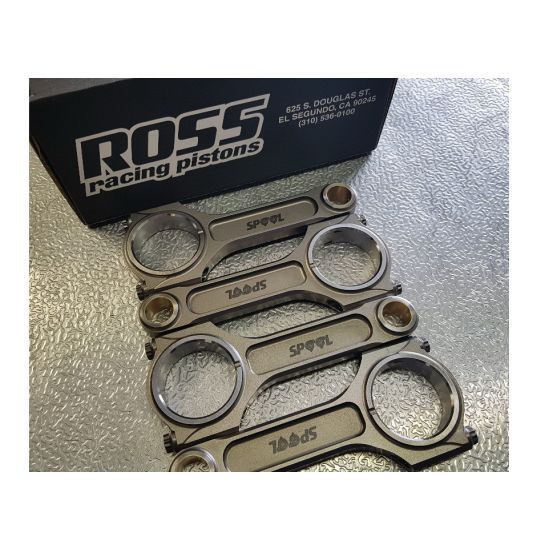

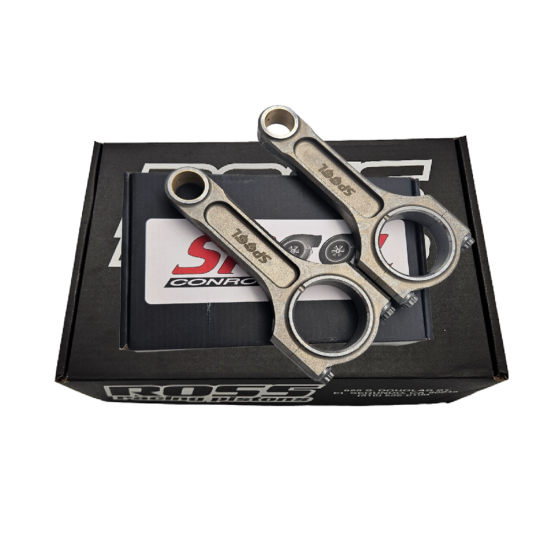

Nissan SR20DET Spool Drag Pro I Beam Forged Connecting Rods and Ross Racing Forged Pistons
This Package includes:
- Spool Drag Pro I Beam Conrods (ARP 2000 7/16 bolts)
- Custom Ross Racing Forged Pistons (Rings, Pins and Locks)
Ross Racing Pistons:
These Pistons are custom made for Spool and rated at 650 – 700hp by Ross Racing Pistons.With upgrade pins Ross rate these pistons up to 250 bhp per cylinder.
- Compression Ratio:9.0:1
- Bore Sizes: 86.5mm or 87mm
- Pistons come with NPR Gas Nitrided top ring, three pcs. oil
- 0.225” wall Carbon steel ( upgrade to H13 available )
- Forged 2618
- Locks
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
This material has less than 1% silicon particulate content. High silicon content pistons (forged from 4032 or MS75) will not stand up to the most extreme stress placed on many racing pistons. If a crack starts to form in a high silicon piston it will continue until the piston experiences a catastrophic failure. Simply stated, adding sand to the aluminum only makes it more brittle. In the rare instance of a 2618-T61 piston cracking, the crack will continue to an area where the stress is not as great and will then stop. Another advantage of 2618-T61 over the high silicon pistons is the ability to keep its shape under extreme pressure and high RPM's. "Skirt Shrinking" is not a problem with ROSS Racing Pistons.
Spool Drag Pro I Beam Connecting Rods are the ultimate high strength direct fit conrod for all Nissan SR20 engines.
- Upgraded ARP2000 7/16 bolts
- Increased strength to the beam
- Increased strength around the fasteners / bolts
- Increased strength around the gudgeon pin
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout. If you are unsure get in touch with sales@spoolimports.com.
Note: We recommend Joe Gibbs Break in Oil for all new engines.
Product Name | Nissan SR20DET Spool Drag Pro I Beam Conrods and Ross Racing Forged Pistons |
---|---|
Brands | Spool |
Engine | SR20 |
Make | Nissan |
