Nissan FJ20 Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

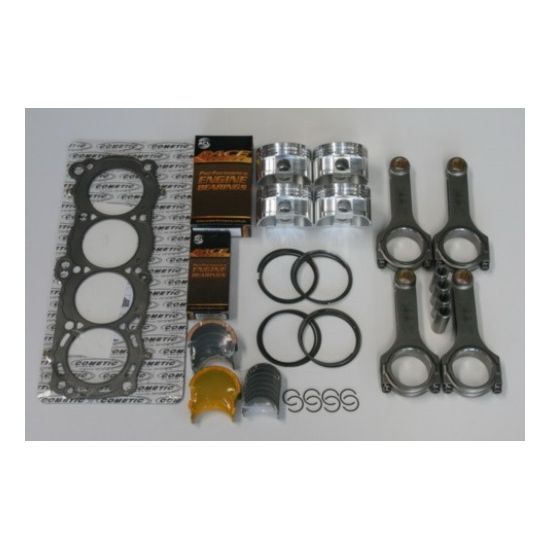

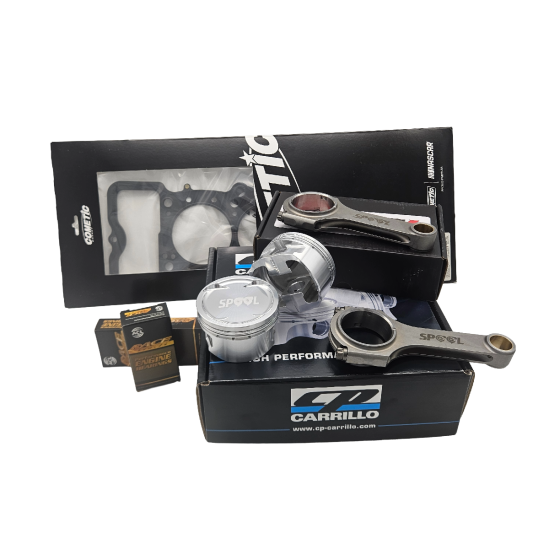

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- CP Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- Main Bearings - STD or 0.25mm ( Not ACL race )
- Big End Bearings - STD or 0.25mm ( Not ACL race )
Pistons are available in:
- Compression Ratio: Custom Pistons so any comp ratio
- Bore Size: Any bore size is available
- Pistons come with rings, gudgeon pins and pin locks
- Once ordered pistons take 4-5 weeks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
CP Pistons standard features include:
- 5310 gudgeon pins (9310 thicker wall thickness pins are available as an upgrade)
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminium forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan FJ20 Rebuild Kit with Spool H Beam Conrods and CP Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | FJ20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended clearances for the CP pistons in the FJ20 rebuild kit?
The recommended bore clearance for CP pistons typically ranges from 0.0015" to 0.0025" depending on the application and intended use. It's crucial to consult with your engine builder for specific clearances based on your setup and the type of fuel you plan to use.
Can I upgrade the ARP fasteners in the Spool H Beam conrods?
Yes, the Spool H Beam conrods come standard with ARP2000 bolts, but you can upgrade to L19 fasteners for enhanced strength and reliability, especially in high-performance applications.
What is the recommended torque specification for the ARP2000 bolts in this kit?
For the ARP2000 bolts used in the Spool H Beam conrods, the recommended torque specification is around 55 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate guidelines.
What type of head gasket is included in the FJ20 rebuild kit?
The kit includes a Cometic MLS (Multi-Layer Steel) head gasket, which is suitable for high-performance applications. Ensure that the cylinder head and block surfaces have the correct RA finish for optimal sealing.
How long does it take to receive custom CP pistons after ordering?
Once ordered, the custom CP pistons typically take 4-5 weeks to manufacture. Be sure to specify your desired compression ratio and bore size when placing your order.
