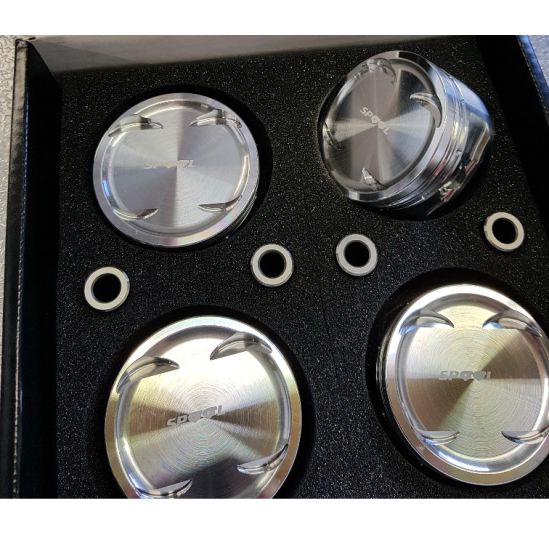

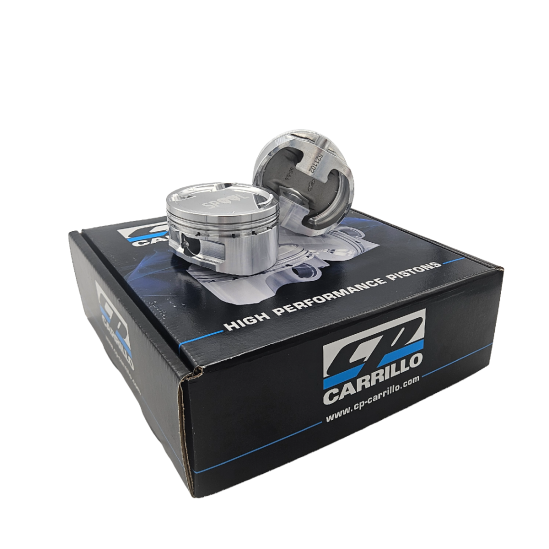

Spool CP Custom Nissan FJ20DET Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
These Spool CP Custom Pistons are available in:
- Bore: +0.5mm
- Comp Ratio: 9.0:1
- 5310 Series Pins
Note: Also available in any bore size and comp ratio – please email for details.
CP Pistons standard features include:
- 5310 Gudgeon Pins (9310 thicker wall thickness pins are available as an upgrade)/li>
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminum forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
| Product Name | Spool CP Custom Nissan FJ20DET Pistons |
|---|---|
| Brands | CP Carrillo |
| Engine | FJ20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the recommended bore size for the Spool CP Custom Nissan FJ20DET Pistons?
These pistons are available in a +0.5mm bore size. Custom bore sizes can be requested by contacting us directly.
What is the compression ratio of the Spool CP Custom Nissan FJ20DET Pistons?
The standard compression ratio for these pistons is 9.0:1. Other compression ratios can be customised upon request.
What materials are used in the construction of these pistons?
The Spool CP Custom Nissan FJ20DET Pistons are made from high strength aluminium forgings, ensuring durability and performance.
Do these pistons come with wrist pins, and what type are they?
Yes, these pistons include 5310 series gudgeon pins. An upgrade to thicker wall 9310 pins is also available.
What features do these pistons have to accommodate high-performance setups?
These pistons feature deep valve reliefs for high lift camshafts, larger valve reliefs for +1mm valve sizes, and custom skirt cam and barrel designs for optimal performance.
