Nissan RB20DET Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

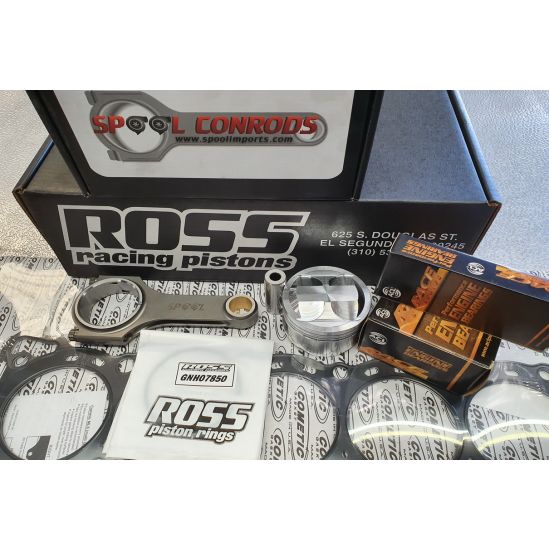

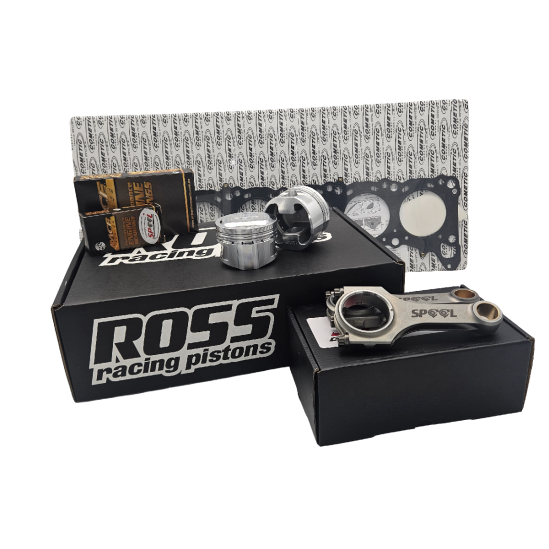

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- Ross Forged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gasket
- ACL Race Series Main Bearings - STD or 0.25mm
- ACL Race Series Big End Bearings - STD or 0.25mm
Pistons are available in:
- Compression Ratio: 9.0:1
- Bore Size: 78.5mm and 79mm
- Pistons come with rings, gudgeon pins and pin locks
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
Ross Racing Pistons:
These Pistons are custom made for Spool and rated at 900-1000hp by Ross Racing Pistons.With upgrade pins Ross rate these pistons up to 250 bhp per cylinder.
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Nissan RB20DET Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons |
|---|---|
| Brands | Spool |
| Engine | RB20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the Ross Racing pistons in the RB20DET rebuild kit?
For the Ross Racing pistons, you should aim for a bore clearance of approximately 0.0015" to 0.0025". This ensures proper thermal expansion and prevents piston seizure under high load conditions. Always verify with your specific engine setup and conditions.
What is the recommended torque specification for the ARP2000 bolts included with the Spool conrods?
The ARP2000 bolts should be torqued to around 55 ft-lb when using ARP Ultra-Torque lubricant. Always ensure to follow ARP's latest instructions for the most accurate specifications.
What compression ratio options are available with the Ross pistons in this kit?
The Ross pistons in the RB20DET rebuild kit are available with a compression ratio of 9.0:1. This ratio is suitable for a balance of performance and reliability, especially when tuned for boost.
Do the conrods require any specific machining before installation?
Yes, the Spool H Beam conrods may require big-end honing to achieve the correct fit on the crankshaft journals. It's essential to check the clearances and ensure proper fitment before installation.
What type of head gasket is included in the RB20DET rebuild kit?
The kit includes a Cometic MLS (Multi-Layer Steel) head gasket, which is designed for high-performance applications. Ensure the cylinder head and block surfaces are finished to the correct RA surface finish for optimal sealing.
