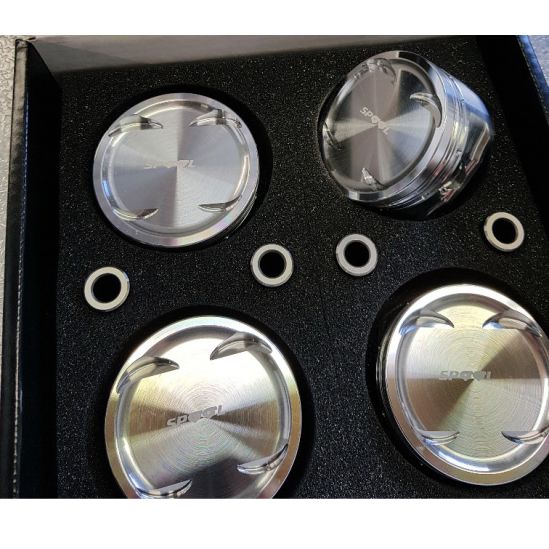

Spool CP Custom Nissan FJ20DET Stroker Pistons
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
These Spool CP Custom Pistons are available in:
- Bore: +0.5mm
- Comp Ratio: 9.0:1
- Stroke: 88mm
- 9310 Series Pins
Note: Also available in any bore size and comp ratio – please email for details.
CP Pistons standard features include:
- 9310 Gudgeon Pins
- Deep valve reliefs accommodate high lift camshafts
- Larger valve reliefs for +1mm valve sizes
- Custom skirt cam and barrel design
- Accumulator grooves
- High strength aluminum forgings
- High performance rings
- Fully CNC machined and balanced to +/- 1 gram
- Wrist pins included
- Double pin oilers force fed from oil ring groove
- Pick lock grooves for easy lock removal
- Pin fitting included
| Product Name | Spool CP Custom Nissan FJ20DET Stroker Pistons |
|---|---|
| Brands | CP Carrillo |
| Engine | FJ20 |
| Make | Nissan |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What information do I need to match these pistons to my engine?
You need the engine code, bore size, stroke, rod length, pin diameter and target compression ratio. These determine the correct piston compression height and crown design.
How should ring gaps be set for these pistons?
Ring gaps must be set by your engine builder based on fuel type, boost level and the intended rpm range. Forced-induction engines usually require larger gaps.
Are forged pistons suitable for street engines?
Yes. Forged pistons handle detonation and high cylinder pressure better than cast units. Your builder should set the piston-to-bore clearance to suit your application.
What is the recommended bore clearance for the Spool CP Custom Nissan FJ20DET Stroker Pistons?
The recommended bore clearance for these pistons typically ranges from 0.0015" to 0.0025". However, it is essential to consult with your engine builder to determine the exact clearance based on your specific application and tolerances.
Can I use these pistons with a higher compression ratio?
Yes, these pistons are available in various bore sizes and compression ratios. If you require a different compression ratio, please contact us directly to discuss your specific needs.
What type of rings are included with the Spool CP Custom Pistons?
These pistons come with high-performance rings designed to provide optimal sealing and durability under high-stress conditions. Ensure that the ring gaps are set correctly for your application.
Do these pistons require any special machining?
Yes, the pistons may require specific machining such as bore honing and ring gap setting to ensure proper fitment and performance. Always consult with your engine builder for the best practices tailored to your setup.
What is the weight tolerance for these pistons?
The Spool CP Custom Pistons are fully CNC machined and balanced to a tolerance of +/- 1 gram, ensuring consistency and reliability in performance. This precision is crucial for maintaining balance in the rotating assembly.
