Choose by engine family and finished bore

  • 5.7L Gen III LS1 / LS6: nominal 3.898-inch bore; listed 3.905 (+.007) and 3.915 (+.017) options.
  • 6.0L LS2 / L76 / L77 / Holden Gen-IV L98: nominal 4.000-inch bore. L98 here means the Holden Gen-IV 6.0L engine, not the older Chevrolet Gen-I L98.
  • 6.2L LS3 / L92 / L99: nominal 4.065-inch bore.

These names group the bore families. They do not make every piston or other kit component interchangeable between engines, years or cylinder heads. Choose the exact bore, stroke, rod length, pin and head geometry for your build. Larger-bore options need individual block and gasket checks.

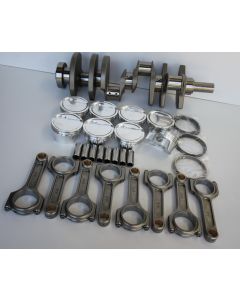

LS1, LS2 & LS3 4.000" Stroker Rebuild Kit

This is Spool Imports' forged 4.000-inch stroker rebuild package for GM/Holden LS1, LS2 and LS3 engines. It combines CP Bullet forged pistons, Spool connecting rods, ACL Race Series main and conrod bearings and Cometic MLS head gaskets for performance bottom-end builds.

Note: this rebuild package does not include a crankshaft. If you need a complete 4.000-inch rotating assembly with stroker crankshaft, see our GM LS 5.7/6.0 stroker kit.

This rebuild Kit includes the following quality parts:

  • CP Bullet Forged 2618 Pistons ( rings, Pins and Locks included ) – pick options from drop down

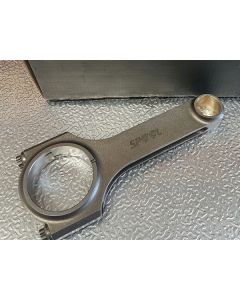

  • Spool H Beam Con Rods with 7/16 ARP 2000 Bolts – or upgrade to Drag Pro I Beam Conrods with 7/16 ARP 2000 Bolts
  • L19 Bolt upgrade option available in drop down
  • Gudgeon pin upgrade option available in drop down
  • ACL race Series B/E Bearings
  • ACL race series main Bearings
  • 2 x Cometic MLS Gaskets

Use the table below to find your required specifications and select from dropdown above.

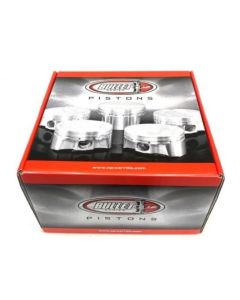

CP Bullet Series Pistons

Try our new LS Piston Finder to help select the right piston. Click here

Chevrolet LS 4.000" Stroke (15°Heads) with 6.125" Connecting Rods

CP part numberPiston specification (dimensions in inches)Source application details
BLS1002-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS1 Dish -18.2cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 68cc head
BLS1004-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS2 Dish -27.8cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 63cc head
BLS1005-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -12.7cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1006-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS2 Dish -27.5cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 64cc head
BLS1006-040Bore: 4.040 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.2:1Chevy LS2 Dish -27.5cc All std 15 deg/ L92 4.040 bore, 4.000 stroke, 6.125 rod 9.2 to 1 Comp with 64cc head
BLS1007-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.9:1Chevy 415ci LS3 STD 15deg / L92 4.065 Bore -11.2CC Dish
BLS1007-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.9:1Chevy 416ci LS3 All 15 degree / L92 4.070 Bore 1.110 CH -11.2cc Dish
BLS1007-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.2:1Chevy LS3 Dish -11.2cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 10.0 to 1 Comp with 70cc head
BLS1007-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.2:1Chevy LS3 Dish -11.2cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 10.2 to 1 Comp with 70cc head
BLS1007-030NABore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head N/A
BLS1007-080NABore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.5:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 64cc head N/A
BLS1008-125Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -17.4cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1009-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.0:1Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 11.0 to 1 Comp with 65cc head
BLS1010-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1010-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1111-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.105 / C/R: 11.5:1Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1113-125Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 11.3:1Chevy LS2 Flat top -3.8cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 11.3 to 1 Comp with 70cc head
BLS1113-130Bore: 4.130 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 11.3:1 / Larger head gasket required - confirm with SpoolChevy LS2 Flat top -3.8cc All std 15 deg/ L92 4.130 bore, 4.000 stroke, 6.125 rod 11.4 to 1 Comp with 70cc head
BLS1115-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 66cc head
BLS1115-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 9.1 to 1 Comp with 66cc head
BLS1115-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.0:1Chevy LS3 Dish -27.4cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 66cc head
BLS1117-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.5:1Chevy LS2 Dish -8cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1117-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Ref C/R: 10.5:1 with 68cc headsChevy LS2 Dish -8cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1117-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 10.3:1Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1119-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.3:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 11.3 to 1 Comp with 68cc head
BLS1123-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.5:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 66cc head
BLS1123-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 11.6:1Chevy LS3 Flat top -2.7cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 11.6 to 1 Comp with 66cc head
BLS1125-060Bore: 4.125 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / C/R: 9.5:1Chevy LS2 Dish -22.2cc All std 15 deg/ L92 4.125 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 68cc head
BLS1126-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Ref C/R: 9.5:1 with 70cc headsChevy LS2 Dish -14.5cc All std 15 deg/ L92 4.005 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1128-015Bore: 4.080 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / C/R: 9.1:1Chevy LS3 Dish -25.1cc All std 15 deg/ L92 4.080 bore, 4.000 stroke, 6.125 rod 9.1 to 1 Comp with 70cc head
BLS1130-065Bore: 4.130 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.105 / C/R: 10.5:1 / Larger head gasket required - confirm with SpoolChevy LS3 Dish -14.2cc All std 15 deg/ L92 4.130 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1005-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -12.7cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 10.3 to 1 Comp with 64cc head
BLS1146-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS -20cc Dish All 15 degree/L92 4.005 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head
BLS1002-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Dish -18.2cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 9.2 to 1 Comp with 68cc head
BLS1004-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -27.8cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 9.0 to 1 Comp with 63cc head
BLS1009-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 11.2 to 1 Comp with 65cc head
BLS1010-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 11.5 to 1 Comp with 65cc head
BLS1020-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -8cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 68cc head 30psi 1500hp
BLS1021-030SDBore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -13.4cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 10.35 to 1 Comp with 64cc head
BLS1117-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -8cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head 30psi 1500hp
BLS1123-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 416ci LS All 15 degree/L92 Bore 4.075 CH 1.110 Stroke 4.000 Rod 6.125 11.6 CR Flat Head 66c
BLS1126-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -14.5cc All std 15 deg/ L92 4.010 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1126-020Bore: 4.020 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Dish -14.5cc All std 15 deg/ L92 4.020 bore, 4.000 stroke, 6.125 rod 9.5 to 1 Comp with 70cc head
BLS1131-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS3 Dome +11.8cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 13.5 to 1 Comp with 68cc head
BLS1133-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy 409ci LS L92 4.030 bore 1.115 CH 4.000 stroke 6.125 rod 13:1 CR with 68cc head
BLS1133-045Bore: 4.045 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS2 Dome +10cc All std 15 deg/ L92 4.045 bore, 4.000 stroke, 6.125 rod 13.0 to 1 Comp with 68cc head
BLS1137-005Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.070 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 70cc head
BLS1137-010Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.075 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 70cc head
BLS1137-STDBore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.115 / Pin: .927 x 2.250Chevy LS3 Dish -8.6cc All std 15 deg/ L92 4.065 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 70cc head
BLS1142-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy All LS 15 degree/L92 4.005 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.5mm, 1.5mm, 3.0mm rings
BLS1142-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS All 15 degree/L92 4.010 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.5mm, 1.5mm, 3.0mm rings
BLS1142-030Bore: 4.030 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS2 Flat top -2.7cc All std 15 deg/ L92 4.030 bore, 4.000 stroke, 6.125 rod 11.1 to 1 Comp with 68cc head
BLS1142-065Bore: 4.065 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 415ci All LS 15 degree / L92 Bore 4.065 CH 1.110 Stroke 4.000 Rod 6.125 Flat Top 68cc Head
BLS1142-070Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 416ci All LS 15 degree / L92 Bore 4.070 CH 1.110 Stroke 4.000 Rod 6.125 Flat Top 68cc Head
BLS1142-075Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 417ci All LS 15 degree/L92 Bore 4.075 CH 1.110 Stroke 4.000 Rod 6.125 CR 11.3 FT Flat Top 68cc Head
BLS1143-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 10.5 to 1 Comp with 68cc head
BLS1143-017Bore: 3.915 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS1 Flat top -2.7cc All std 15 deg/ L92 3.915 bore, 4.000 stroke, 6.125 rod 10.6 to 1 Comp with 68cc head
BLS1146-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy LS -20cc Dish All 15 degree/L92 4.010 bore 1.110 CH 4.000 stroke 6.125 rod 9:2 CR with 68cc head
BLS1148-005Bore: 4.005 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci All LS 15 degree/L92 Bore 4.005 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLS1148-010Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci Al LS 15 degree/L92 Bore4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLS1148-075Bore: 4.075 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250Chevy 403ci All LS 15 degree/L92 Bore4.075 CH 1.110 Stroke 4.000 Rod 6.125 CR 12 Dome Head 68cc
BLSR1007-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS L92/All 15 degree Heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, -11.2cc dish, 1.2mm, 1.2mm, 3.0mm rings
BLSR1115-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy All LS 15 degree/L92 heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1117-010(BLSR Race) / Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy 403ci LS L92/All 15 degree Bore 4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 10.5 Dish Head 68cc
BLSR1123-005(BLSR Race) / Bore: 4.070 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS All 15 degree/L92 heads, 4.070 bore, 4.000 stroke, 6.125 rod, 1.110 CH, 1.2mm, 1.2mm, 3.0mm rings
BLSR1142-010(BLSR Race) / Bore: 4.010 / Stroke: 4.000 / Rod: 6.125 / Comp Height: 1.110 / Pin: .927 x 2.250 / Rings: 1.2 x 1.2 x 3.0mmChevy LS 404ci All 15 degree/L92 Bore 4.010 CH 1.110 Stroke 4.000 Rod 6.125 CR 11 Flat Top Head 68cc
BLS1018-007Bore: 3.905 / Stroke: 4.000 / Rod: 6.125 / Dish: -8.1cc / Ref C/R: 10.0:1 with 68cc headsChevy LS1 Dish -8.1cc All std 15 deg/ L92 3.905 bore, 4.000 stroke, 6.125 rod 10.0 to 1 Comp with 68cc head



Please note: All care is taken to provide the correct specifications; however Spool Imports is not responsible for any incorrect specifications listed. It is important to confirm your specifications with other available manufacturer resources before ordering any parts for an engine. If you need more information please contact [email protected]

CP Bullet Features Include:

    • Pistons manufactured from 2618 alloy for strength and durability
    • Balanced to + or – 1 gram
    • Dual forced pin oilers
    • Contact reduction grooves
    • Accumulator Grooves
    • Contemporary ring set included (Comes standard with 1.5mm x 1.5mm x 3.0mm ring pack that consists of High-grade Steel Gas Nitrided barrel faced tops with Taper Hook Groove Napier second rings and a 3-piece soft nitrided rail flex vent oils, specially designed for severe duty applications such as nitrous blowers and turbo engines.)
    • Forged side relief
    • Chromoly wrist pins with wire locks
    • FEA designed forging
    • Tight tolerances
    • USA made

Spool Connecting Rods Feature:

    • ARP 2000 fasteners (L19 fasteners are available as an upgrade)
    • High tensile 4340 forged steel
    • 2 Piece forging
    • Hardness of HRC36-42
    • Dowelled caps for precision alignment
    • X-RAY & Sonic tested
    • Quenching and heat treated
    • Shot peened
    • 100% Magnafluxed
    • Weight Matched Sets +/- 1 gram
    • Vacuum degassed to remove impurities

Note: Clearancing of the cylinder block is sometimes required.

Bullet and BLSR Race piston options

The listed ordinary Bullet pistons use a 1.5 / 1.5 / 3.0mm ring pack. The listed BLSR Race options use a matching 1.2 / 1.2 / 3.0mm ring pack. Rings, pins and locks are included with the selected piston set. BLSR upgrade prices are shown in the selector; no separate ring-pack surcharge is added. Use the rings and clearances specified for the actual piston, not an interchangeable generic ring pack.

Confirm the block and final bore with your engine builder before ordering. The finished bore, piston clearance, deck height, piston-to-valve clearance, crankshaft, reluctor and bearing arrangement must suit the complete build. Piston availability does not establish an approved overbore for every block. The selected head-gasket opening must be larger than the finished cylinder bore and must clear its chamfer and chamber outline.

4.130-inch cylinder-bore options: a 4.130-inch gasket opening provides no diametral clearance. Confirm a suitable larger-opening gasket with Spool Imports before ordering that combination. Do not use an equal-size or smaller gasket opening.

Piston selection: Match the measured block bore, stroke, 6.125-inch rod and actual cylinder-head geometry. Large-bore options require a suitable block and matching head-gasket bore. AFR/Brodix 12-degree options, where listed, require those specific heads. BLSR Race options use 1.2/1.2/3.0mm rings and carry the displayed upgrade charge; use the matching supplied ring set. Compression ratios are reference figures and depend on the complete engine combination.
