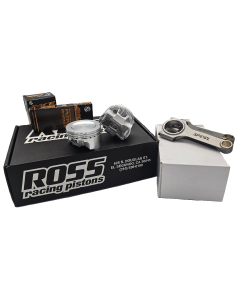

Holden ECOTEC L67 Turbo/Supercharged Rebuild kit with Spool H Beam Conrods and Ross Racing Pistons
SUITS HOLDEN L67 ECOTEC SUPERCHARGED
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods
- Ross Forged Turbo/Supercharged Pistons (Rings, Pins and Locks Included)
- Cometic MLS Head Gaskets 3.840" bore, .040" thickness
- ACL Race Series Main Bearings
- ACL Race Series Big End Bearings
- Bolt Upgrade to ARP L19 available on drop downs
Pistons are available in:
- Bore Sizes: +0.020" / +.5mm (3.820")
- Dish Volume: -11.3cc
- Weight: 445grams
- Pin: 0.905"
- Pistons come with rings, gudgeon pins and pin locks
- Forged 2618
Ross Racing Pistons:
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities
| Product Name | Holden ECOTEC L67 Turbo/Supercharged Rebuild kit with Spool H Beam Conrods and Ross Racing Pistons |
|---|---|
| Brands | Spool |
| Engine | Buick V6, Ecotech V6 |
| Make | Holden |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended bore clearances for the Ross Racing Pistons in this rebuild kit?
For the Ross Racing Pistons, a typical bore clearance of 0.0030" to 0.0035" is recommended for optimal performance. However, exact clearances should be determined by the engine builder based on the specific application and intended use.
What is the proper torque specification for the ARP bolts included in the Spool H Beam Conrods?
The Spool H Beam Conrods come standard with ARP2000 bolts, which should be torqued to approximately 55 ft-lb using ARP Ultra-Torque lubricant for 3/8" bolts. If you opt for the L19 upgrade, follow the stretch method rather than torque, aiming for 0.0060"–0.0065".
Are the Cometic MLS head gaskets suitable for high boost applications?
Yes, the Cometic MLS head gaskets included in this kit are designed to handle high boost applications, making them suitable for turbocharged or supercharged setups. Ensure that the cylinder head and block surfaces have the correct RA finish for optimal sealing.
What is the significance of the -11.3cc dish volume in the Ross Pistons?
The -11.3cc dish volume in the Ross Pistons helps to reduce the compression ratio, which is beneficial for supercharged applications. This allows for better detonation resistance and tuning flexibility, especially when running higher boost levels.
Do I need to perform any specific machining on the conrods or pistons before installation?
Yes, the conrods may require big-end or small-end honing to ensure proper fitment due to variations in journal and pin sizes. Additionally, the pistons will need to be fitted with the correct bore clearance and ring gaps set by the engine builder for optimal performance.
