Toyota JZ Oil Pump Bracket
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

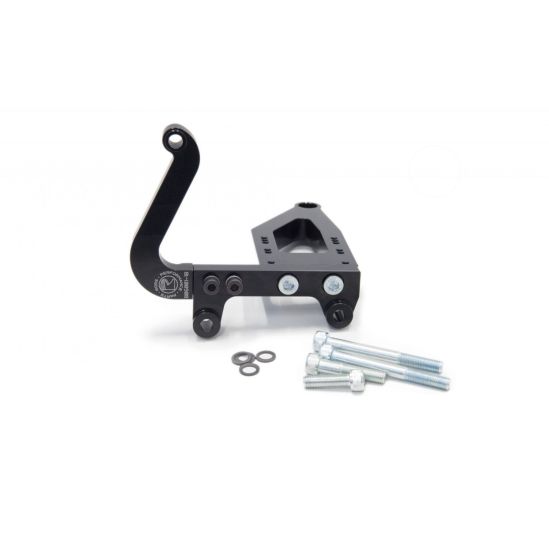

Toyota 1JZ / 2JZ Billet External Oil Pump Bracket - Left Hand Mounting
- Designed in house using CMM technology, 3D modelling and FEA (Finite Element Analysis) to ensure perfect fitment and rigidity
- Precision machined from aerospace grade aluminium on multi-axis CNC machines
- Anodized gloss black for corrosion resistance
- Uses grade 10.9 or better hardware
| Product Name | Toyota JZ Oil Pump Bracket |
|---|---|
| Brands | Ross Performance |
| Engine | 1JZ, 2JZ |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
When should I upgrade the oil pump or gears?
High rpm, high boost or track use normally justify upgrading the pump or billet gears, especially on engines known for oil pump weakness.
Do I need an oil restrictor or head drain?
Some DOHC turbo engines benefit from a restrictor and head drain to control oil pooling at high rpm. Whether you need one depends on your build.
What is the purpose of the Toyota JZ Oil Pump Bracket?
The Toyota JZ Oil Pump Bracket is designed to securely mount an Aviaid external oil pump to the left-hand side of the Toyota 1JZ or 2JZ engine. It allows for optimal positioning of the oil pump while utilising the existing mounting holes of the air conditioning compressor.
What modifications are required for installation?
To install the oil pump bracket, the air conditioning compressor must be removed from the engine. Ensure that you have the appropriate tools to safely detach the compressor and install the bracket in its place.
What materials are used in the construction of the bracket?
The bracket is precision machined from aerospace-grade aluminium, ensuring high strength and durability. It is also anodized in gloss black for enhanced corrosion resistance.
What type of oil pumps is this bracket compatible with?
This bracket is compatible with the 1-5 stage Aviaid oil pump range specifically designed for Toyota 1JZ and 2JZ engines, providing flexibility for various performance applications.
Does the bracket come with mounting hardware?
Yes, the bracket is designed to use grade 10.9 or better hardware, ensuring a secure and reliable installation. Always check that the hardware is properly torqued to specifications during installation.
