Spool Toyota 1JZ-GTE 2.7 Litre Stroker Kit
We carry a limited range of pistons for this kit in stock. If we don't have your exact requirements it will take 6-8 weeks to have pistons made.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
Spool Toyota 1JZ-GTE 2.7L Stroker Kit

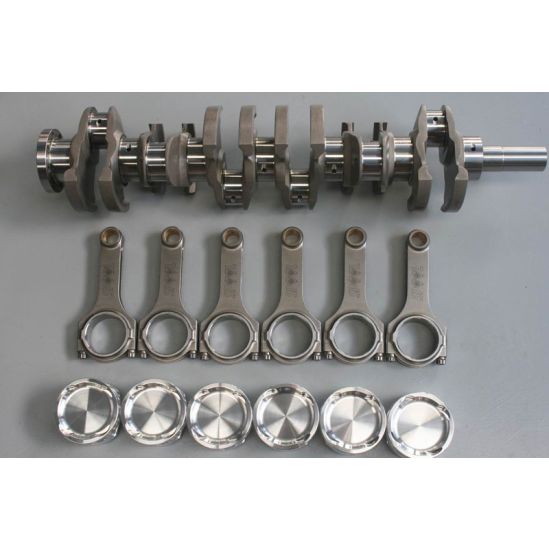

This kit includes:
- Spool Billet 4340 76mm Stroker Crankshaft
- Spool H Beam Forged Connecting Rods with ARP-2000 Bolts (ARP L19 Bolts available as an upgrade)
- CP Custom Pistons with rings pins and locks. Pistons can be ordered in any bore size, any compression ratio and to suit turbo or naturally aspirated applications.
- 9310 0.200" Gudgeon Pins standard (0.250" Pins available as an upgrade)
Full billet 4340 Nitrided and Balanced Crankshaft
With the increased cubic capacity from the 76mm stroker crank, increases of up to 50% in torque and low to mid range power are achievable. Boost will come on earlier in the rev range and peak power will increase.
Note: If conrod to block interference occurs, slight clearancing may be required.
| Product Name | Spool Toyota 1JZ-GTE 2.7 Litre Stroker Kit |
|---|---|
| Brands | Spool |
| Engine | 1JZ-GTE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
If you are outside of Australia, you are responsible for any duty or taxes charged by your government."
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the benefits of using the Spool 1JZ-GTE Stroker Kit?
The Spool 1JZ-GTE 2.7L Stroker Kit increases cubic capacity with a 76mm crankshaft, which can lead to significant improvements in torque and low to mid-range power. This setup allows for earlier boost onset and higher peak power, making it ideal for performance applications.
What machining is required for the Spool 1JZ-GTE Stroker Kit?
When installing the stroker kit, you may need to perform clearancing on the conrods to prevent interference with the block. Additionally, ensure that the pistons are ordered with the correct bore size and compression ratio, and that the engine builder sets the appropriate ring gaps.
Can I customise the pistons in the Spool 1JZ-GTE Stroker Kit?
Yes, the CP Custom Pistons in this kit can be ordered in any bore size and compression ratio, tailored for either turbocharged or naturally aspirated applications. However, if your specific requirements are not in stock, it may take 6-8 weeks for custom pistons to be manufactured.
What type of connecting rods are included in the Spool 1JZ-GTE Stroker Kit?
The kit includes Spool H Beam Forged Connecting Rods fitted with ARP-2000 bolts as standard. For enhanced performance, ARP L19 bolts are available as an upgrade, which should be tightened by stretch rather than torque.
What is the standard gudgeon pin size for the Spool 1JZ-GTE Stroker Kit?
The kit comes standard with 9310 0.200" gudgeon pins. If required, 0.250" pins can be ordered as an upgrade to suit specific performance needs.
