Toyota 1UZ-FE Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons 10.5:1 (Non VVT-i)
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

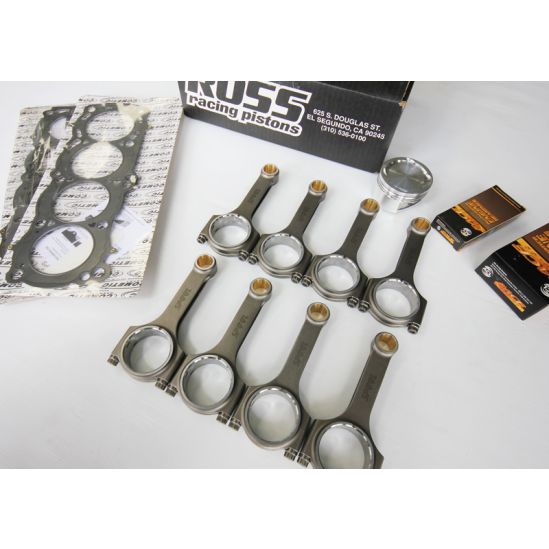

This Rebuild Kit includes the following quality parts:
- Spool Forged H Beam Conrods with 7/16 ARP 2000 Fasteners
- Ross Forged Pistons (Rings, Pins and Locks Included)
- 2 x Cometic MLS Head Gasket
- ACL Race Series Main Bearings
- ACL Race Series Big End Bearings
Pistons are available in:
- All Ross Racing Pistons are made in the USA
- Compression Ratio: 10.5:1
- Bore Sizes: + 0.5mm (88mm)
- Pistons come with rings, gudgeon pins and pin locks
- Forged 2618
Spool Connecting Rods Feature:
- ARP 2000 fasteners (L19 fasteners are available as an upgrade)
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets +/- 1 gram
- Vacuum degassed to remove impurities

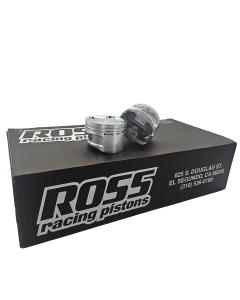

Ross Racing Pistons:
All of Ross Racing Pistons (since 1985) have been forged from 2618 billet bar stock and have been heat treated and aged to a T61 condition (2618-T61). 2618-T61 is the material that is used when fatigue resistance and durability are of prime importance by all premium racing piston manufacturers.
Note: We recommend Joe Gibbs Break in Oil for all new engines.
| Product Name | Toyota 1UZ-FE Rebuild Kit with Spool H Beam Conrods and Ross Racing Forged Pistons 10.5:1 (Non VVT-i) |
|---|---|
| Brands | Spool |
| Engine | 1UZ-FE |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What is included in a typical Spool engine kit?
Kits usually include pistons, rings, rods, bearings and related hardware depending on the engine family. Check the listing for exact inclusions.
Do I still need machining with a full engine kit?
Yes. The block must be honed and all clearances checked and set by your builder. Assembly should only occur after full measurement and verification.
What are the recommended torque specifications for the ARP 2000 bolts included in the Spool H Beam Conrods?
For the 7/16 ARP 2000 bolts used in the Spool H Beam Conrods, the recommended torque specification is around 75 ft-lb when using ARP Ultra-Torque lubricant. Always refer to ARP's latest instructions for the most accurate guidance.
What is the ideal bore clearance for the Ross Racing Forged Pistons in this rebuild kit?
The ideal bore clearance for the Ross Racing Forged Pistons should be determined by the engine builder based on the specific application and conditions. Typically, a clearance of 0.0015" to 0.0025" is common for forged pistons, but always consult the manufacturer's recommendations and consider factors like thermal expansion.
Do the conrods require any specific machining before installation?
Yes, the Spool H Beam Conrods may require big-end or small-end honing to ensure proper fitment due to factory journal and pin size variations. It's essential to check clearances and perform any necessary machining for optimal performance.
What type of head gasket is included in the rebuild kit and what surface finish is required?
The rebuild kit includes Cometic MLS head gaskets. For optimal sealing, the cylinder head and block surfaces should have a correct RA surface finish, typically around 50 RA or finer, to ensure proper gasket performance.
What compression ratio do the Ross Racing Pistons in this kit provide?
The Ross Racing Pistons included in this rebuild kit provide a compression ratio of 10.5:1. This ratio is suitable for performance applications, but ensure that your engine's tuning and fuel quality can support it for reliable operation.
