Toyota 1FZ-FE Rebuild Kit with Spool H Beam Conrods and Custom CP Forged Pistons

USD$2,255.91
In stock
SKU
REB-1FZ-H-CP
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Toyota 1FZ-FE Rebuild Kit with Custom CP Forged Pistons

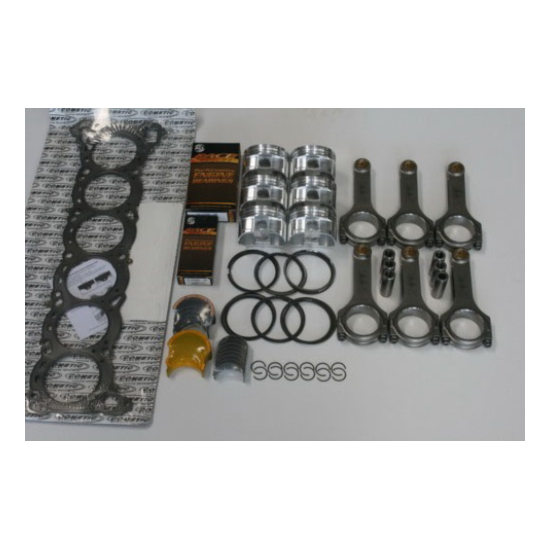

This Rebuild Kit includes the following quality parts:

  • Spool Forged H Beam Conrods (ARP 2000 bolts)
  • Custom CP Forged Pistons +0.5mm / 9.0:1 (Rings, Pins and Locks Included)
  • Cometic MLS Head Gasket
  • ACL Race Series Main Bearings - STD or 0.25mm
  • ACL Race Series Big End Bearings - STD or 0.25mm
These Pistons are custom made for Spool and rated at 1000hp plus by CP Pistons.
  • Compression Ratio:9.0:1
  • Bore Sizes: +0.5mm
  • Gudgeon Pins
  • Forged 2618
  • Locks

Spool Connecting Rods Feature:

  • ARP 2000 7/16 fasteners (L19 fasteners are available as an upgrade)
  • High tensile 4340 forged steel
  • 2 Piece forging
  • Hardness of HRC36-42
  • Dowelled caps for precision alignment
  • X-RAY & Sonic tested
  • Quenching and heat treated
  • Shot peened
  • 100% Magnafluxed
  • Weight Matched Sets +/- 1 gram
  • Vacuum degassed to remove impurities

Product images are for description purposes only. Actual product may vary.

Shipping calculations available at checkout. If you are unsure get in touch with sales@spoolimports.com

More Information
Product Name Toyota 1FZ-FE Rebuild Kit with Spool H Beam Conrods and Custom CP Forged Pistons
Brands Spool
Engine 1FZ-FE
Make Toyota
