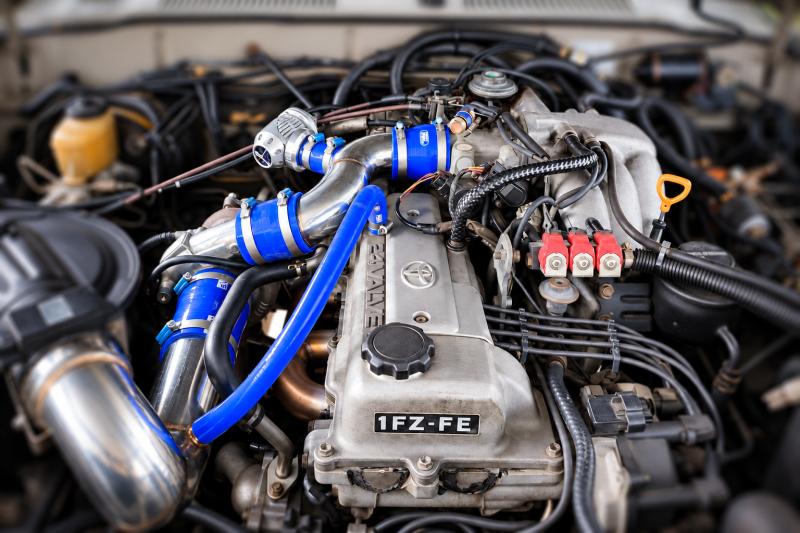

A turbocharged Toyota 1FZ-FE needs a head gasket and fasteners that can maintain their seal as cylinder pressure increases. Forged pistons and stronger conrods are important parts of a performance build, but the head-to-block joint deserves just as much attention.
At Spool Imports, we have developed our 1FZ range around those needs. Alongside Cometic MLS head gaskets, we offer a Spool-exclusive Athena Cut Ring gasket developed specifically for this engine, custom ARP2000 head studs manufactured for us by ARP, and 8740 and CA625+ stud options. Our full gasket set excludes the head gasket, so you can select the sealing combination your build requires without paying for a gasket you will not use.
Why can a boosted 1FZ blow a head gasket?
Boosted 1FZ owners and builders have reported head-gasket sealing problems, including failures with upgraded studs already installed. These reports highlight the need to consider the gasket and fasteners together. They do not establish a single boost pressure at which every 1FZ will fail.
The important load is combustion pressure inside the cylinder. Boost increases the air available for combustion, but the resulting pressure also depends on fuel, ignition timing, compression ratio, cylinder filling and operating conditions. Two engines running the same boost can place different demands on their head gaskets.
Excessive cylinder pressure can cause local movement or distortion at the head-to-block joint, reducing the sealing load around a cylinder. Often described as head lift, this can allow combustion gases past the gasket and damage its seal. Detonation and pre-ignition can make that loading much more severe.
Previous overheating, distorted surfaces and incorrect fastener installation can also compromise the joint. Before replacing a failed gasket, establish why it failed. A stronger gasket cannot correct a damaged head, inadequate cooling or a tune that produces detonation.
Cometic MLS: an established option for performance 1FZ builds
The Cometic 1FZ-FE MLS head gasket is commonly used in high-horsepower builds. Its multilayer stainless steel construction uses embossed, coated outer layers to seal the combustion chambers and fluid passages.
Correct surface preparation is essential. Cometic recommends a surface finish of 50 Ra or finer, together with flat, true head and block surfaces. Its MLS gaskets install dry; adding sealant can interfere with their coating. See Cometic's installation and surface-finish guidance.
Our listed 1FZ Cometic gasket has a 101.5 mm gasket bore and 1.34 mm thickness. The engine builder must check these dimensions against the finished engine bore and required clearances.
Spool-exclusive Athena Cut Ring: developed for demanding 1FZ builds
To address the sealing challenges encountered in boosted 1FZ builds, we worked with Athena to develop a dedicated 1FZ-FE Cut Ring head gasket, exclusive to Spool Imports.
This design uses separate stainless steel cut rings around the cylinders to provide the combustion seal. The reinforced gasket body incorporates sealing beads around the oil and coolant passages. It gives builders an alternative to MLS construction when selecting a sealing system for demanding applications.
The Spool-exclusive Athena gasket has a 102.5 mm gasket bore and 1.5 mm thickness. No additional ring grooves need to be machined into the head or block for installation. However, both surfaces still require inspection and preparation; distortion or damage may require machining.
The Athena gasket provides a different combustion-sealing approach. Selecting between it and Cometic should account for the engine's condition, bore, compression and intended use, rather than assuming one gasket suits every build.
| Option | Construction | Listed dimensions |
|---|---|---|
| Cometic MLS | Multilayer stainless steel | 101.5 mm gasket bore; 1.34 mm thickness |
| Spool-exclusive Athena Cut Ring | Reinforced gasket body with separate stainless steel combustion rings | 102.5 mm gasket bore; 1.5 mm thickness |
Gasket bore is not the same as engine bore. Check clearance around the finished cylinders. Gasket thickness also affects compression ratio and piston-to-head clearance, so these options should not be treated as dimensionally identical substitutes.
Why head studs matter
The head gasket needs sufficient, consistent clamping load to maintain its seal. Upgraded studs provide an important part of that system, but the installed preload depends on the fastener design, material, lubricant and tightening procedure.
ARP does not catalogue a dedicated 1FZ head-stud kit. Its 1JZ/2JZ head studs are a direct fit for the 1FZ-FE, providing an established route to upgraded fasteners. The standard JZ choices are 8740 and Custom Age 625+, leaving a gap for builders wanting ARP2000.
Custom ARP2000 studs manufactured for Spool
We commissioned ARP to manufacture custom ARP2000 head studs for us to fill that gap. These are genuine ARP-manufactured fasteners, packaged by Spool for the 1FZ application.
We also source individual 8740 fasteners from ARP and package them as a 1FZ set. Together with the CA625+ option, this gives customers three material choices:
- ARP 8740 1FZ head studs — the entry point in our upgraded stud range.
- Custom ARP2000 1FZ head studs — a higher-strength material option between 8740 and CA625+.
- ARP Custom Age 625+ 1FZ head studs — the premium material option for particularly demanding builds.
ARP's material specifications explain the differences between these alloys. Higher material strength permits greater fastener loading when the complete assembly and specified procedure support it. It does not automatically create more clamp load at the same torque, or justify exceeding the supplied torque specification.
A full gasket set without an unwanted head gasket
Many full gasket sets include a head gasket that a performance builder immediately replaces. Our Spool 1FZ-FE full gasket set for 80 and 100 Series LandCruisers deliberately excludes it.
Combine the full gasket set with your chosen Cometic MLS or Athena Cut Ring head gasket and the appropriate head studs. You select the head gasket for the engine being built and avoid buying an included gasket you will not use.
Assembly details that protect your investment
- Inspect the head and block. Check flatness, surface condition and signs of previous overheating. Investigate cracks or other damage where indicated.
- Prepare surfaces for the selected gasket. Follow its manufacturer requirements rather than assuming a finish suitable for the original gasket suits the replacement.
- Check dimensions. Confirm gasket bore, thickness, compression ratio and piston-to-head clearance against the assembled engine.
- Install the studs correctly. Check thread engagement, washer seating and clearance. Use the lubricant, tightening sequence and torque procedure specified for the exact stud package.
- Check the supporting systems. Validate fuel delivery, ignition calibration, charge cooling and engine cooling for the intended load.
Use the installation instructions supplied with your specific gasket and stud set, including any required follow-up checks. Do not transfer a torque figure from a different stud material or use extra torque as a substitute for finding a sealing problem.
Part of Spool's wider 1FZ development
Our investment in the 1FZ extends beyond head sealing. The range includes custom CP forged pistons made for Spool, Spool conrods, a 101 mm stroke billet 4340 crankshaft, stroker kits and Kelford camshafts.
These components need to be selected together. Piston specification and gasket thickness affect compression and clearance; a stroker combination requires dimensional checks; camshaft selection needs to match the intended operating range and valvetrain.
Explore our Toyota 1FZ-FE performance range or speak with Spool about the parts for your build. Tell us the finished bore, proposed combination, fuel and intended use so we can help you select the relevant gasket and fastener options.
Frequently asked questions
Will head studs alone stop a boosted 1FZ blowing its head gasket?
No. Head studs are one part of the sealing system. The gasket, surface preparation, engine condition, cooling and tune must also suit the operating conditions.
Do 1JZ/2JZ ARP head studs fit the 1FZ-FE?
Yes. The 1JZ/2JZ ARP head studs are a direct fit for the 1FZ-FE. Use the installation procedure supplied for your 1FZ stud package.
Why does Spool offer custom ARP2000 1FZ head studs?
Spool commissioned ARP to manufacture ARP2000 studs to fill the material gap between the standard 8740 and CA625+ JZ options. Spool packages these genuine ARP fasteners for the 1FZ application.
Does the Athena 1FZ Cut Ring gasket require ring grooves?
No. The Spool-exclusive Athena 1FZ Cut Ring gasket does not require additional ring grooves in the head or block. Normal inspection and any necessary corrective surface machining still apply.
Does the Spool 1FZ full gasket set include a head gasket?
No. The Spool full gasket set suits 1FZ-FE applications in 80 and 100 Series LandCruisers and excludes the head gasket, allowing you to select Cometic MLS or Athena Cut Ring separately without an unwanted gasket.
What boost pressure is safe for a 1FZ head gasket?
There is no universal safe boost figure. Cylinder pressure, fuel, ignition timing, compression, engine condition, gasket choice and installed fastener preload all affect sealing reliability.
