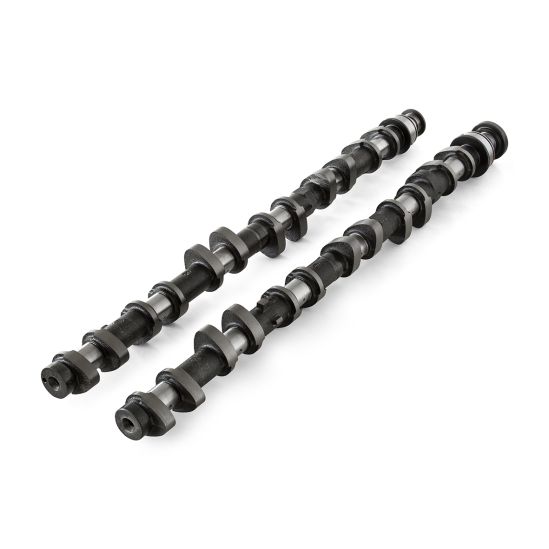

Kelford Cams - suit Toyota 1FZ-FE 225-B (270)

Description:

270/270 Degrees advertised duration. 9.65mm/9.65mm lift.

USD$1,011.82
In stock
SKU
225-B
+ -

Add to Wish List Share

Copy Link

For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.

Additional Information:

Stage 2 cams to suit mildly modified engines.



Engine Make: Engine Model: Part Number:
TOYOTA 1FZ-FE 225-B
Valve Clearance: Intake: 0.25mm Set COLD at the CAM
  Exhaust: 0.30mm Set COLD at the CAM

Cam Lift:   Intake: 9.90mm Exhaust: 9.95mm
Rocker Ratio:   Intake: 1 Exhaust: 1
Nett Valve Lift:   Intake: 9.65mm Exhaust: 9.65mm
Advertised Duration @ 0.10mm Intake: 270 Exhaust: 270
Duration @ 1.00mm VALVE LIFT Intake: 232 Exhaust: 232
Timing @ 1.00mm VALVE LIFT IVO: 9 BTDC EVO: 43 BBDC
    IVC: 43 ABDC EVC: 9 ATDC
Suggested Centre Lines:   Intake: 107 Exhaust: 107
VALVE Lift @ TDC Intake: 1.94mm Exhaust: 1.96



More Information
Product Name Kelford Cams - suit Toyota 1FZ-FE 225-B (270)
Brands Spool
Engine 1FZ-FE
Make Toyota
