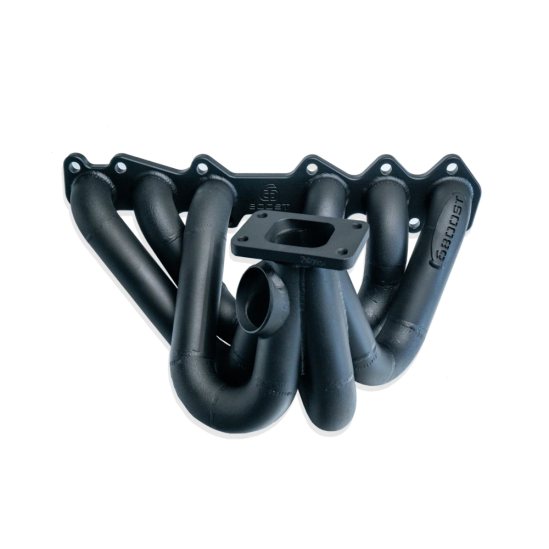

6 Boost Manifold - Suit 1JZGTE
6Boost offers a wide variety of customisable options for their manifolds to ensure you get the exact specifications you need. Because of this high level of customisation, keeping every variation in stock is impractical.
Please note: All 6Boost Manifolds are made to order.
Current manufacturing lead times range from 2 to 6 weeks, depending on 6Boost's current production schedule and slot availability.
If you require this item urgently, we highly recommend contacting us to confirm the current lead time before placing your order.
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
6 Boost Manifold - Suit 1JZGTE
Option Available
| SKU - PART NUMBER | FLANGE CONFIGURATION | |
| #1JZ_T3-50_1 | T3/50 'OPEN ENTRY' Single 50mm Wastegate Port | No Extra Cost |
| #1JZ_T3-NIL_1 | T3/NIL 'OPEN ENTRY' to suit IWG | No Extra Cost |
| #1JZ_T3-50_LUX_1 | T3/50 'OPEN ENTRY' Wastegate Port to suit Hilux (RN85 Onwards) | No Extra Cost |
| #1JZ_T3-50_DE_1 | T3/50 'DIVIDED ENTRY' Single 50mm Wastegate Port | Extra cost |
| #1JZ_T3-2x40_DE_1 | T3/2x40 'DIVIDED ENTRY' Twin 40mm Wastegate Ports | Extra cost |
| #1JZ_T4-50_DE_1 | T4/50 'DIVIDED ENTRY' Single 50mm Wastegate Port | Extra cost |
| #1JZ_T4-2x40_DE_1 | T4/2x40 'DIVIDED ENTRY' Twin 40mm Wastegate Ports | Extra cost |
| #1JZ_VBG-50_1 | V-BAND(GARRETT G25/30/35)/50 Single 50mm Wastegate Port | Extra cost |
| #1JZ_VBG-NIL_1 | V-BAND(GARRETT G25/30/35) to suit IWG | Extra cost |
| #1JZ_VBT-50_1 | V-BAND(TIAL GT28/30/35)/50 Single 50mm Wastegate Port | Extra cost |
| #1JZ_VBP-50_1 | V-BAND(PRECISION PT55-67)/50 Single 50mm Wastegate Port | Extra cost |
| #1JZ_FPPM_VBG-50_1 | Forward Position Pro Mod V-BAND(GARRETT G40/42/45)/50 "FPPM"Single 50mm Wastegate Port | Extra cost |
| #1JZ_FPPM_VBP-50_1 | Forward Position Pro Mod V-BAND(PRECISION PT68-76)/50 "FPPM"Single 50mm Wastegate Port "Non Sportsman" 3.625" | Extra cost |
| #1JZ_FPPM_VBP-50_2 | Forward Position Pro Mod V-BAND(PRECISION PT76-85)/50 "FPPM"Single 50mm Wastegate Port "Sportsman" 3.805" | Extra cost |
All 6boost Manifolds are supplied with studs, nuts, and turbo gasket where applicable.
Product images are for description purposes only. Actual product may vary.
Shipping calculations are available at checkout. If you are unsure get in touch with [email protected]
| Product Name | 6 Boost Manifold - Suit 1JZGTE |
|---|---|
| Brands | 6 Boost |
| Engine | 1JZ |
| Make | Toyota |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
How do I choose the right turbo size?
Turbo selection depends on engine size, boost target, rpm range and desired response. A smaller turbo spools faster; a larger turbo supports more top-end power.
Why is wastegate placement important?
Poor placement or sizing can cause boost creep or unstable boost control.
What flange configurations are available for the 6 Boost Manifold - Suit 1JZGTE?
The 6 Boost Manifold for the 1JZGTE is available in several flange configurations including T3/50 with a single 50mm wastegate port, T3/NIL for internal wastegates, and various T4 options. There are also V-band configurations for different turbo models. Be sure to select the configuration that matches your turbo setup.
Does the 6 Boost Manifold come with installation hardware?
Yes, the 6 Boost Manifold is supplied with studs, nuts, and a turbo gasket where applicable. Ensure you have the necessary tools and follow proper installation procedures for a secure fit.
What are the common uses for the 6 Boost Manifold on a 1JZGTE engine?
This manifold is designed for performance applications, typically used in modified 1JZGTE setups aiming for increased boost and power. It is suitable for both street and track use, depending on the turbocharger and tuning.
Are there any specific machining requirements for the 6 Boost Manifold?
While the manifold itself is designed for direct fitment, ensure that your engine's mounting surfaces are clean and flat. It may be necessary to check for any alignment issues with the turbo and wastegate ports during installation.
What should I consider regarding boost levels when using the 6 Boost Manifold?
The manifold can handle significant boost levels, but reliability will depend on your overall engine build, including tuning, fuel quality, and supporting modifications. Always monitor your engine parameters to ensure safe operation.
