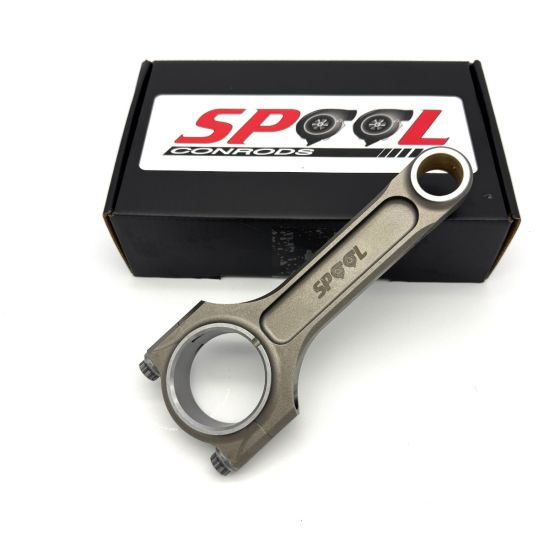

Spool Mitsubishi 4G63 DragPro I-Beam Conrods with 7/16 Bolts
For shipping cost -add all the products you would like, then navigate to the shopping cart to calculate shipping quote.
These are a direct fit conrod for most Mitsubish EVO 4G63 engines
All engines that have the following specs
- 150mm c/c
- 22mm pin
- 48mm b/e tunnel
All Spool Drag Pro Conrods come standard with 7/16 ARP 2000 Fasteners
Spool Drag Pro I Beam connecting rods are the ultimate high strength direct fit conrod for Mitsubishi 4G63 engines.
New features:
- Upgraded ARP2000 7/16 bolts
- Increased strength to the beam
- Increased strength around the fasteners / bolts
- Increased strength around the gudgeon pin
These conrods are designed to handle the most extreme punishment from the angriest Evo engines.
These conrods feature:
- High tensile 4340 forged steel
- 2 Piece forging
- Hardness of HRC36-42
- Dowelled caps for precision alignment
- X-RAY & Sonic tested
- Quenching and heat treated
- Shot peened
- 100% Magnafluxed
- Weight Matched Sets + - 1 gram
- Vacuum degassed to remove impurities.
- Side oil squirters
ARP L19 bolt upgrade option available.
No bearings are included.
We have customers making over 1000 RWHP with Spool Conrods, check out the project cars here.
| Product Name | Spool Mitsubishi 4G63 DragPro I-Beam Conrods with 7/16 Bolts |
|---|---|
| Brands | Spool |
| Engine | 4G63 |
| Make | Mitsubishi |
Delivery & Freight
We are an Australian-based company that ships items nationally and internationally, usually within 48 hours of receiving your order. High-value items shipped internationally are sent via DHL Express, while lower-value items are sent via Australia Post Express unless otherwise instructed.
You can calculate shipping rates inside the shopping cart. After adding all the products you would like, navigate to the cart and click the ESTIMATE SHIPPING & TAX link. .
If you only see the Click and Collect shipping option, it means that your address was not validated correctly.
If you have issues calculating freight, please get in touch. We are happy to help.
Disclaimer:
Product images are for description purposes only. Actual product may vary.
Shipping calculations available at checkout.
If you are unsure, get in touch by emailing [email protected], messaging us on Facebook, or phoning us at +61 7 5645 1333 (8am to 2pm AET).
What bolts do these conrods use and how should I tighten them?
These rods use ARP conrod bolts, usually ARP2000 as standard with L19 or CA625+ available on some models. ARP2000 bolts are generally torqued to around 55 ft-lb for 3/8 inch and around 75 ft-lb for 7/16 inch when using ARP Ultra-Torque lube. L19 bolts must be tightened by stretch, not torque. Always refer to the latest ARP instructions for exact specifications.
Do these conrods have a horsepower rating or warranty?
No. Like other performance rods, they do not carry a horsepower or performance warranty. Spool warrants workmanship before installation, but once fitted, power handling depends entirely on machining, clearances, tuning, fuel, boost level and rpm.
Do the big end and small end need machining?
They often do. Crank journals and pin bores vary between engines, so your builder should measure the big end oil clearance and small end pin clearance and hone as required before assembly.
What are the specific dimensions for the Spool Mitsubishi 4G63 DragPro I-Beam Conrods?
These conrods are designed for Mitsubishi 4G63 engines with a centre-to-centre length of 150mm, a pin size of 22mm, and a big-end tunnel diameter of 48mm.
What materials and treatments are used in the construction of these conrods?
The Spool DragPro I-Beam conrods are made from high tensile 4340 forged steel, feature a two-piece forging, and undergo processes such as quenching, heat treatment, shot peening, and are 100% Magnafluxed to ensure integrity.
Are there any specific machining requirements for these conrods?
While the conrods are a direct fit for the specified engines, it is advisable to check the big-end and small-end for proper clearances and honing as necessary to ensure optimal performance.
Can I upgrade the bolts on these conrods?
Yes, there is an option to upgrade to ARP L19 bolts, which provide additional strength and reliability for high-performance applications.
What is the weight tolerance for the Spool 4G63 conrod sets?
The conrod sets are weight matched to within ±1 gram, ensuring consistency across all rods in the set for balanced performance.
