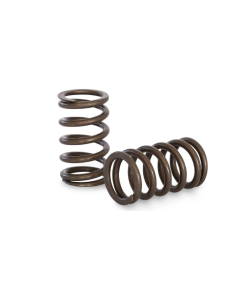

Performance Springs Mitsubishi Evo 4G63 PACALOY Beehive Valve Spring, Retainer & Shim Kit (Evo 1–9)

This PVS Single PACALOY™ Ovate Beehive Valve Spring, Titanium Retainer and Shim Kit is engineered specifically for Mitsubishi 4G63 engines fitted to Lancer Evolution models 1 through 9, offering improved valve control and reliability in high-performance applications.

Manufactured in the USA, these PACALOY™ beehive valve springs use an ovate single-spring design to minimise harmonic instability while maintaining consistent spring pressure throughout the lift range. Compared to conventional dual spring setups, the beehive configuration reduces valvetrain mass, improving engine response and stability at higher RPM.

The kit includes lightweight titanium retainers to further reduce reciprocating weight, along with precision shims to ensure correct installed height. For proper fitment, the factory shim must be removed and replaced only with the supplied shim included in this kit. This is critical to achieving the correct seat pressure and installed height.

This valve spring package is well suited to performance camshaft applications in naturally aspirated and forced-induction 4G63 builds where reliable valve control is essential.

Key Features

• PACALOY™ ovate beehive valve spring design

• Manufactured in the USA

• Improved valve control and reduced harmonic resonance

• Lightweight titanium retainers included

• Precision shims supplied for correct installed height

• Single spring configuration for reduced valvetrain mass

Spring Specifications

• Installed Height: 1.500”

• Seat Pressure: 95 lbs

• Pressure @ 0.500” (12.7mm) Lift: 235 lbs

• Coil Bind Height: 0.895” (22.7mm)

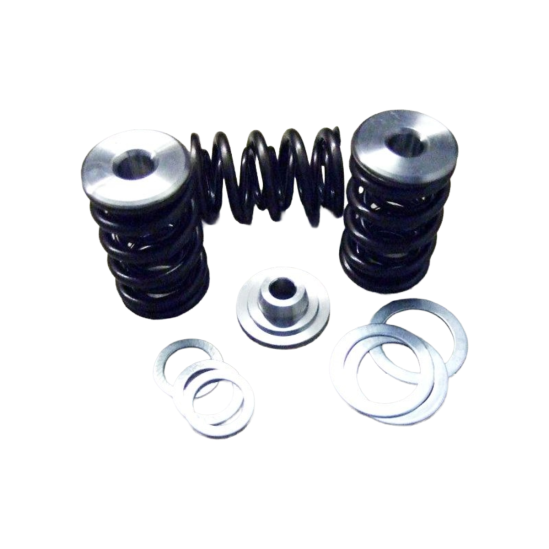

Kit Contents

• 16 × PVS single PACALOY™ beehive valve springs

• 16 × Titanium valve spring retainers

• 16 × Valve spring shims

Fitment & Installation Notes

• Applicable Engines: Mitsubishi 4G63

• Vehicles: Mitsubishi Lancer Evolution I–IX

• Factory valve spring shim must be removed

• Fit only the supplied shim from this kit
